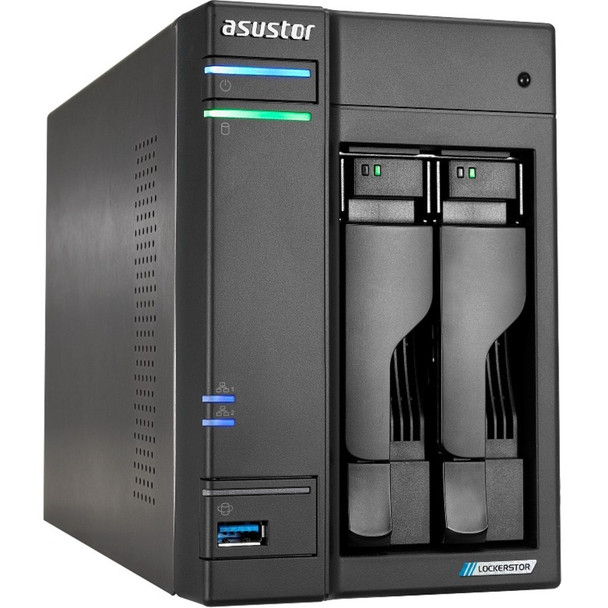

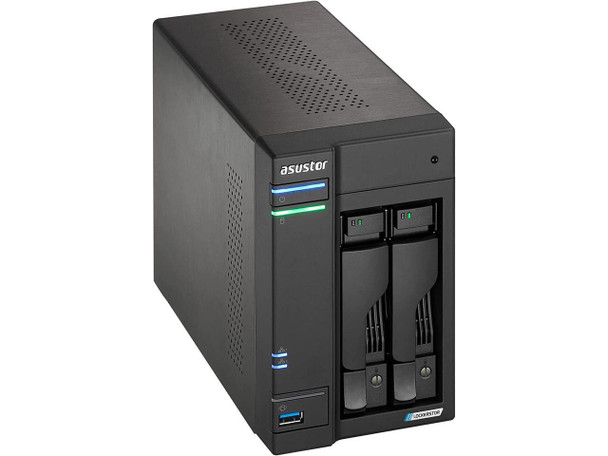

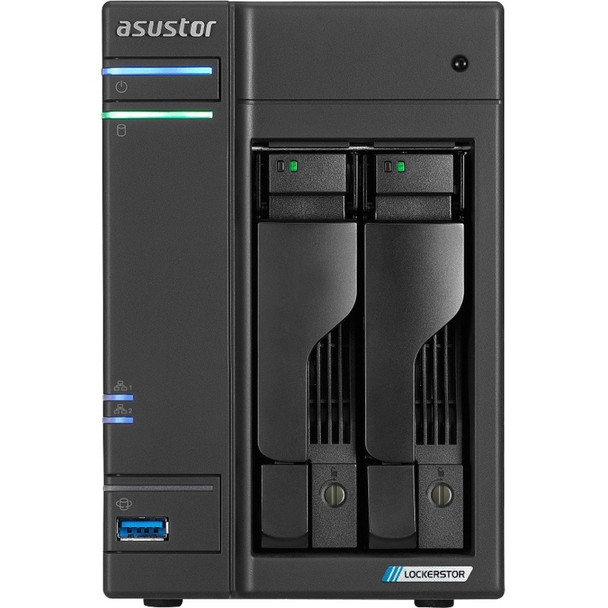

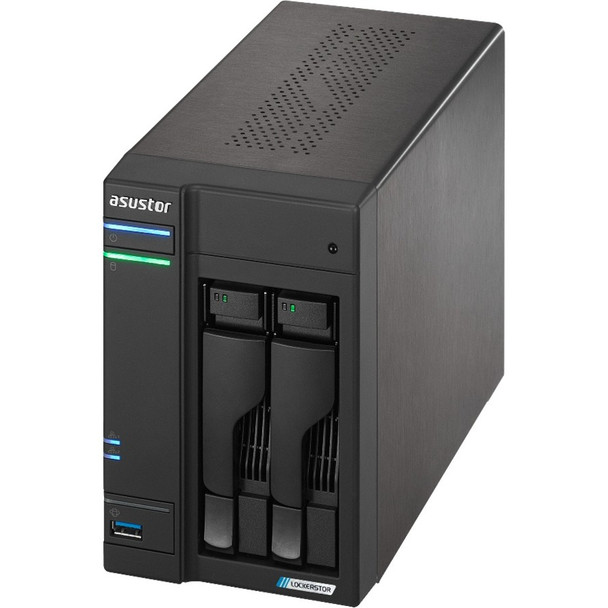

ASUSTOR Lockerstor 2 AS6702T SAN/NAS Storage System

This item is brand-new, factory sealed.

Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors

The Lockerstor Gen2 comes with Intels newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

* Lockerstor 2 Gen2 (AS6702T) 10GbE not supported.



Four M.2 Slots - Have Your Cake and Eat it Too

The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.



Keeping Cool

With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.



Tool-Free M.2 SSD Installation

Uses latches instead of screws for easier installation.



2.5 + 2.5 = Extreme Speeds

The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But thats not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.Hardware Specifications
CPU
CPU Model
Intel Celeron N5105
CPU Architecture
x64 64-bit
CPU Frequency
Quad-Core 2.0GHz (burst up 2.90 GHz)

Memory
Memory
4GB SO-DIMM DDR4
Memory Module Pre-installed
4GB (1x 4GB)
Total Memory Slots
2
Memory Expandable up to
16GB (2x 8GB)
Support mixed capacity
Youtube
Flash Memory
8GB eMMCStorage
Drive Bays
2
M.2 Drive Slots
4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit
10
Supports Hot Swappable Drives

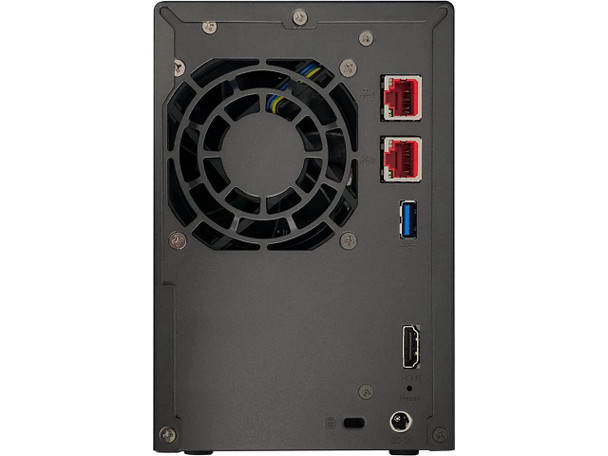

YesExternal Ports
Expansion
2x USB 3.2 Gen 2 (10Gbps)
Network
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output
1x HDMI 2.0bOthers
System Fan
1x 70mm
Infrared Receiver
Yes
Power Supply Unit / Adapter
65W x1
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCAOperation
Power Consumption
21 W (Operation)
13.5 W (Disk Hibernation)
0.79 W (Sleep Mode)
Noise Level
17.7dB (HDD idle)
Operation Temperature
0^oC-40^oC (32^oF-104^oF)
Humidity
5% to 95% RHItem Dimension (L inchxW inchxH inch)
12 x 12 x 8

Weight
9 lbs

Warranty Information
3 Years
