ATEN HDMI HDBaseT-Lite Receiver (HDBaseT Class B)-TAA Compliant (184415)

This item is brand-new, factory sealed.

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.


HDBaseT Connectivity extends an HDMI connection over a long distance via one Cat 5e/6/6a cable

HDBaseT Anti-jamming resists signal interference during high-quality video transmission using HDBaseT technology

POH (Power over HDBaseT) supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable

Bi-directional RS-232 channel allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners

Bi-directional IR channel IR transmission is processed one direction at a time

Rack- Mountable
Video Input
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Omega
Max. Distance: 1.8 mVideo Output
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 OmegaVideo
Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock: 340 MHz
Compliance: HDMI (3D, Deep Color, 4K), HDCP Compatible, Consumer Electronics Control (CEC)
Max. Resolutions / Distance: Up to 4K at 35m (Cat 5e/6) / 40m (Cat 6a), 1080p at 60m (Cat 5e/6) / 70m (Cat 6a)
4K supported: 4096 x 2160 / 3840 x 2160 at 60Hz (4:2:0), 4096 x 2160 / 3840 x 2160 at 30Hz (4:4:4)Audio

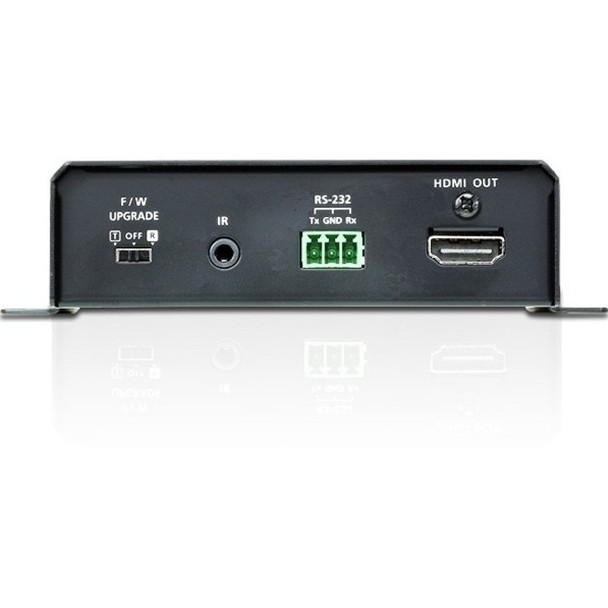

Input 1 x HDMI Type A Female (Black), Output 1 x HDMI Type A Female (Black)Control

RS-232
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR: 1 x Mini Stereo Jack Female (Black)Power
Connectors: 1 x DC Jack (Black) with locking
Consumption: DC5V, 4WEnvironmental
Operating Temperature: 0 to 50^oC
Storage Temperature: -20 to 60^oC
Humidity: 0 - 80% RH, Non-CondensingHousing
MetalItem Dimension (L inchxW inchxH inch)
10 x 3 x 7

Weight
2.00lb

Warranty Information
3 years

Package Contents:

• 1 x VE802R HDMI HDBaseT-Lite Receiver with POH
• 1 x Power Adapter
• 1 x IR Receiver
• 1 x Terminal Block
• 1 x User Instructions
