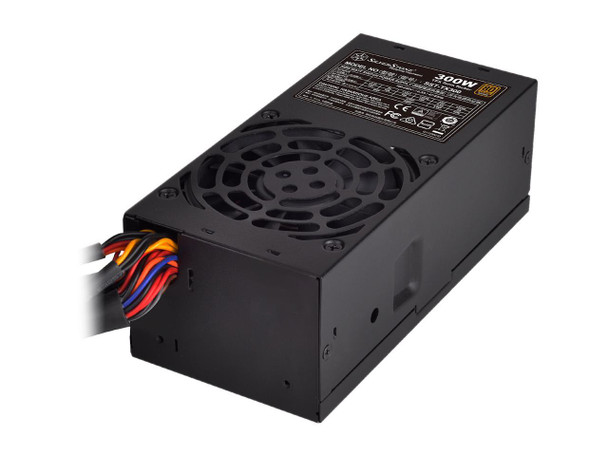

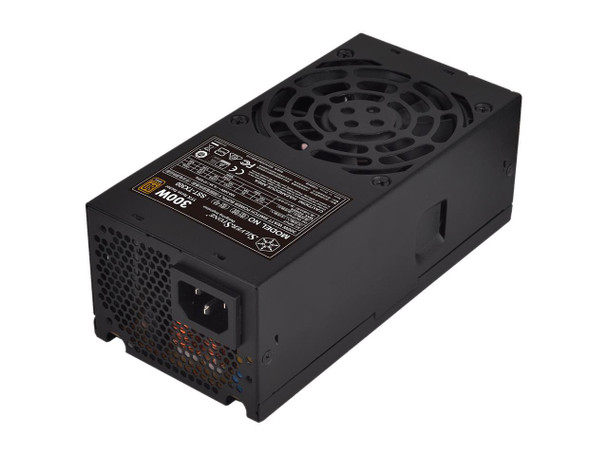

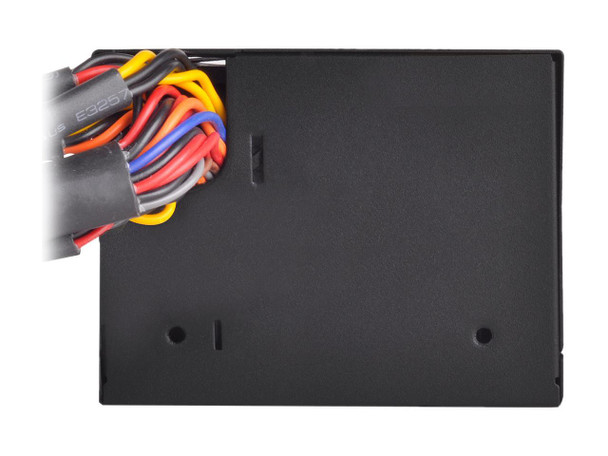

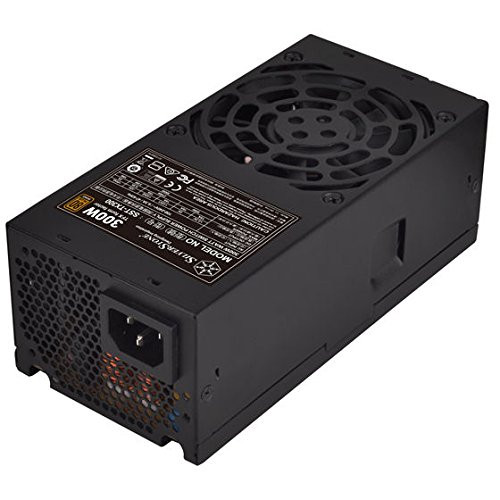

Athenatech TX300_44 300W TFX Power Supply with Fixed Cables TX300_44

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number: TX300
• Features:
  • Support standard TFX form factor
  • 300W continuous power output at 40C operating temperature rated for 24/7 operation
  • High efficiency with 80 PLUS Bronze certification
  • Silent running 80mm fan with 18 dBA minimum
  • Single PCI-E 6pin connectors support
  • Active PFC
• Output: +3.3V @ 15A, +5V @ 16A, +12V1 @ 14A, +12V2 @ 15A,  +5VSB @ 2.0A, -12V @ 0.3A
• Connectors: 1 x 24 / 20-Pin motherboard connector (350mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (450mm) 1 x 6-Pin PCIE connector (350mm) 4 x SATA connector ("350mm / 150mm" x 2) 2 x 4-Pin Peripheral connector (350mm / 150mm) 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm)
• Color : Black?Lead-Free Paint?
• Combined +3.3V & +5V : 95W
• Combined +12V : 276W
• Input Voltage : 90 ~ 264 Vrms
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC (PF>0.9 at full load)
• Efficiency : 82% ~ 85% at 20% ~ 100% loading
• MTBF : 100,000 hours
• Operating temperature : 0C ~ 40C
• Cooling System : Single 80mm silent fan
• Form factor : TFX
• Noise Level : 18 dBA minimum
• Dimension : 85 mm (W) x 65 mm (H) x 175 mm (D)3.35" (W) x 2.56" (H) x 6.89" (D)
• Weight : 1 kg
• Certification : 80 PLUS Bronze
