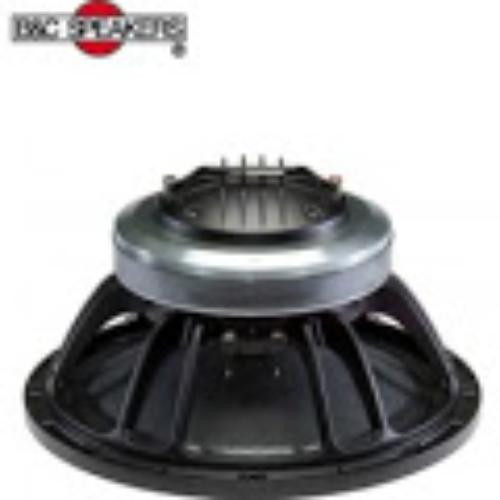

B&C 12FHX76 12 Coaxial Woofer 160 W

This item is brand-new, factory sealed.

* Nominal Diameter: 320 mm (12.0 in).
* Nominal Impedance: 8 Ohms.
* Minimum Impedance LF: 6.Ohms.
* Minimum Impedance HF: 7.8 Ohms.
* Frequency Range: 45 - 18000 Hz.
* Dispersion Angle: 160 Degrees x 40 Degrees.
* Woofer Cone Treatment: WP Waterproof Front Side.
* Magnet Material: FerriteSpecifications LF unit.
* LF Sensitivity: 98.0 dB.
* LF Nominal Power Handling: 350 W.
* LF Continuous Power Handling: 700 W.
* LF Voice Coil Diameter: 76 mm (3.0 in).
* LF Winding Material: Copper.
* LF Flux Density: 1.0 T.
* Former Material: Glass Fibre.
* Winding Depth: 16.5 mm (0.65 in).
* Magnetic Gap Depth: 8.0 mm (0.31 in)Specifications HF unit.
* HF Sensitivity: 106.0 dB.
* HF Nominal Power Handling: 80 W.
* HF Continuous Power Handling: 160 W.
* HF Voice Coil Diameter: 75 mm (3.0 in).
* HF Winding Material: Aluminium.
* HF Flux Density: 1.6 T.
* Diaphragm Material: Titanium.
* Recommended Crossover: 81.2 kHz.
* Inductance: 0.14 mHParameters.
* Resonance Frequency: 48 Hz.
* Overall Diameter: 315 mm (12.4 in).
* Bolt Circle Diameter: 298 mm (11.7 in).
* Baffle Cutout Diameter: 284 mm (11.14 in).
* Depth: 169 mm (6.65 in).
* Flange and Gasket Thickness: 13 mm (0.51 in).
* Net Weight: 8.5 kg (18.7 lb).
* Shipping Units: 1.
* Shipping Weight: 9.8 kg (21.61 lb).
* Shipping Box: 425x425x224 mm (16.73x16.73x8.82 in)
* LF recone kit: RCK12FHX768Discover more.
* MF replacement diaphragm: MMD3BTN8M
