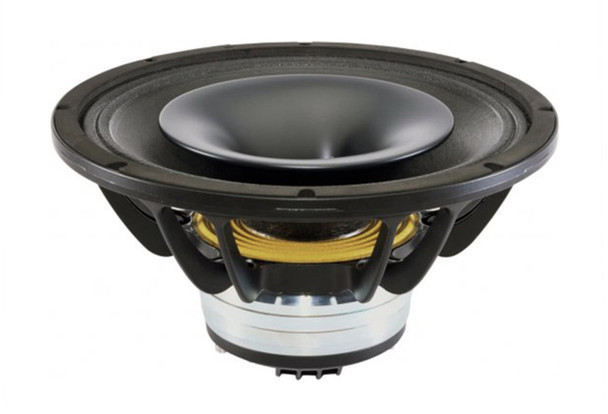

B&C 12HCX76-8 12 350w Rms Coaxial

This item is brand-new, factory sealed.

• "HIGHLIGHTS 700 W continuous program power capacity | 60x40 nominal coverage | 45 - 18000 Hz response | 99 dB sensitivity | Single Neodymium magnet assembly | Modified exponential horn flare for improved acoustic loading and controlled coverage | 33 mm (1.3) HF unit exit diameter | "
• "SPECIFICATIONS Nominal Diameter : 320 mm (12.0 in) | Nominal Impedance : 8 ? | Minimum Impedance LF : 6.7 ? | Minimum Impedance HF : 8.0 ? | Frequency Range : 45 - 18000 Hz | Dispersion Angle1 : 60x40 | Woofer Cone Treatment : WP Waterproof Front Side | Magnet Material : Neodymium Ring | "
• "SPECIFICATIONS LF UNIT LF Sensitivity2 : 99.0 dB | LF Nominal Power Handling3 : 350 W | LF Continuous Power Handling4 : 700 W | LF Voice Coil Diameter : 76 mm (3.0 in) | LF Winding Material : Copper | LF Flux Density : 1.15 T | Former Material : Glass Fibre | Winding Depth : 16.5 mm (0.65 in) | Magnetic Gap Depth : 8.0 mm (0.31 in) | "
• "SPECIFICATIONS HF UNIT HF Sensitivity5 : 107.0 dB | HF Nominal Power Handling6 : 80 W | HF Continuous Power Handling7 : 160 W | HF Voice Coil Diameter : 75 mm (3.0 in) | HF Winding Material : Aluminium | HF Flux Density : 1.9 T | Diaphragm Material : Titanium | Recommended Crossover8 : 1.2 kHz | Inductance : 0.14 mH | "
• "MOUNTING AND SHIPPING INFO Overall Diameter : 315 mm (12.4 in) | Bolt Circle Diameter : 298 mm (11.7 in) | Baffle Cutout Diameter : 283 mm (11.14 in) | Depth : 168 mm (6.6 in) | Flange and Gasket Thickness : 14 mm (0.55 in) | Net Weight : 5.2 kg (12.3 lb) | Shipping Units : 1 | Shipping Weight : 6.5 kg (14.33 lb) | Shipping Box : 425x425x224 mm (16.73x16.73x8.82 in) | "

• Product Dimensions: 16.73 x 8.82 x 16.73 inches
• Item Weight: 12.3 pounds
• Manufacturer: B&C Speakers

B&C Speakers 12HCX76-8 12-inch Coaxial 8 Ohms Impedance 350 Watts Rms 700 Watt Max Pro Audio Component Speaker Driver for Motorcycle Car || HIGHLIGHTS 700 W continuous program power capacity | 60x40 nominal coverage | 45 - 18000 Hz response | 99 dB sensitivity | Single Neodymium magnet assembly | Modified exponential horn flare for improved acoustic loading and controlled coverage | 33 mm (1.3) HF unit exit diameter | || SPECIFICATIONS Nominal Diameter : 320 mm (12.0 in) | Nominal Impedance : 8 ? | Minimum Impedance LF : 6.7 ? | Minimum Impedance HF : 8.0 ? | Frequency Range : 45 - 18000 Hz | Dispersion Angle1 : 60x40 | Woofer Cone Treatment : WP Waterproof Front Side | Magnet Material : Neodymium Ring | || SPECIFICATIONS LF UNIT LF Sensitivity2 : 99.0 dB | LF Nominal Power Handling3 : 350 W | LF Continuous Power Handling4 : 700 W | LF Voice Coil Diameter : 76 mm (3.0 in) | LF Winding Material : Copper | LF Flux Density : 1.15 T | Former Material : Glass Fibre | Winding Depth : 16.5 mm (0.65 in) | Magnetic Gap Depth : 8.0 mm (0.31 in) | || SPECIFICATIONS HF UNIT HF Sensitivity5 : 107.0 dB | HF Nominal Power Handling6 : 80 W | HF Continuous Power Handling7 : 160 W | HF Voice Coil Diameter : 75 mm (3.0 in) | HF Winding Material : Aluminium | HF Flux Density : 1.9 T | Diaphragm Material : Titanium | Recommended Crossover8 : 1.2 kHz | Inductance : 0.14 mH | || MOUNTING AND SHIPPING INFO Overall Diameter : 315 mm (12.4 in) | Bolt Circle Diameter : 298 mm (11.7 in) | Baffle Cutout Diameter : 283 mm (11.14 in) | Depth : 168 mm (6.6 in) | Flange and Gasket Thickness : 14 mm (0.55 in) | Net Weight : 5.2 kg (12.3 lb) | Shipping Units : 1 | Shipping Weight : 6.5 kg (14.33 lb) | Shipping Box : 425x425x224 mm (16.73x16.73x8.82 in) |
