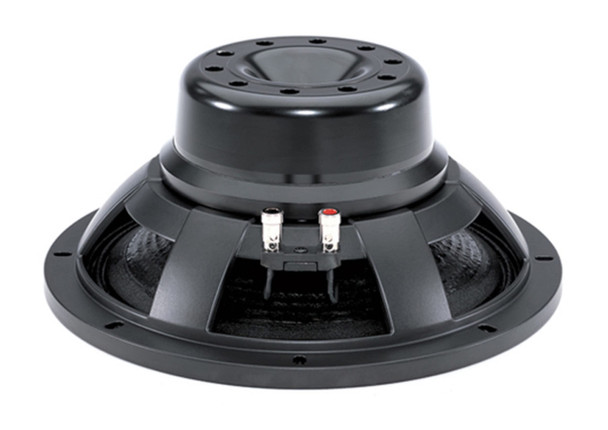

B&C 12NW100-4 High Power Woofer 4-ohms
- SKU:
- 20443120
- MPN:
- 12nw100-4
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/19/2025 12:50:09 AM PST
- Stock Update:
- 12/19/2025 12:50:09 AM PST
Description
This item is brand-new, factory sealed.
* Nominal Diameter: 320 mm (12.0 in).* Nominal Impedance: 4 Ohms.
* Minimum Impedance: 5 Ohms.
* Nominal Power Handling: 1000 W.
* Continuous power handling: 2000 W.
* Sensitivity (1W/1m): 96.0 dB.
* Frequency Range: 45 - 1500 Hz.
* Voice Coil Diameter: 100 mm (4.0 in).
* Winding Material: Copper.
* Former Material: Glass Fibre.
* Winding Depth: 25.0 mm (1.0 in).
* Magnetic Gap Depth: 12.0 mm (0.5 in).
* Flux Density: 1.2 TDesign.
* Surround Shape: Triple Roll.
* Cone Shape: Radial.
* Magnet Material: Neodymium Inside Slug.
* Spider: Double Silicone.
* Pole Design: T-Pole.
* Woofer Cone Treatment: TWP Waterproof Both Sides.
* Recommended Enclosure: 50.0 dm3 (1.77 ft3).
* Recommended Tuning: 50 HzParameters4.
* Resonance Frequency: 42 Hz.
* Overall Diameter: 319 mm (12.5 in).
* Bolt Circle Diameter: 299 mm (11.8 in).
* Baffle Cutout Diameter: 281.0 mm (11.1 in).
* Depth: 137 mm (5.4 in).
* Flange and Gasket Thickness: 13 mm (0.5 in).
* Air Volume Occupied by Driver: 2.7 dm3 (0.09 ft3).
* Net Weight: 8.2 kg (18.0 lb).
* Shipping Units: 1.
* Shipping Weight: 9.1 kg (20.06 lb).
* Shipping Box: 360x360x200 mm (14.17x14.17x7.87 in)Service Kit.
* Recone kit: RCK12NW1008D
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
B&C 12NW100-4 High Power Woofer 4-ohms
$410.94
