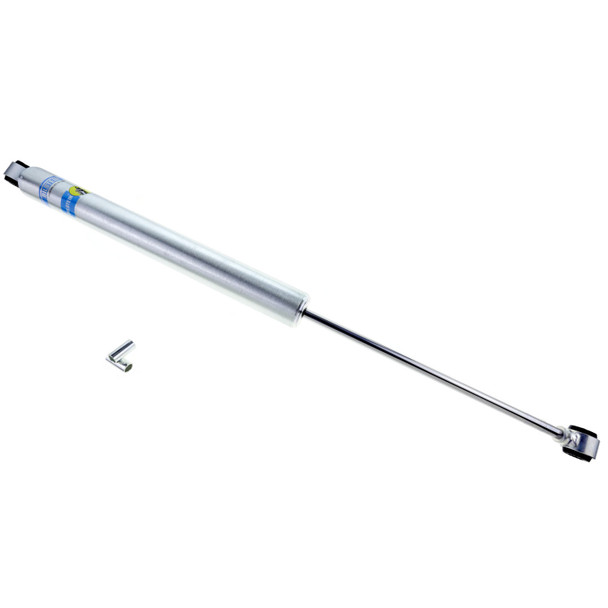

Bilstein B8 5125 - Shock Absorber 33-185576

This item is brand-new, factory sealed.

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

• Shock
• Shock Absorber
• 46mm Monotube Shock Absorber
• Lifted Truck; B8 5125; 364mm Stroke
• B8 5125 - Shock Absorber
• No Applications

Boot Included	No
Lower Mount Type	Eye 5/8in
Rebound @0.52m/s	2550
Collapsed Length (IN)	20.77
Reservoir	No
Title	Bilstein Shock Absorbers
Extended Length (IN)	34.92
Upper Mount Type	Eye 5/8in
Series	B8 5125
Body Design	Smooth Body (Non-Coilover)
Mount Type	Eye-to-Eye
Extended Length (MM)	887.0
Collapsed Length (MM)	527.5
Compression @0.52m/s	700
Adjustable Damping	Non-Adjustable
California Proposition 65	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Seat Included	No
Body Diameter (ID)	46mm
Finish	Zinc Plated
Extended Length (IN) Rounded	35
Collapsed Length (IN) Rounded	21
Internal Design	Monotube
