Bilstein B8 8112 (ZoneControl CR) - Front Right Corner Module 41-284551
- SKU:
- 19346439
- MPN:
- 41284551
- Availability:
- Usually ships the same or next business day. In stock at our GA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/27/2026 08:57:14 AM PST
- Stock Update:
- 02/27/2026 08:57:14 AM PST
Description
This item is brand-new, factory sealed.

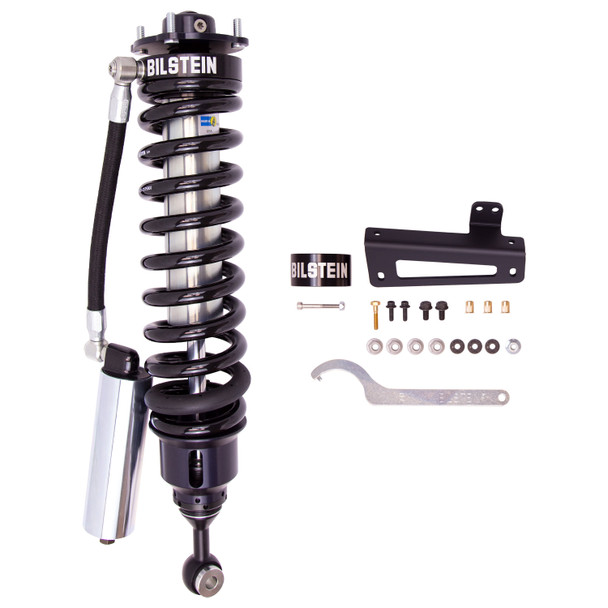

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUVs. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.- Toyota Tundra; 4WD; '07-; FR; B8 8112
- B8 8112 (ZoneControl CR) - Front Right Corner Module
- Toyota Tundra 2021-2007
- Shock Absorber and Coil Spring Assembly
- 60mm Front Right Corner Module
- Front Corner Module
| Boot Included | No |
| Lower Mount Type | Eye 16.1mm |
| Aftermarket Upper Arms Required | Yes |
| Collapsed Length (IN) | 19.43 |
| Reservoir | Yes |
| Title | Bilstein Shock Absorbers |
| Extended Length (IN) | 25.79 |
| Upper Mount Type | Special |
| Body Design | Smooth Body (Coilover) |
| Series | B8 8112 (ZoneControl CR) |
| Body Material | Steel |
| Collapsed Length (MM) | 493.6 |
| Extended Length (MM) | 655.1 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | Yes |
| Optional Heavy Load Springs | N/A |
| Body Diameter (ID) | 60mm |
| Internal Design | Monotube |
| Finish | Dampers: Zinc Plated/Springs: Black |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
