Black Box Network Services

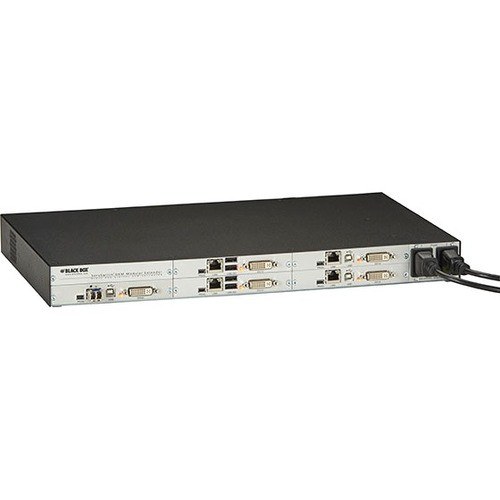

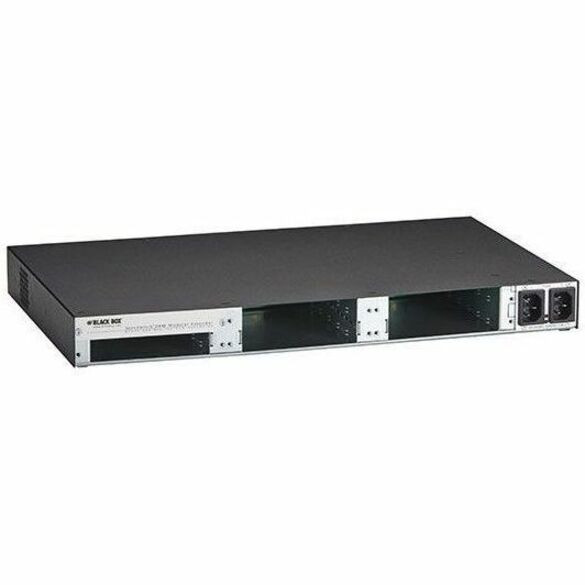

Black Box Network 6-Port DKM Modular Card Chasis ACXMODH6FPACR2
(No reviews yet)
Write a Review
- SKU:
- 20061027
- MPN:
- acxmodh6fpac-r2
- Availability:
- Out of stock
- Stock Update:
- 11/21/2025 03:26:43 PM PST
- Stock Update:
- 11/21/2025 03:26:43 PM PST
Description
This item is brand-new, factory sealed.
The DKM HD Video and Peripheral Matrix Switch System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. These new DKM components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.- Four housings are available: desktop housing for two, four, or six boards or a 19-inch, 4U rack for 21 boards.
- A redundant power supply option is available in some housings.
- The 6-port chassis has an internal AC/DC power supply and an external power supply option.
- Can be rackmounted with ACXMODHEAR6-FPAC.
- The 6-slot housing will accept up to (6) modular cards in a 19" rack mount chassis for the DKM and has built-in 5-VDC, 10-Amp power supplies.
Package Contents:
- 6-Port DKM Modular Card Chasis with Redundant Power Option and Backplane
- 1 x Removal Tool for Cards
- 2 x U.S. Power Cords
- 1 x CD-ROM
- User Manual
Features
Package Contents:
Yes
Yes
Matrix Switcher
Germany
- 6-Port DKM Modular Card Chasis with Redundant Power Option and Backplane
- 1 x Removal Tool for Cards
- 2 x U.S. Power Cords
- 1 x CD-ROM
- User Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Application/Usage:
Matrix Switcher
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Germany
Specs
| Power Description | |
| Power Source | Power Supply |
| Input Voltage | 240 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 5.50 lb |
| Height | 1.7" |
| Width | 17.5" |
| Depth | 8" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The DKM HD Video and Peripheral Matrix Switch System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. These new DKM components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support. Four housings are available: desktop housing for two, four, or six boards or a 19-inch, 4U rack for 21 boards. A redundant power supply option is available in some housings. The 6-port chassis has an internal AC/DC power supply and an external power supply option. Can be rackmounted with ACXMODHEAR6-FPAC. The 6-slot housing will accept up to (6) modular cards in a 19" rack mount chassis for the DKM and has built-in 5-VDC, 10-Amp power supplies. |
| Product Type | DKM Modular Chassis |
| Product Name | 6-Port DKM Modular Card Chasis with Redundant Power Option and Backplane |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACXMODH6FPAC-R2 |
| Packaged Quantity | 1 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
