Black Box Network Services
Black Box KVXLCDPF-100 KVM Console/Extender (KVXLCDPF100SFPBUN1)
- SKU:
- 18342272
- MPN:
- kvxlcdpf-100-sfpbun1
- Availability:
- Out of stock
- Stock Update:
- 07/25/2025 09:43:03 AM PST
- Stock Update:
- 07/25/2025 09:43:03 AM PST
Description
This item is brand-new, factory sealed.
Black Box KVXLCDPF-100 KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - Rack-mountable - 1U - for PC -- Type: KVM / audio / serial / USB extender
- Form Factor: External
- Connectivity Technology: Wired
- Transmission Medium: Fiber optic
- Max Transfer Distance: 1800 ft
- Package Dimensions: 12.25 x 9.75 x 3.75 inches
- Item Weight: 2.49 pounds
- Manufacturer: Black Box Corporation

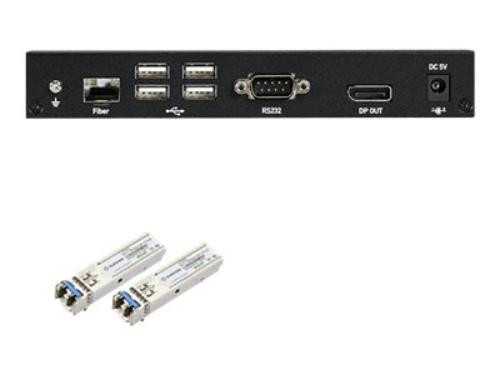

Extend KVM signals up to 33,000 feet 10km over SingleMode fiber via SFP. The KVXLCDPF100 DisplayPort KVM Console Extender lets you control a server or computer over singlemode or multimode fiber optic cable at distances of up to 10km depending on the SFP used fiber type and fiber bandwidth. PC connection cables are included with this product making it a solution that is ready right out of the box. You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX is the perfect lowcost solution for transportation control centers medical facilities industrial warehouses and extended workstations. Specifications. Type KVM / audio / serial / USB extender. Form Factor External. Connectivity Technology Wired. Transmission Medium Fiber optic. Max Transfer Distance 1800 ft. Status Indicators Link/activity, Power. Keyboard / Mouse Interface USB. KVM Max Supported Video Resolution 3840 x 2160. KVM VSync Rate At Max Resolution 30 Hz. Color Category Black. Included Accessories 2 x multimode SFP transceivers 850 nm. TAA Compliant Yes. Rack Mounting Kit Optional. Height Rack Units 1. MTBF 137,540 TX/165,620 RX Hours. Width 7.1 inch. Depth 3.3 inch. Height 0.8 inch. Weight 4.3 lbs
Package Contents:
- 1 x 4K DisplayPort KVM Fiber Extender Transmitter
- 1 x 4K DisplayPort KVM Fiber Extender Receiver
- 2 x 5-VDC, 2-A Power Supplies
- 1 x USB Type A to B Cable
- 1 x 4K DisplayPort Cable (4-ft./1.2-m)
- 1 x Audio Microphone/Speaker Combo Cable
- 2 x SFPs
Features
- 1 x Transmitter
- 1 x Receiver
- 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
- 1 x DisplayPort Cable, M/M 1.2m (4 ft.)
- 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
- 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
- 2 x Deskmounting brackets (with screws)
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Platform Supported:
PC
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of USB Ports | 5 |
| USB | Yes |
| DisplayPort | Yes |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The KVX Single Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used, fiber type, and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations. KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX Series Extenders are TAA compliant and backed by free lifetime technical support. KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers. |
| Product Type | KVM Console/Extender |
| Product Name | KVXLCDPF-100 KVM Console/Extender |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCDPF-100-SFPBUN1 |
| Product Model | KVXLCDPF-100 |
| Product Series | KVX |
| Technical Information | |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 1804.46 ft |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
