Black Box Network Services

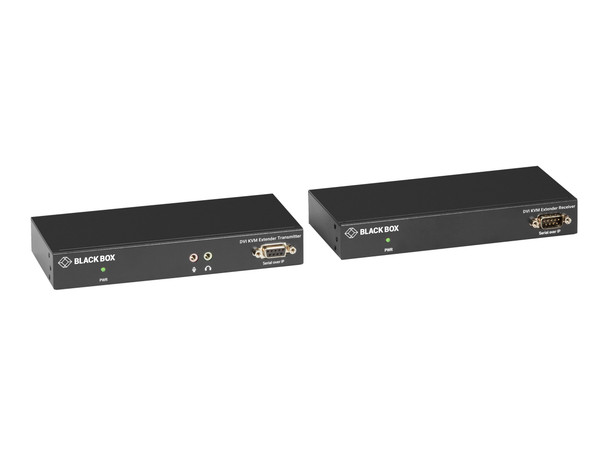

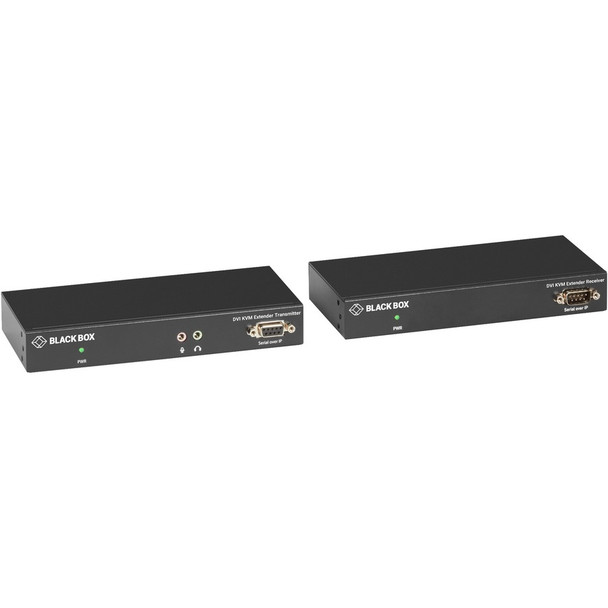

Black Box KVM Extender Fiber - SH DVI-D USB 2.0 Serial Audio Local Video KVXLCF100R2
- SKU:
- 20057241
- MPN:
- kvxlcf-100-r2
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/31/2026 12:54:18 AM PST
- Stock Update:
- 01/31/2026 12:54:18 AM PST
Description
This item is brand-new, factory sealed.
Black Box Network - KVXLCF-100-R2 KVM Extender Fiber - SH DVI-D USB 2.0 Serial Audio Local Video - 1 Computer(s) - 1 Local User(s) - 98425.20 ft Range - WUXGA - 1920 x 1200 Maximum Video- The KVX DVI-D KVM Extender lets you control a server or computer over single-mode or multimode cable
- Product Dimensions: 12.5 x 9.63 x 3.81 inches
- Item Weight: 3.92 pounds
- Manufacturer: Black Box Network
The KVX DVI-D KVM Extender lets you control a server or computer over single-mode or multimode cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). Single-monitor requires one fiber connection and dual-monitor requires two fiber connections. PC connection cables are included with this product, making it a solution that is ready to use right out of the box. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. Available with support for one or two monitors, KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations. KVX is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution. KVX also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs. This extender is TAA compliant and backed by free lifetime technical support. KVX is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users. Package Contents: 1 x Transmitter Unit 1 x Receiver Unit 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types) 1 x DVI-D Cables, M/M 1.8m (6 ft.) 1 x USB Type A to B Cable, M/M 1.8m (6 ft.) 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.) 2 x Deskmounting
Features
- 1 x Transmitter Unit
- 1 x Receiver Unit
- 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
- 1 x DVI-D Cables, M/M 1.8m (6 ft.)
- 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
- 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
- 2 x Deskmounting Brackets (with screws)
TAA Compliant:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Weight (Approximate) | 12.32 oz |
| Receiver Width | 7.09" |
| Receiver Height | 1.06" |
| Product Color | Black |
| Receiver Depth | 3.27" |
| Transmitter Depth | 3.27" |
| Receiver Weight (Approximate) | 12.96 oz |
| Transmitter Height | 1.06" |
| Transmitter Width | 7.09" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of USB Ports | 1 |
| USB | Yes |
| DVI | Yes |
| Number of DVI Ports | 2 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The KVX DVI-D KVM Extender lets you control a server or computer over single-mode or multimode cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). Single-monitor requires one fiber connection and dual-monitor requires two fiber connections. PC connection cables are included with this product, making it a solution that is ready to use right out of the box. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. Available with support for one or two monitors, KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations. KVX is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution. KVX also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs. This extender is TAA compliant and backed by free lifetime technical support. KVX is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users. |
| Product Type | KVM Extender |
| Product Name | KVM Extender Fiber - SH DVI-D USB 2.0 Serial Audio Local Video |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCF-100-R2 |
| Product Model | KVXLCF-100-R2 |
| Product Series | KVX |
| Technical Information | |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 98425.20 ft |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
