Black Box KVXLCHF-100 Video Extender Transmitter/Receiver (KVXLCHF100)
- SKU:
- 18179861
- MPN:
- kvxlchf-100
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/24/2026 01:19:09 AM PST
- Stock Update:
- 01/24/2026 01:19:09 AM PST
Description
This item is brand-new, factory sealed.
The KVX HDMI/DisplayPort Single Head Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

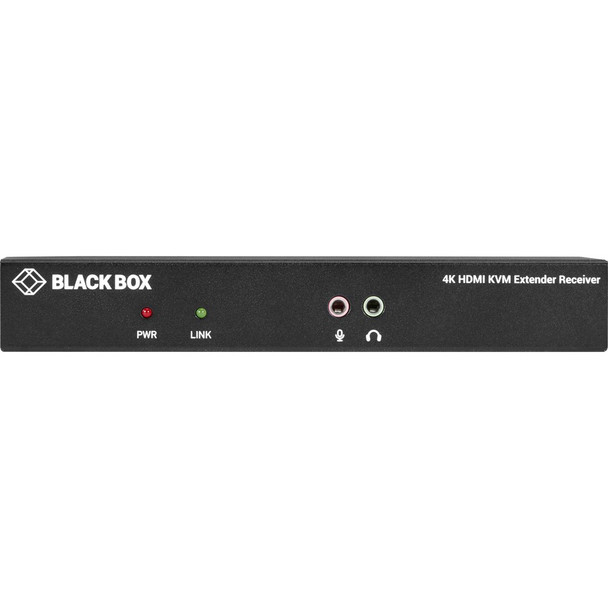

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.
KVX Series Extenders are TAA compliant, backed by a 2-year warranty and free lifetime technical support.
KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

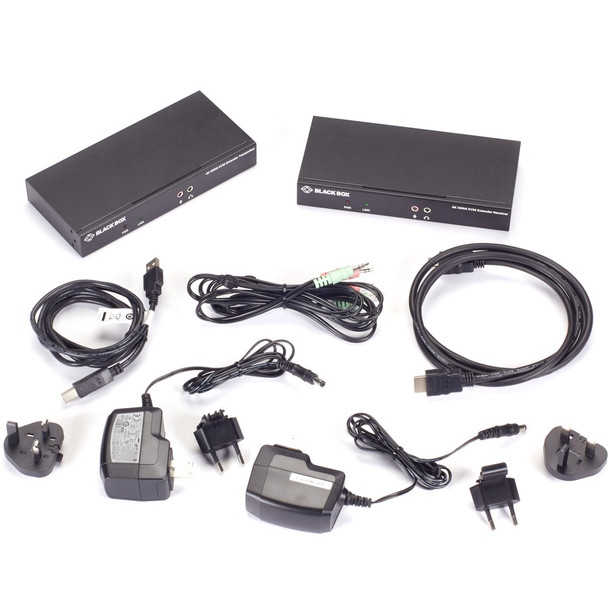

Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
- 1 x HDMI Cable, M/M 1.2m (4 ft.)
- 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
- 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
- 2 x Deskmounting brackets (with screws)
Features
- 1 x Transmitter
- 1 x Receiver
- 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
- 1 x HDMI Cable, M/M 1.2m (4 ft.)
- 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
- 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
- 2 x Deskmounting brackets (with screws)
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Weight (Approximate) | 13.12 oz |
| Receiver Width | 3.27" |
| Receiver Height | 0.83" |
| Receiver Depth | 7.09" |
| Transmitter Depth | 7.09" |
| Receiver Weight (Approximate) | 13.28 oz |
| Transmitter Height | 0.83" |
| Transmitter Width | 3.27" |
| Warranty | |
| Limited Warranty | 2 Year |

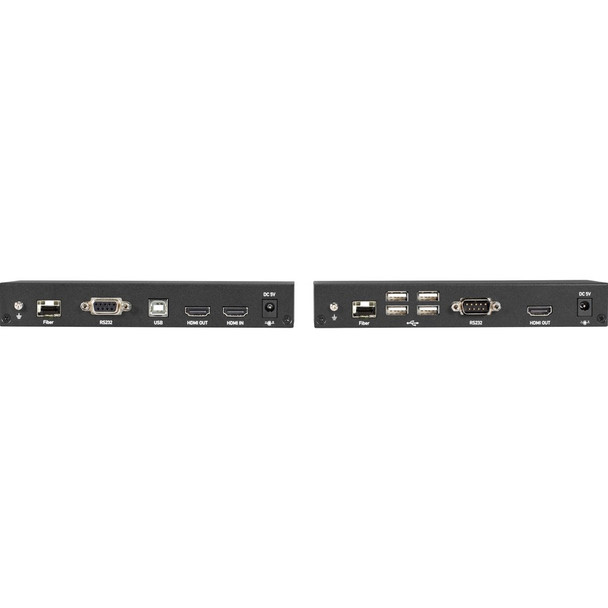

| Interfaces/Ports | |
| Number of USB Ports | 5 |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| USB | Yes |
| Number of HDMI Outputs | 2 |
| Serial Port | Yes |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphics Modes | 4K UHD |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The KVX HDMI/DisplayPort Single Head Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX Series Extenders are TAA compliant and backed by free lifetime technical support. KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers. |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | KVXLCHF-100 Video Extender Transmitter/Receiver |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCHF-100 |
| Product Model | KVXLCHF-100 |
| Product Series | KVX |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Technical Information | |
| Maximum Operating Distance | 98425.20 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 2 |
