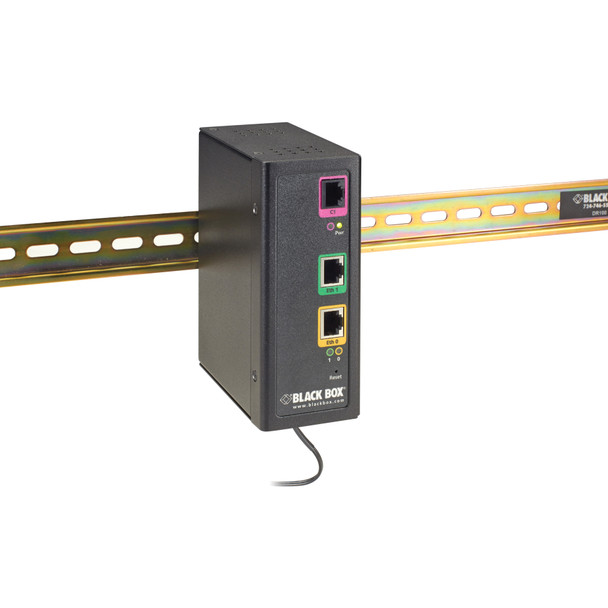

Black Box Industrial Ethernet Extender Remote Unit - G.SHDSL 2-Wire- 1 (LB532ARR2)
- SKU:
- 19140647
- MPN:
- lb532a-r-r2
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.
Ethernet extension, especially in harsh environments, is now incredibly easy and economical. You can connect industrial Ethernet devices and remote LANs over your existing a single CATx voice-grade twisted pair cable at speeds and distances you didn't think possible.
Get the best possible speed
Make connections at speeds up to 15 Mbps and across distances ranging from 0 to 6.4 miles (10km). An auto-rate feature senses the ideal speed/distance configuration and ensures that you achieve the highest possible speed on each connection. While you can configure your desired rate via DIP switches or Telnet, if conditions aren't ideal, the extender will automatically set the rate.
Withstands temperature extremes
This rugged extender can withstand temperature extremes of -40° F to 185° F so you can use it to connect Ethernet-enabled industrial devices such as sensors, cameras, security equipment, etc. It's ideal for use in transportation systems, manufacturing, and other harsh, remote environments. The aluminum enclosure meets IP40 specifications and a DIN rail clip is included. The unit is designed to be used in a controlled environment and not to be exposed to the weather.
Use in pairs
This remote unit is designed to be used in pairs with the local unit. For multidrop runs, choose the multidrop unit.
Quadruple your connections
The remote extender features a built-in, four-port, auto-sensing 10-/100BASE-TX Ethernet switch so you can connect four devices instead of one. A built-in auto-MDIX (automatic medium-dependent interface crossover) means you can use either straight-through or crossover cable, whichever is handy, to connect your Ethernet devices. There's no fussing.
Easy setup
Plug-and-play means that you'll be up and running in seconds. The auto-MDIX also detects the polarity of the cable on each port and automatically configures the signaling to match. There's no user configuration on your part whatsoever.
The extender operates at layer 2 and transparently passes all higher-layer protocols including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO. In addition, the extender features automatic learning, aging, and filtering to keep local traffic local ensuring efficient utilization of the long-range link.
LB532A-R Distance Chart
Distance on CAT5/5e/6 UTP, 24 AWG (0.5 mm)
Far reach
The extender has a max reach of 30 km.
Features
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Specs
| Power Description | |
| Input Voltage | 230 V AC |
| Physical Characteristics | |
| Height | 5.6" |
| Width | 2.3" |
| Depth | 4.6" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Ethernet extension, especially in harsh environments, is now incredibly easy and economical. You can connect industrial Ethernet devices and remote LANs over your existing a single CATx voice-grade twisted pair cable at speeds and distances you didn't think possible. Get the best possible speed Make connections at speeds up to 15 Mbps and across distances ranging from 0 to 6.4 miles (10km). An auto-rate feature senses the ideal speed/distance configuration and ensures that you achieve the highest possible speed on each connection. While you can configure your desired rate via DIP switches or Telnet, if conditions aren't ideal, the extender will automatically set the rate. Withstands temperature extremes This rugged extender can withstand temperature extremes of -40° F to 185° F so you can use it to connect Ethernet-enabled industrial devices such as sensors, cameras, security equipment, etc. It's ideal for use in transportation systems, manufacturing, and other harsh, remote environments. The aluminum enclosure meets IP40 specifications and a DIN rail clip is included. The unit is designed to be used in a controlled environment and not to be exposed to the weather. Use in pairs This remote unit is designed to be used in pairs with the local unit. For multidrop runs, choose the multidrop unit. Quadruple your connections The remote extender features a built-in, four-port, auto-sensing 10-/100BASE-TX Ethernet switch so you can connect four devices instead of one. A built-in auto-MDIX (automatic medium-dependent interface crossover) means you can use either straight-through or crossover cable, whichever is handy, to connect your Ethernet devices. There's no fussing. Easy setup Plug-and-play means that you'll be up and running in seconds. The auto-MDIX also detects the polarity of the cable on each port and automatically configures the signaling to match. There's no user configuration on your part whatsoever. The extender operates at layer 2 and transparently passes all higher-layer protocols including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO. In addition, the extender features automatic learning, aging, and filtering to keep local traffic local ensuring efficient utilization of the long-range link. LB532A-R Distance Chart Distance on CAT5/5e/6 UTP, 24 AWG (0.5 mm) Far reach The extender has a max reach of 30 km. Line Rate (kbps)Mileskm 192 4.3 6.9 256 4.3 6.9 512 4.2 6.7 768 3.7 5.5 1024 3.5 5.6 1280 3.5 5.6 1536 3.5 5.6 2048 3.1 5.0 2304 3.1 5.0 4608 2.1 3.4 5696 1.7 2.7 |
| Product Type | Network Extender |
| Product Name | Industrial Ethernet Extender Remote Unit - G.SHDSL 2-Wire, 15-Mbps |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LB532A-R-R2 |
| Technical Information | |
| Maximum Data Transfer Rate | 1.88 MB/s |
| Maximum Extended Range | 98425.20 ft |
