Black Box Network Services

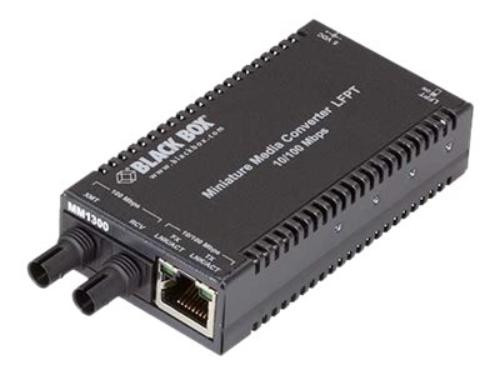

Black Box MultiPower Miniature Transceiver/Media Converter (LHC013AR4)
- SKU:
- 18202418
- MPN:
- lhc013a-r4
- Availability:
- Out of stock
- Stock Update:
- 12/05/2025 04:30:46 PM PST
- Stock Update:
- 12/05/2025 04:30:46 PM PST
Description
This item is brand-new, factory sealed.
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
Black Box® Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.
The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port.
For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray (LHC018A-AC-R2).
Media Converter Fast Ethernet Multimode 1300nm 2km ST. 10/100Mbps copper to 100Mbps fiber. Typical Enterprise applications include LAN extension, fiber mode conversion, or Ethernet speed conversion. These media converters feature a small metal enclosure that can be used stand alone or inserted into a high density rack mount chassis, LHC018A-AC-R2. Converters include an external 100-240VAC power adapter with US and Europe plug clips. Converters may also be powered from a USB port using the LHC021A USB power cable. The LHC018A-AC-R2 chassis is 1.5U high, has slots for up to 18 media converters, and includes a 100-240VAC power supply. The media converters are unmanaged, plug and play with no configuration.
Package Contents:
- MultiPower Miniature Transceiver/Media Converter
- 100-240VAC Power Adapter
- Plug Clips
Features
- MultiPower Miniature Transceiver/Media Converter
- 100-240VAC Power Adapter
- Plug Clips
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor |
|
| Height | 0.8" |
| Width | 1.8" |
| Depth | 3.4" |
| Warranty | |
| Limited Warranty | 6 Year |
| Interfaces/Ports | |
| ST Port Type | Duplex |
| Network (RJ-45) | Yes |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box® Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray (LHC018A-AC-R2). Media Converter Fast Ethernet Multimode 1300nm 2km ST. 10/100Mbps copper to 100Mbps fiber. Typical Enterprise applications include LAN extension, fiber mode conversion, or Ethernet speed conversion. These media converters feature a small metal enclosure that can be used stand alone or inserted into a high density rack mount chassis, LHC018A-AC-R2. Converters include an external 100-240VAC power adapter with US and Europe plug clips. Converters may also be powered from a USB port using the LHC021A USB power cable. The LHC018A-AC-R2 chassis is 1.5U high, has slots for up to 18 media converters, and includes a 100-240VAC power supply. The media converters are unmanaged, plug and play with no configuration. |
| Product Type | Transceiver/Media Converter |
| Product Name | MultiPower Miniature Transceiver/Media Converter |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LHC013A-R4 |
| Product Line | Multipower Miniature |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Fiber Optic Cable Core/Cladding Specification |
|
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology |
|
