Black Box Network Services

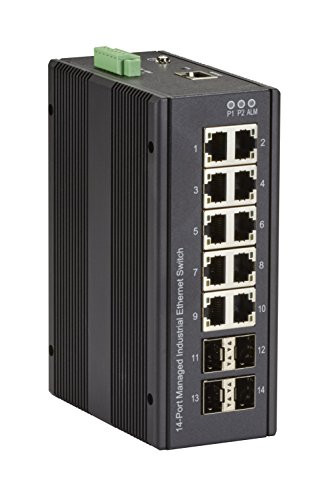

Black Box Ethernet Switch (LIG1014A)
- SKU:
- 18149958
- MPN:
- lig1014a
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/28/2026 12:46:07 AM PST
- Stock Update:
- 02/28/2026 12:46:07 AM PST
Description
This item is brand-new, factory sealed.
Multiple ports for flexibility.This switch has ten 10/10/1000-Mbps RJ-45 copper ports and four multi-speed SFP ports for uplinks. It offers full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables.
Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site - thus lowering costs.
The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
Fast failovers.
The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover.
Extreme applications.
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
- Security and surveillance, particularly to backhaul IP security camera data.
- Military applications, especially in ships and other vehicles.
- Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.
Package Contents:
- Ehernet Switch
- (1) Cable RJ-45 to DB9
- Din-rail mounting material
Features
- Hardened Managed Ethernet Switch
- 4 x M3 SCREWS
- 2 x PANEL MOUNT BRACKETS
- 1 x DIN RAIL CLIP
- 1 x 6-POSITION PHOENIX CONNECTOR
- 5 x RJ-45 ETHERNET PORT DUST COVERS
- 4 x SFP ETHERNET PORT DUST COVERS
Environmentally Friendly:
Yes
Application/Usage:
Industrial
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | DC |
| Input Voltage |
|
| PoE (RJ-45) Port | No |
| Power Consumption | 11 W |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 2.40 lb |
| Height | 6" |
| Width | 2.4" |
| Depth | 4.3" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 10 |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Number of SFP Slots | 4 |
| Expansion Slot Type | SFP |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | OVERVIEW INDUSTRIAL MANAGED AND UNMANAGED GIGABIT ETHERNET SWITCHES DATA SHEET INTRODUCTION The Industrial Managed and Unmanaged Gigabit Ethernet Switches include unmanaged switches that provide four (4) copper RJ-45 or RJ-45 PoE ports and one (1) multi-rate SFP slot and managed switches that provide six (6) or eight (8) copper RJ-45 or RJ-45 PoE ports and two (2) or four (4) multi-rate SFP slots. Power over Ethernet The LIE401A, LIE1014A, LIE1080A and LIE1082A switches support Power over Ethernet compliant to the IEEE 802.3af and IEEE 802.3at standard on all copper ports. These switches can be used to power standard PoE PD devices with up to 30 watts per port along with the Ethernet data on standard Ethernet Cabling. Multi-rate SFP slots The benefit of having multi-rate SFP slots is to be able to use 100-Mbps and 1-Gbps SFP Modules for either multi- or single-mode in a mix and match as needed. If requirements change, just replace the SFP module and protect your switch investment. Power The switches are powered from 12- to 58-VDC. The PoE models need 48 VDC for 802.3af and a minimum of 53 VDC for 802.3at. Extended temperature range All models are tested and released for operating temperatures from -40° up to +75° Celsius. Management The switches offer powerful features including Layer 2 routing and management with all advanced filter and multicast algorithms needed today to easily prioritize, partition, and organize a reliable high-speed network. |
| Product Type | Ethernet Switch |
| Product Name | Hardened Managed Ethernet Switch |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LIG1014A |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
