Black Box Network Services
Black Box Network Services MEG101AE-R5 Vdsl2 Ethernet Extender - 10/100/1000base-tx 2-port
- SKU:
- 21337707
- MPN:
- meg101ae-r5
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/04/2025 04:34:52 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 5 | and pay only $173.61 each 173.61 |
| Buy 6 or above | and pay only $169.11 each 169.11 |
- Stock Update:
- 12/04/2025 04:34:52 PM PST
Description
This item is brand-new, factory sealed.
The MEG101AE-R5 extender uses G.993.2 VDSL2 standard technology to transmit data between LANs at up to 160-Mbps symmetric using only a single copper wire pair. It supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters. The unit is ideal for extending LAN to buildings, hotels, hospitals, or any location outside of the 100 meters reach of Ethernet UTP.

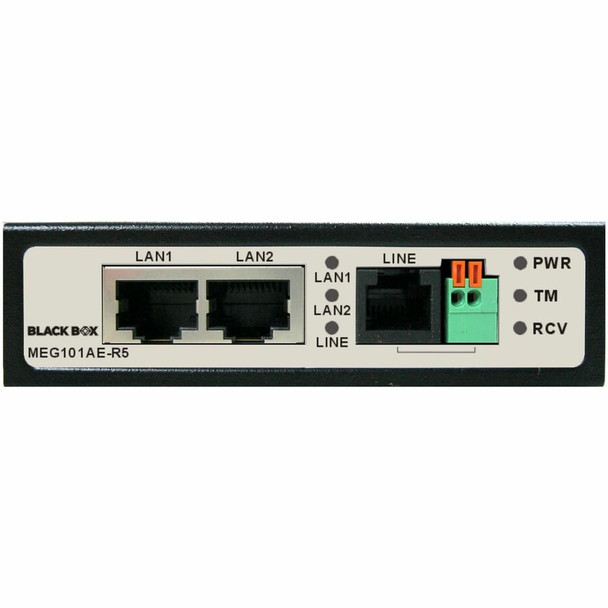

The extender features two 10/100/1000 Ethernet ports, a DIP switch to select Central Office (CO) or Customer Premise Equipment (CPE), 8 selectable bands, selectable SNRM level, and selectable G.INP. LED indicators include PWR, CO, and CPE.
Features
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Voltage | 12 V DC |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The MEG101AE-R5 extender uses G.993.2 VDSL2 standard technology to transmit data between LANs at up to 160-Mbps symmetric using only a single copper wire pair. It supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters. The unit is ideal for extending LAN to buildings, hotels, hospitals, or any location outside of the 100 meters reach of Ethernet UTP. The extender features two 10/100/1000 Ethernet ports, a DIP switch to select Central Office (CO) or Customer Premise Equipment (CPE), 8 selectable bands, selectable SNRM level, and selectable G.INP. LED indicators include PWR, CO, and CPE. |
| Product Type | Network Extender |
| Product Name | VDSL2 Ethernet Extender - 10/100/1000BASE-TX, 2-Port |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | MEG101AE-R5 |
| Technical Information | |
| Maximum Data Transfer Rate | 125 MB/s |
| Maximum Operating Distance | 9842.52 ft |
| Maximum Extended Range | 984.25 ft |
