Black Box Network Services

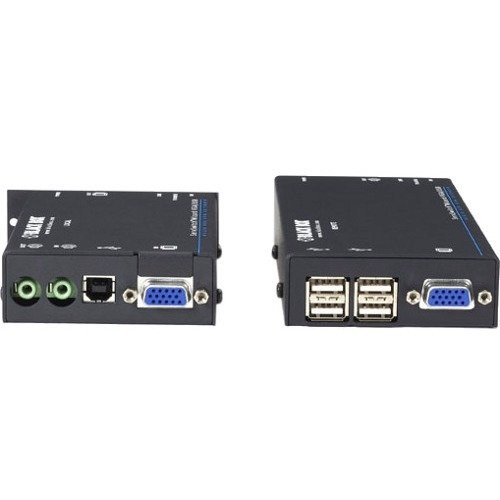

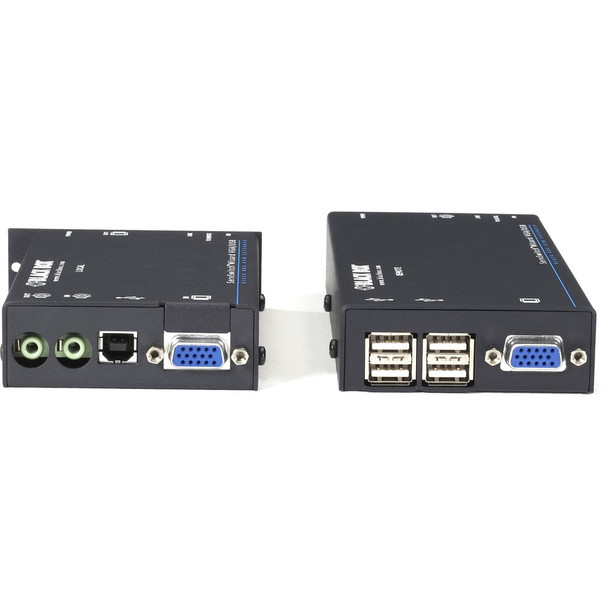

Black Box ServSwitch Wizard USB KVM Extender With Audio (acu5050a-r2) ACU5050AR2_2
(No reviews yet)
Write a Review
- SKU:
- 18136033
- MPN:
- acu5050a-r2_2
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/06/2026 08:41:12 AM PST
- Stock Update:
- 02/06/2026 08:41:12 AM PST
Description
This item is brand-new, factory sealed.
Sends VGA, USB, keyboard, and mouse plus audio up to 1000 feet over CATx!
- Supports all USB 1.1 devices (full speed and low speed modes) and USB 2.0 devices that will run in low speed or full speed USB 1.1 modes
- Supports high-bandwidth monitors at resolutions up to 1920 x 1080.
- Ideal for high-density applications where you want full use of USB keyboards, mice, and other devices but there simply isn't room for a server nearby, or for applications where you want to keep CPUs secured and out of the way
Package Contents:
- Local Unit
- Remote Unit
- USB Cable
- Audio Cable
- Video Cable
- 2 x Rackmounting Plates
- 8 x self-adhesive rubber feet
- Power Supply For Remote Unit (PS649-R3)
- IEC 320 Power Cord
- Safety Guide
Features
Package Contents:
CE
Yes
United Kingdom
- 1 x Transmitter
- 1 x Receiver
- 1 x VGA M/M cable (all pins) 1.8m (6 ft.)
- 1 x 3.5mm audio cable 3m (10 ft.)
- 1 x USB Type A B cable 1.8m (6 ft.)
- 2 x sets of rubber feet
- 1 x 5VDC, 2.5Amp external power supply
Certifications & Standards:
CE
Environmentally Friendly:
Yes
Country of Origin:
United Kingdom
Specs
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor |
|
| Transmitter Weight (Approximate) | 1 lb |
| Receiver Width | 2.90" |
| Receiver Height | 1" |
| Receiver Depth | 6.40" |
| Transmitter Depth | 6.40" |
| Receiver Weight (Approximate) | 1 lb |
| Transmitter Height | 1" |
| Transmitter Width | 2.90" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| VGA | Yes |
| Microphone | Yes |
| Number of USB Ports | 5 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 4 |
| Video | |
| Maximum Video Resolution | 1900 x 1200 |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The power of transparent USB The ServSwitch Wizard™ USB SRX KVM Extender, single-video, from Black Box, combines VGA, USB 1.1 or USB 2.0, and audio, and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB. DDC EDID read and store support Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it, they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory. Small form factor The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to 16 single-video units in just 2U. Local access The local unit features audio and VGA feed-through, giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports. Dual-user configuration With two single-video units, you can connect two workstations with keyboards, monitors, and mice to one CPU tower. Two users can use local connections to monitor and diagnose the CPU. This setup is ideal for a remote CPU that doesn't need to be monitored simultaneously by two users. |
| Product Type | KVM Console/Extender |
| Product Name | ServSwitch Wizard USB KVM Extender With Audio |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU5050A-R2 |
| Product Line | ServSwitch |
| Technical Information | |
| Number of Remote Users Supported | 1 |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 1000 ft |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Black Box ServSwitch Wizard USB KVM Extender With Audio (acu5050a-r2) ACU5050AR2_2
$1,131.40
