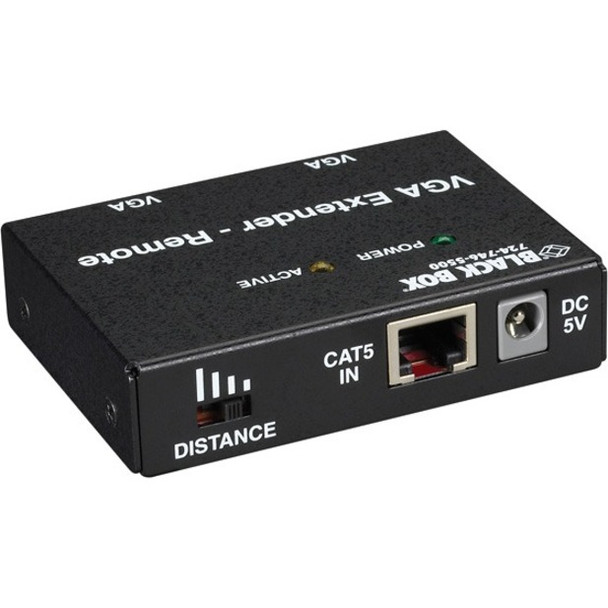

Black Box Vga Receiver, 2-port - 2 Output Device - 500 Ft Range - 1 X Network [rj-45] (ac555a-rem-r2)
(No reviews yet)
Write a Review
- SKU:
- 18350564
- MPN:
- ac555a-rem-r2
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/23/2026 03:40:41 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $180.95 each 180.95 |
- Stock Update:
- 02/23/2026 03:40:41 AM PST
Description
This item is brand-new, factory sealed.
Connect two remote monitors in a VGA Transmitter extender application.
- Works with the 4-port VGA Transmitter (AC555A-4-R2) to extend V GA video up to 500 feet.
- An equalization (gain) control enables you to fine-tune the picture.
- Has a 2-kV avalanche diode, which provides greater electrostatic discharge (ESD) protection and more reliable operation.
- Connects to two VGA monitors.
Features
Environmentally Friendly:
Yes
Taiwan
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Receiver Width | 3.30" |
| Receiver Height | 0.60" |
| Receiver Depth | 2.30" |
| Receiver Weight (Approximate) | 6.40 oz |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 2 |
| VGA Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 1024 x 768 |
| Graphics Modes | XGA |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Connect two remote monitors in a VGA Transmitter extender application. Works with the 4-port VGA Transmitter (AC555A-4-R2) to extend V GA video up to 500 feet. An equalization (gain) control enables you to fine-tune the picture. Has a 2-kV avalanche diode, which provides greater electrostatic discharge (ESD) protection and more reliable operation. Connects to two VGA monitors. |
| Product Type | Video Extender Receiver |
| Product Name | VGA Receiver, 2-Port |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AC555A-REM-R2 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 500 ft |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 2 |
