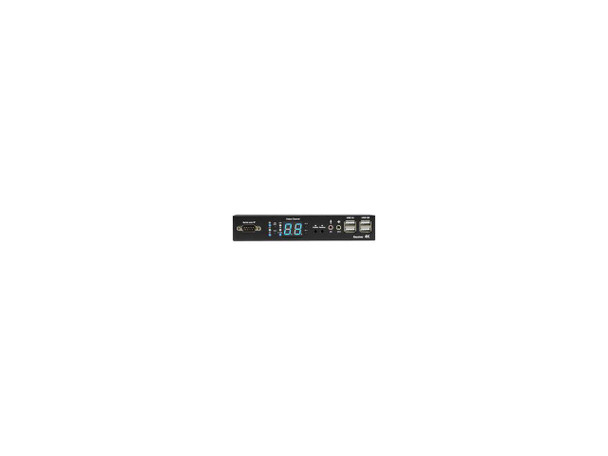

Black Box MediaCento IPX 4K Receiver - HDMI- USB- Serial- IR- Audio - 1 Computer(s (VXHDMI4KIPRX)
- SKU:
- 18157228
- MPN:
- vx-hdmi-4kip-rx
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/05/2025 04:28:45 AM PST
- Stock Update:
- 12/05/2025 04:28:45 AM PST
Description
This item is brand-new, factory sealed.
HDMI 4K video over IP
This attractively priced IP video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI 4K video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load.
4K means better video
The MediaCento IPX 4K supports full 4K UHD for the best pictures ever. To ensure video is also being displayedon 1080p displays, the unit supports 4K to 1080p downscaling.
Better audio: analog and digital
This MediaCento system supports embedded digital HDMI audio with surround sound plus analog audio embedding and extraction so you can include analog audio input from DVI sources and route audio signals to a separate amplifier.
Plug-and-play setup
Because the transmitter and receiver install directly into your existing LAN infrastructure, integration is easy. And you don't have to configure any IP settings. Connect your source, your display, a network switch, and you're ready go.
PoE support for remote powering
The MediaCento IPX 4K is PoE powered eliminating the need for power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier.
USB support
The MediaCento IPX 4K is great for use with touchscreen signage applications. It can also extend USB signals for devices such as keyboards and mice for KVM management of a remote workstation.
Signals that go for miles
The MediaCento IPX 4K Unicast system transmits up to 328 feet (100 m) point to point, but goes even further with a network switch added to the mix. Transmit over CATx cable or single-mode fiber cable. Compatible SFPs include LFP411, LFP312, LFP413, LFP414 and LFP418.
Supports serial connections to switch screens on/off
The MediaCento IPX 4K system supports RS-232 for configuration and control, and for extending bidirectional control signals.
Optimal PC-to-screen performance
MediaCento features EDID copy function and is HDCP 2.2-compliant.
Digital signage and video wall applications:
- Hospitality
- Bars/restaurants
- Retail
- Venues/events
- Corporate multi-room solutions
MediaCento IPX 4K is also great for:
- Touchscreen applications using the iCOMPEL Digital Signage system.
- Basic KVM applications, such as extending signals for monitors, touchscreens, speakers, keyboards, mice, and other USB 2.0 devices.
- Streaming video to classrooms in schools.
- Corporate video sharing and training.
- Sharing video in command and control room setups.
Package Contents:
- MediaCento IPX 4K Receiver - HDMI, USB, Serial, IR, Audio
- 1 x DB9 to RJ-11 Adapter
- 1 x RJ-11 to RJ-11 Cable
- 1 x U.S. Power Supply
- 1 x U.S. Power Cord
- 4 x Foot Pads
Features
- 1 x 4K Receiver - HDMI, USB, Serial, IR, Audio
- 1 x 5-VDC, 3-A Power Supply
- 1 x IR Receiver Cable
- 1 x IR Remote Control
- Quick Start Guide
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage Range | 36-57 V DC |
| Input Voltage | 48 V DC |
| Power Consumption | 10.50 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Receiver Width | 3.58" |
| Receiver Height | 1.25" |
| Receiver Depth | 7.34" |
| Receiver Weight (Approximate) | 1 lb |
| Warranty | |
| Additional Warranty Information | <p>3 Years Double Diamond™ Warranty (Standard)</p> |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of HDMI Ports | 3 |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphic Mode | 4K |
| General Information | |
| Brand Name | Black Box |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | HDMI 4K Video Distribution Over IP: MediaCento IPX 4K The MediaCento IPX 4K provides an attractively priced solution for distributing high-quality HDMI 4K video over your existing Gigabit Ethernet network using standard TCP/IP protocols. In a multicast setup, a single transmitter can drive multiple receivers without adding extra network load. Ultimate Quality and Simple Setup The system supports full 4K UHD for the best picture quality and includes 4K to 1080p downscaling to ensure the video displays correctly on legacy screens. Audio support is robust, offering embedded digital HDMI surround sound, plus the ability to embed and extract analog audio for DVI sources or routing to external amplifiers. Integration is simple plug-and-play. The transmitter and receiver install directly into your existing LAN infrastructure, requiring no manual IP configuration. For easier installation, the system is PoE powered, eliminating the need for external power supplies when using a PoE network switch. Extending Functionality and Reach The MediaCento IPX 4K extends signals up to 328 feet (100 m) point-to-point but can go significantly further using a network switch, transmitting over either CATx or single-mode fiber cable. It supports USB extension for KVM management of a remote workstation, making it ideal for basic KVM and touchscreen digital signage applications. For control, the system includes RS-232 support for configuration and extending bidirectional control signals, such as turning screens on and off. Optimal performance is guaranteed with the EDID copy function and HDCP 2.2 compliance. The versatile MediaCento IPX 4K is perfect for applications across retail, hospitality, corporate training, command and control rooms, and educational video streaming. |
| Product Type | KVM Console |
| Product Name | 4K Receiver - HDMI, USB, Serial, IR, Audio |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VX-HDMI-4KIP-RX |
| Technical Information | |
| Number of Remote Users Supported | 1 |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Connectivity Technology | Wired |
