Bogen WV100 Wall-Mount Power Vector Modular Amplifier (WV100)
(No reviews yet)
Write a Review
- SKU:
- 19089022
- MPN:
- wv100
- Availability:
- Out of stock
- Stock Update:
- 04/10/2026 08:08:51 AM PST
- Stock Update:
- 04/10/2026 08:08:51 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

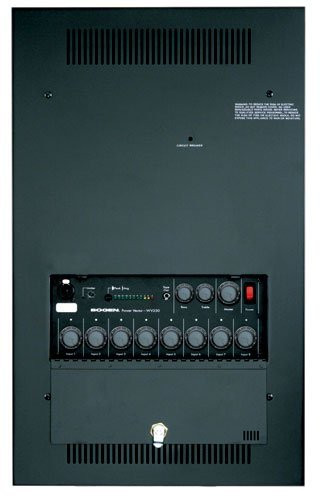

This 100W amplifier combines up to 8 modular inputs and signal-processing outputs to meet various application requirements. The amplifierft. s convenient wall-mount design provides a protected and accessible audio system in a permanent and inconspicuous mounting. Modules required but sold separately. Features: Capable of handling 70V 25V 8-ohm and 4-ohm speaker loads. Wide selection of advanced plug-in modules. 2 module bays capable of handling signal processing plug-in output modules. 4 levels of priority between modules. 11-segment LED output level meter registers Peak or Average output. Adjustable output level limiter with active indicator. Optional front-mounted input combo jack with 1/4in. stereo phone and female XLR capabilities. Motorized master volume control can be remotely operated. Bass and treble controls with center detent. Independent volume controls for each input. Front-mounted tape output provides unbalanced signal level output. 125Hz Lo-cute switch. Tone control bypass switch. Thermal short-circuit and overload protection. Thermally controlled 3-speed fan.Features
Additional Information:
Features:
- 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
- Master mute function overrides all audio from the mixer section of the amplifier
- 2 module bays capable of handling signal processing plug-in output modules
- Each of the 8 module bays has an associated independent volume control
- Screw terminal for master mute and remote volume control functions
- Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
- Two-color LED for each channel indicates input active/clipping
- Motorized master volume control can be remotely operated
- Requires front cover door (WMAD sold separately)
- Adjustable output level limiter with limit indicator
- Wide selection of advanced plug-in modules
- Bass and treble controls with center detent
- 4 levels of priority between modules
- 8 module bays
Specs
| Power Description | |
| Frequency | 60 Hz |
| Input Voltage | 120 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 27 lb |
| Height | 21" |
| Width | 14.1" |
| General Information | |
| Brand Name | Bogen |
| Manufacturer Website Address | http://www.bogen.com |
| Marketing Information | Bogen's Wall-Mount Power Vector modular amplifiers offer a wide range of power. The amplifier is designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. It includes eight module bays for plug-in input modules and allows for up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED output meter monitors output signal level. It includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately). |
| Product Type | Amplifier |
| Product Name | WV100 Wall-Mount Power Vector Modular Amplifier |
| Manufacturer | Bogen Communications International, Inc |
| Manufacturer Part Number | WV100 |
| Product Model | WV100 |
| Product Line | Power Vector |
| Technical Information | |
| Total Harmonic Distortion (THD) | 0.1% |
| Audio | |
| RMS Output Power | 100 W |
