cbc america

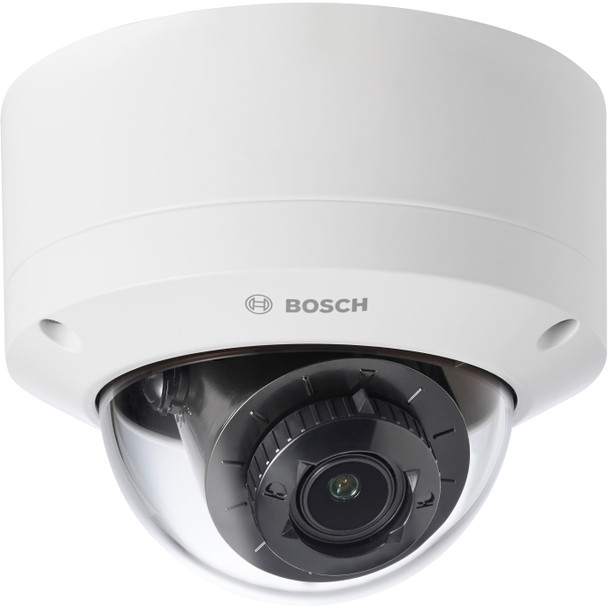

Bosch 2 Megapixel Surveillance Camera - Color - Dome (nde-5702-a)
(No reviews yet)
Write a Review
- SKU:
- 20502287
- MPN:
- nde-5702-a
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/24/2026 11:23:03 PM PST
- Stock Update:
- 01/24/2026 11:23:03 PM PST
Description
This item is brand-new, factory sealed.
Features
Impact Protection Rating:
IK10
Outdoor
IP66
IK10
Indoor/Outdoor:
Outdoor
Features:
SD Card Local Storage
Wide Dynamic Range
Day/Night
Privacy Masking
White Balance
Ingress Protection Rating:
IP66
Specs
| Power Description | |
| Input Voltage |
|
| Power Source Type |
|
| Physical Characteristics | |
| Form Factor | Dome |
| Weight (Approximate) | 2.49 lb |
| Product Color |
|
| Height | 4.8" |
| Color Family | Dual Color |
| Diameter | 5.8" |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Effective Camera Resolution | 2 Megapixel |
| Image Sensor Type | CMOS |
| Field of View | Horizontal field of view 105? - 31? Vertical field of view 57? - 18? |
| Color Supported | Color |
| General Information | |
| Brand Name | Bosch |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The camera is a versatile and professional surveillance camera for outdoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at resolution HD 1080p for highly detailed image for demanding security and surveillance network requirements. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts. The camera offers a 1/2.8'' sensor and HDR technology at HD 1080p resolution that provides high performance in extreme low light environments. The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options. Functions H.265 high-efficiency video encoding The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems. Intelligent Video Analytics Pro (IVA Pro) The camera comes with IVA Pro Buildings pre-installed and brings highly reliable deep-learning based detection and tracking of persons and vehicles to scenes ranging from sterile zones to crowded and congested. Being extremely resistant to false triggers caused by challenging environments with rain, wind (moving trees), snow, hail, and water reflections as well as shadows and bugs, it reliable detects, tracks, and classifies objects. A smart set of alarm and counter rules allows to alert you when predefined alarms are triggered, and to forensically search with high efficiently though recordings. Configuration effort is minimized and made easy by removing the need for calibration. Optionally the camera can be licensed with IVA Pro Perimeter or IVA Pro Traffic to optimize the camera analytics for specific enterprise use-cases. |
| Product Type | Network Camera |
| Product Name | Fixed Dome 2MP HDR 3.4-10.2mm IP66 |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDE5702A |
| Product Series | 5100i |
| Product Line | FlexiDome |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Video | |
| Maximum Frame Rate | 60 fps |
| Maximum Video Resolution | 1920 x 1080 |
| Video Formats |
|
| Lens | |
| Lens Type | Varifocal |
| Lens Included | Yes |
| Maximum Focal Length | 10.20 mm |
| Optical Zoom | 3x |
| Minimum Focal Length | 3.40 mm |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Protocols |
|
| Remote Management | Yes |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Maximum Operating Humidity | 100% |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Bosch 2 Megapixel Surveillance Camera - Color - Dome (nde-5702-a)
$794.76
