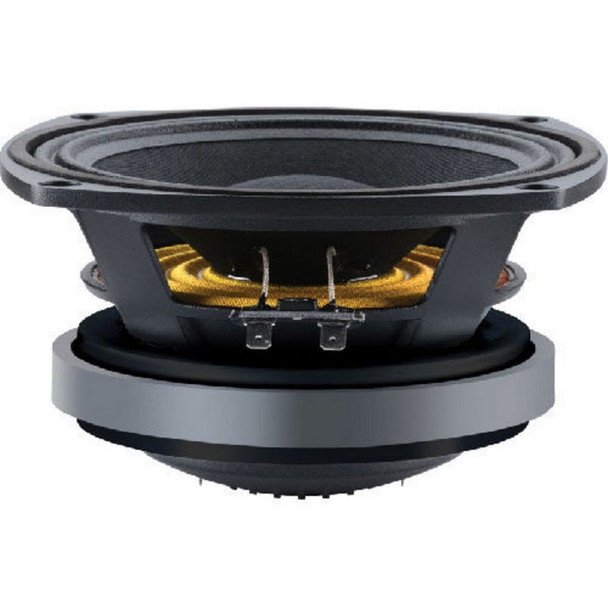

CELESTION T5931 Ftx0617 6.5 Coax Mid

This item is brand-new, factory sealed.

• FEATURES || * Brand : CELESTION || * Model Number : T5931 | FTX0617 || * Ferrite magnet assembly acts as common motor for both LF and HF || * Polyimide HF diaphragm || * Demodulation ring || * 100 nominal HF coverage || * HF repair kit available ||
• SPECIFICATIONS || Nominal diameter : 165mm / 6.5in || Power rating : 150W || Continuous power rating : 300W || Rated impedance : 8? || Sensitivity : 92dB || Frequency range : 100-6000Hz || Chassis type : Cast aluminum || Magnet type : Ferrite || Magnet weight : 0.88kg / 31oz ||
• SPECIFICATIONS || Voice coil diameter : 44mm / 1.75in || Voice coil material : Edgewound copper clad aluminium || Former material : Glass fibre || Cone material : Kevlar loaded paper || Surround material : Cloth-sealed || Suspension : Single || Gap height (Hg) : 6mm / 0.24in || VC winding height (Hvc) : 10mm / 0.4in ||
• PACKED DIMENSIONS & WEIGHT || Single pack size W x D x H : 190mm x 190mm x 128mm / 7.4in x 7.4in x 5.0in || Single pack weight : 3.5kg / 7.7lb || Multi pack qty : 8 || Multi pack size W x D x H : 350mm x 350mm x 240mm / 13.7in x 13.7in x 9.4in || Multi pack weight : 30kg / 65lb ||
• MOUNTING INFORMATION || Overall diameter : 189mm / 7.44in (max) || Overall depth : 93mm / 3.7in || Cut-out diameter : 150mm / 5.9in || Mounting hole dimensions : 6.5x5.5mm / 0.26x0.22in || Number of mounting holes : 4 || Mounting hole PCD : 173.5mm / 6.83in || Unit weight : 3kg / 6.6lb ||
