Comprehensive Cable
Comprehensive Video Extender Kit (CHEHDBTWP240K)
- SKU:
- 18492349
- MPN:
- che-hdbtwp240k
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.

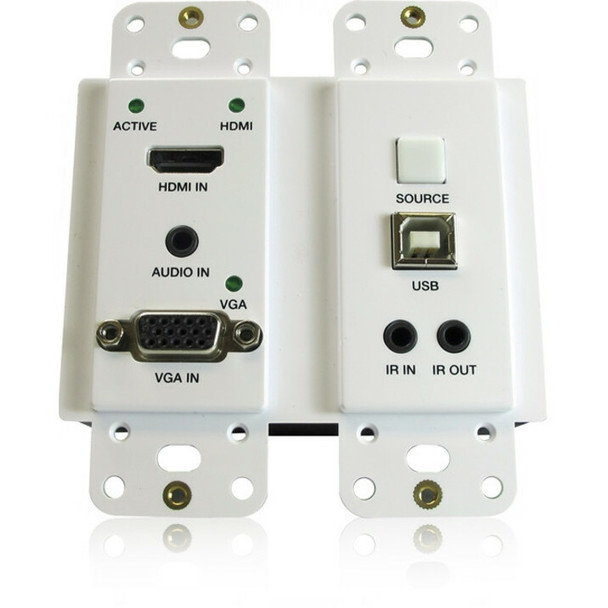

The CHE-HDBTWP240K supports HDMI, USB 2.0 and VGA with audio inputs within a standard 2-Gang US Decora wall box and can transmit HDMI signal over CAT6/6a/7 to a distance up to 131ft for 4K2K@60Hz (4:4:4) or up to 230ft for 1080p60Hz.
Built in auto switching displays the last connected device, you can use the front button controls for manual switching, or serial RS-232 option for remote control. The USB KVM function enables the USB transmission from the receiver to the transmitter. Bi-directional power allows easy connection to either the wall plate end or receiver end. HDCP and EDID are supported via HDBaseT. Supports any Windows OS and requires no driver set up.
This versatile extender kit includes 1 wall plate transmitter and 1 box style receiver and extends HDMI, USB, VGA and Stereo Audio signals up to 230ft. Connection to the wall box is easy using the 90° RJ45 cable connector. This unit comes with a 3 Year Warranty.
Package Contents:
- 1 x Wall plate transmitter
- 1 x Box style receiver
Features
- 1 x Wall plate transmitter
- 1 x Box style receiver
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | <p><b>Wall plate Transmitter: </b>Weight: .9lbs</p><p><b>Receiver </b>Weight: 1.0lbs</p> |
| Dimensions | <p>Receiver - Dimension: 6.78" x 3.83" x 0.78"</p><p>Trasnmitter - Dimension: 3.6" x 4.13" x 1.7"</p> |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | Comprehensive |
| Manufacturer Website Address | http://www.comprehensiveco.com |
| Marketing Information | The CHE-HDBTWP240K supports HDMI, USB 2.0 and VGA with audio inputs within a standard 2-Gang US Decora wall box and can transmit HDMI signal over CAT6/6a/7 to a distance up to 131ft for 4K2K@60Hz (4:4:4) or up to 230ft for 1080p60Hz. Built in auto switching displays the last connected device, you can use the front button controls for manual switching, or serial RS-232 option for remote control. The USB KVM function enables the USB transmission from the receiver to the transmitter. Bi-directional power allows easy connection to either the wall plate end or receiver end. HDCP and EDID are supported via HDBaseT. Supports any Windows OS and requires no driver set up. This versatile extender kit includes 1 wall plate transmitter and 1 box style receiver and extends HDMI, USB, VGA and Stereo Audio signals up to 230ft. Connection to the wall box is easy using the 90° RJ45 cable connector. This unit comes with a 3 Year Warranty. |
| Product Type | Video Extender Kit |
| Product Name | Video Extender Kit |
| Manufacturer | Comprehensive Connectivity Company |
| Manufacturer Part Number | CHE-HDBTWP240K |
