Comtrol Corp
Comtrol Corp 32046-3 Rocketlinx Es7510-xt 8port Poe Perp And 2port Gbe Rj45/sfp Extd Temp
(No reviews yet)
Write a Review
- SKU:
- 18145996
- MPN:
- 32046-3
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
PoE Plus Supporting High Power Devices

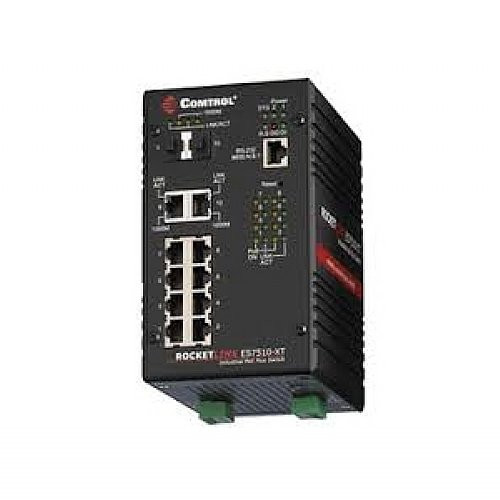

The Comtrol RocketLinx ES7510-XT managed industrial PoE Plus switch is designed to meet the high power and advanced management needs of critical traffic applications such as real-time IP video surveillance and wireless communication utilizing outdoor rated IP cameras and high power IEEE 802.11 access points. Featuring a rugged design for harsh environments, intuitive web, CLI, SNMP management options, power scheduling and eight fully compliant IEEE 802.3at PoE injector ports, the ES7510-XT is easily installed in industrial settings and traffic cabinets supporting even the most power intensive devices such as IP cameras with heaters and pan/tilt/zoom controls.
Package Contents:
- RocketLinx ES7510-XT Industrial PoE Plus Switch
- Quick Installation Guide
- Software/Documentation CD
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
- RocketLinx ES7510-XT Industrial PoE Plus Switch
- Quick Installation Guide
- Software/Documentation CD
Certifications & Standards:
- CE
- cUL
- UL
- IEEE 1588
- IEC 61373
- NEMA TS2
IEEE Standards:
- 802.3af
- 802.3at
- 802.3
- 802.3u
- 802.3u
- 802.3ab
- 802.3z
- 802.1Q
- 802.1p
- 802.1D
- 802.1s
- 802.3ad
- 802.3x
- 802.1x
- 802.1AB
Emissions:
- European Standard EN55022
- AS/NZS CISPR 22
- FCC Part 15 Subpart B
- Class A limit
Immunity:
- European Standard EN55024
- IEC 1000-4-2/EN61000-4-2: ESD
- IEC 1000-4-3/EN61000-4-3: RF
- IEC 1000-4-4/EN61000-4-4: Fast Transient/ Burst
- IEC 1000-4-5/EN61000-4-5: Surge
- IEC 1000-4-6/EN61000-4-6: Conducted Disturbance
- IEC 1000-4-6/EN61000-4-8: Magnetic Field
- IEC 1000-4-6/EN61000-4-11: DIPS and Voltage Variations
Safety:
- IEC 60950/EN60950 (LISTED)
- CSA C22.2 No. 60950/UL60950 Third edition
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Management & Protocols | |
| Management | <ul><li>CLI</li><li>QoS</li><li>SNMP v1/v2c/v3</li><li>RMON 1, 2, 3, and 9</li><li>Syslog</li><li>VLAN</li><li>MIB</li><li>Web Based Management</li></ul> |
| Manageable | Yes |
| Power Description | |
| Redundant Power Supply Supported | No |
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Weight (Approximate) | 2.85 lb |
| Height | 3.7" |
| Width | 6.3" |
| Depth | 5" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Bypass | No |
| USB | No |
| Stack Port | No |
| Management Port | Yes |
| Total Number of Network Ports | 8 |
| Modular | No |
| Token Ring Port | No |
| LRE Port | No |
| Number of PoE+ (RJ-45) Ports | 8 |
| Number of Network (RJ-45) Ports | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Expansion Slot Type | SFP |
| General Information | |
| Brand Name | Comtrol |
| Manufacturer Website Address | http://www.comtrol.com |
| Marketing Information | PoE Plus Supporting High Power Devices The Comtrol RocketLinx ES7510-XT managed industrial PoE Plus switch is designed to meet the high power and advanced management needs of critical traffic applications such as real-time IP video surveillance and wireless communication utilizing outdoor rated IP cameras and high power IEEE 802.11 access points. Featuring a rugged design for harsh environments, intuitive web, CLI, SNMP management options, power scheduling and eight fully compliant IEEE 802.3at PoE injector ports, the ES7510-XT is easily installed in industrial settings and traffic cabinets supporting even the most power intensive devices such as IP cameras with heaters and pan/tilt/zoom controls. |
| Product Type | Ethernet Switch |
| Product Name | RocketLinx ES7510-XT Industrial PoE Plus Switch |
| Manufacturer | Comtrol Corporation |
| Manufacturer Part Number | 32046-3 |
| Product Model | ES7510-XT |
| Product Line | RocketLinx |
| Media & Performance | |
| Ethernet Technology |
|
| Media Type Supported | Twisted Pair |
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
| Reliability | |
| MTBF | 446108 Hour |
Warranty Information
