Comtrol Corp. 32101-9 Rocketlinx Ps1060 24v 60w 24v Din Rail Power Supply (321019)
(No reviews yet)
Write a Review
- SKU:
- 18153100
- MPN:
- 32101-9
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.

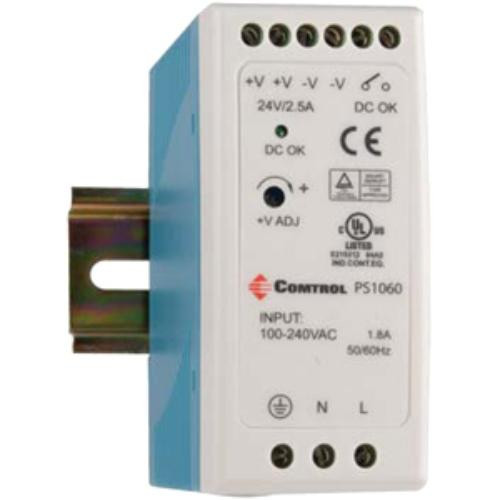

The PS1060 product is a slim-design, DIN rail mounted Class I switching power supply featuring fully isolated plastic cases, extended operating temperatures from -20 to 70C and 88% efficiency.
Features
Additional Information:
Yes
Restriction of Hazardous Substances (RoHS)
- Voltage Adjustable Range 24 - 30VDC
- Screw Terminals Connector
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Output Power | 60 W |
| Output Current | 2.50 A |
| Input Voltage Range | 85 V AC - 264 V AC |
| Input Voltage |
|
| Output Voltage Detail | 24 V DC @ 2.5 A |
| Output Voltage | 24 V DC |
| Input Current |
|
| Input Voltage Type | AC |
| Physical Characteristics | |
| Weight (Approximate) | 9.76 oz |
| Height | 3.9" |
| Width | 3.5" |
| Depth | 1.6" |
| General Information | |
| Brand Name | Comtrol |
| Manufacturer Website Address | http://www.comtrol.com |
| Marketing Information | The PS1060 product is a slim-design, DIN rail mounted Class I switching power supply featuring fully isolated plastic cases, extended operating temperatures from -20° to 70°C and 88% efficiency. |
| Product Type | Proprietary Power Supply |
| Product Name | PS1060 Switching Power Supply |
| Manufacturer | Comtrol Corporation |
| Manufacturer Part Number | 321019 |
| Product Model | PS1060 |
| Technical Information | |
| Efficiency | 88% |
| Protection Type |
|
| Reliability | |
| MTBF | 299790.80 Hour |
