Cooler Master
Cooler Master MasterLiquid PL360 Flux - 4.72" Maximum Fan Di (MLYD36MA23PZR1)
(No reviews yet)
Write a Review
- SKU:
- 18865975
- MPN:
- mly-d36m-a23pz-r1
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/11/2026 04:40:14 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $145.90 each 145.9 |
| Buy 3 or above | and pay only $143.37 each 143.37 |
- Stock Update:
- 03/11/2026 04:40:14 AM PST
Description
This item is brand-new, factory sealed.
COOLING UNCOMPROMISEDCooler Masters Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.

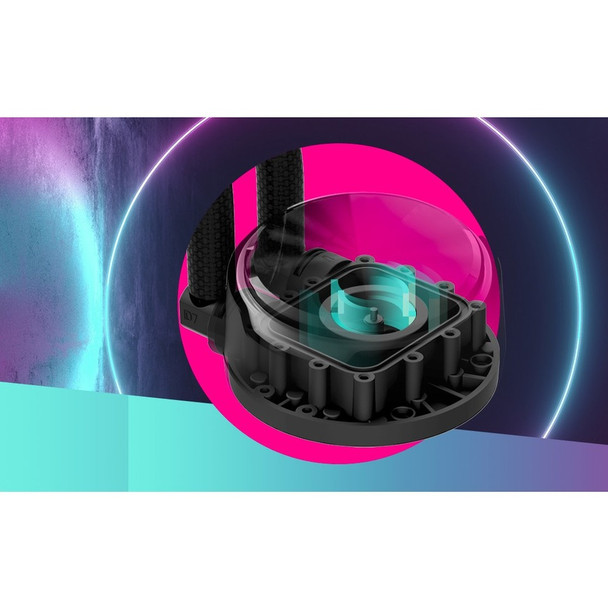

PREMIUM DUAL CHAMBER PUMP
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.
FINE TUNED PERFORMANCE RATIO

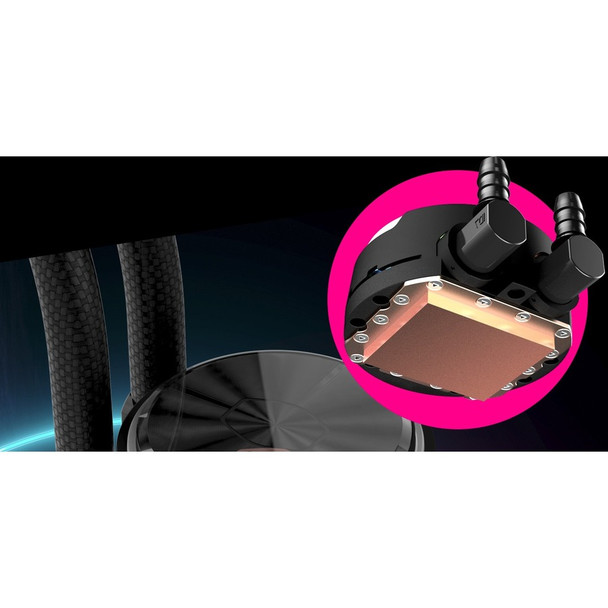

Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.
ULTIMATE HEAT EXCHANGE
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
SLIM & SLEEK RADIATOR
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
REDESIGNED FLUX SERIES FAN
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.
DUAL LOOP ARGB PUMP
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.
ADDRESSABLE GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Masters MasterPlus+ software to customize individual LED colors, effects, brightness and more all from an intuitive, convenient interface. Exterior Color
Black CPU Socket
LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4 Radiator Material
Aluminum Pump MTTF
>210,000 hours Pump Noise Level
15 dBA (Max) Pump Connector
4-Pin (PWM) Pump Rated Voltage
12 VDC Pump Power Consumption
6W Fan Quantity
3 PCS Fan LED Type
Addressable Gen 2 RGB Fan Speed
0-2300 RPM +/- 10% Fan Airflow
72.37 CFM (Max) Fan Noise Level
32 dBA Fan Pressure
2.96 mmH2O (Max) Fan Bearing Type
ORBS Fan Life Expectancy
>160,000 Hours Fan Power Connector
4-Pin (PWM) Fan Rated Voltage
12VDC Fan Rated Current
0.15A Fan Safety Current
0.3A
Features
Application/Usage:
China
Motherboard
Processor
Country of Origin:
China
Specs
| Power Description | |
| Rated Current | 150 mA |
| Physical Characteristics | |
| Maximum Fan Diameter | 4.72" |
| Radiator Material | Aluminum |
| Radiator Depth | 1.07" |
| Fan Width | 4.72" |
| Product Color | Black |
| Radiator Width | 4.71" |
| Color Family | Black |
| Fan Height | 0.98" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Connectors |
|
| Fan Information | |
| Fan Speed (Min) | 0 rpm |
| Fan Life | 18.3 Year |
| Number of Fans | 3 |
| Fan Bearing Type | ORBS |
| LED Color | ARGB |
| Noise Levels | 32 dB |
| Maximum Airflow | 122.96 CFM |
| Maximum Air Pressure | 2.96mmH2O |
| Fan Speed (Max) | 2300 rpm |
| General Information | |
| Brand Name | Cooler Master |
| Manufacturer Website Address | http://www.coolermaster-usa.com |
| Marketing Information | Cooler Master's MasterLiquidPL360 Flux is the new embodiment of enhanced performance cooling. The dual chamber pump has further honed flow and pressure to target hot spots for rapid and precise heat dissipation. Surface area of the copper base and microchannelshave been calculated for a superior heat transfer ratio. Equipped with new Sickleflow fan blades with an interconnecting loop delivering high speed performance, the fan fine is tuned to produce an optimized sound output. It also integrates new Addressable Gen 2 RGB for support with major motherboard manufactures, customizable with both the included Addressable Gen 2 RGB controller and Cooler Master's MasterPlus+ software. Dual Chamber Pump New Compact Performance Dual Chamber pump delivers the perfect balance of water flow and pressure for impressive cooling. Enhanced Air Balance Fan Blades 120 mm square frame ARGB fan designed with inter-connecting air balance fan blades uniquely modified for the PL-Flux Series. Slim & Sleek Radiator Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly. Ultimate Heat Exchange High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange. Superior Performance Ratio Precision engineered ultra-thin spaded fins maximizes microchannels accurately targets heat spots. Enlarged copper base surface area optimized with ideal base thickness accelerates heat transfer. PL-Flux specific fans Inter-conneting air balance fan blades increased sturdiness and stability operating steadily at high speed. Angled inner rim of fan frame increasing intake of air, at the same time gap between from and blades creating greater air pressure. |
| Product Type | Cooling Fan/Radiator/Pump |
| Product Name | MasterLiquid PL360 Flux |
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | MLY-D36M-A23PZ-R1 |
| Product Line | MasterLiquid PL360 Flux |
| Heatsink Information | |
| Cooler Type | Liquid Cooler |
| Compatible Intel Socket |
|
| Compatible AMD Socket |
|
Warranty Information
