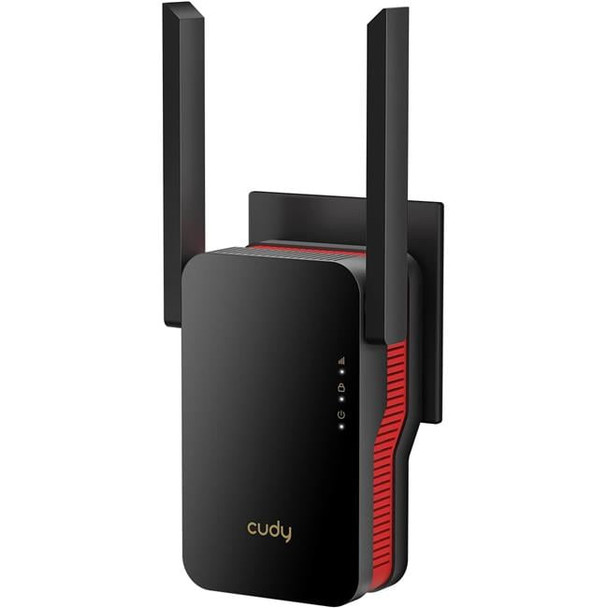

Cudy RE3000 AX3000 Dual Band Wi-Fi 6 Range Extender

This item is brand-new, factory sealed.

AX3000 Mesh Wi-Fi 6 Range Extender

A range extender featuring high-capacity AX3000 WiFi 6 and a Gigabit Ethernet port. Press WPS buttons to expand existing Wi-Fi instantly.


Works with Any Wi-Fi Router

Dual-Band Wi-Fi 6

1 Gigabit Ethernet Port

50 Connected Devices ¹

Cudy Mesh Satellite

Multi-Band Simultaneous Backhaul

Ethernet Backhaul


^1.Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet. CPU
CPU Details
1.3 GHz Dual-Core, ARM Cortex-A53 Memory/Storage
Flash/ROM
16 MB (128 Mbit) NOR
DDR/RAM
256 MB (2 Gbit) DDR3 Wireless
5 GHz Wi-Fi Speed
2402 Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
3T3R (3x3 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
2x Fixed, 1 x Internal
2.4 GHz Antenna Gain Max
2.1dBi
5 GHz Antenna Gain Max
3.9dBi
FEM or PA/LNA
5 GHz: 3x Internal
2.4 GHz: 2x Internal
Range Performance
Max: 150 m (492 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 20 cm (7) Interfaces
Gigabit RJ45 Ports
1
LED
Signal Strength
WPS
Power
Physical Buttons
WPS Button
Reset Button
Power Input
AC Plug
Power Input Note
EU, US, UK Plug are Available Power
Power Methods
AC
AC
100V to 240V Reliability
Environment
Operating Temperature: 0 ^oC to 50 ^oC (32 ^oF to 122 ^oF)
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing Certifications
FCC, CE Mechanical
Install in a Daisy Chain
Recommend to install less than 3 repeaters in a wireless chain.
Installation
Plug-In-Socket
Casing Material
Plastic Package Content
RE3000
Installation Guide Wireless
Wi-Fi Standards
Wi-Fi 6
Max Wi-Fi Modulation
1024-QAM
Wi-Fi Efficiency
OFDMA
MU-MIMO
BSS Color
Max Capacity
512
Recommended Client Upper Limit
50
Max Wi-Fi Channel Width
160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
WPS
True General
Operation Modes
Access Point
Range Extender
Mesh
Cudy Mesh Satellite
Mesh Backhaul
Wireless Backhaul
Wired Backhaul
Multi-Band Backhaul
True System
LED Control
True
Local Control Method
Config Web Page
App Control
Remote Control Method
App Control
Firmware Upgrade
Local Update
App (Over the Air)
Online Update
Reliability
Timed Reboot
Backup and Restore Dashboard
Panel
Connected Devices
Host Network Status
Wi-Fi Status
LAN Status
System Version System
Diagnostic Tools
Ping
Traceroute
NSLookup
System Log
Languages
English
Bengali
Catalan
Czech
German
Greek
Spanish
French
Hebrew
Croatian
Hungarian
Italian
Japanese
Khmer
Korean
Dutch
Norwegian
Polish
Portuguese
Romanian
Russian
Slovak
Swedish
Thai
Turkish
Ukrainian
Vietnamese
Simplified Chinese
Traditional Chinese Dashboard
Charts
Mesh Topology General
Internet Failover Sequence
Wired
WirelessItem Dimension (L inchxW inchxH inch)
7 x 5 x 4

Weight
2.00 lb

Warranty Information
2 years
