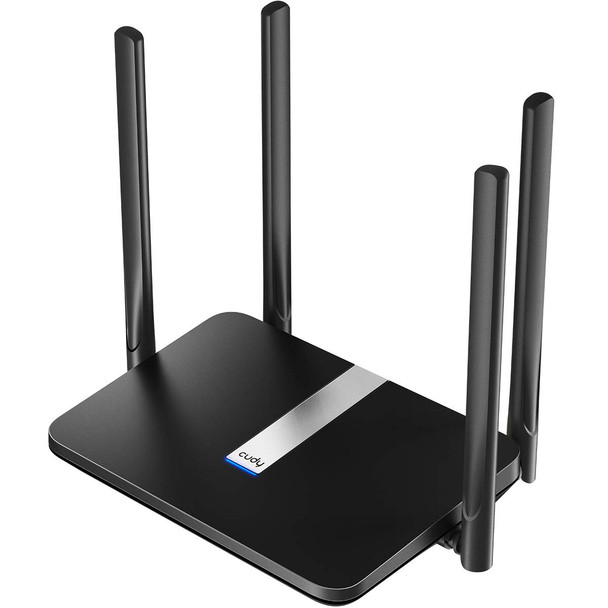

Cudy 296072 4G LTE WiFi Router

This item is brand-new, factory sealed.

Turn Everywhere 4G into High-Speed Wi-Fi

Plug in a nano SIM card and connect 4G with a DL speed of up to 150 Mbps. Share the connection via a high-speed dual-band AC1200 Wi-Fi for more than 40 devices.

Stable Internet. Online Guaranteed.

Reliable Wired Sharing over Four Ethernet Ports

Share network via four 10/100 Mbps Ethernet ports, providing stable connections to TV, PC, console, and printers.

Stay Connected

Add redundancy to your network with WAN/WISP/4G connection backup, ideal for surveillance and retail use to protect your business.

East Setup. Versatile Functions.

Online Management

Set a WiFi schedule and a blacklist of domains or IPs to prevent inappropriate content and protects your kids.

VPN

Grab your files conveniently from the remote network with ZeroTier/WireGuard/ OpenVPN/IPSec/L2TP/PPTP.

DDNS

DDNS binds a domain to your network so you can always access your network without a static IP address.

High-Gain Antennas

Delivers stable performance with high-gain antennas, for decent web browsing and video streaming.

Plug in a SIM Card to Enjoy the Network

Home

Plug and play easy-to-install WiFi for every homeno rigid broadband subscription is required.

Automobile

Provide decent networks for all devices on your road journey.Hardware Specs
Model Version
LT500 3.0CPU
CPU Details
580 MHZ Single-Core, MIPS24KECMemory/Storage
Flash/ROM
16 MB (128 Mbit) NOR
DDR/RAM
128 MB (1 Gbit) DDR2Cellular
Cellular Standards
4G Cat. 4
Cellular Antennas
2x Fixed
SIM Options
1x Nano SIM Slot
Available Versions
EU, US, LA, CNEU Version Cellular
Suitable Region
Europe, Middle East, Africa
Max DL Speed
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced
DL 2x2 MIMO
Cellular Bands
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8US Version Cellular
Suitable Region
United States, Canada
Max DL Speed
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced
DL 2x2 MIMO
Cellular Bands
LTE-FDD: B2/4/5/12/13/17/25/26
LTE-TDD: B41
WCDMA: B2/4/5CN Version Cellular
Suitable Region
China, India
Max DL Speed
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced
DL 2x2 MIMO
Cellular Bands
LTE-FDD: B1/3/5/8
LTE-TDD: B34/38/39/40/41
WCDMA: B1/5/8LA Version Cellular
Suitable Region
Latin America
Max DL Speed
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced
DL 2x2 MIMO
Cellular Bands
LTE FDD: B1/2/3/4/5/7/8/28/66
LTE TDD: B40
WCDMA: B1/2/4/5/8
GSM: B2/3/5/8Wireless
5 GHz Wi-Fi Speed
867 Mbps
2.4 GHz Wi-Fi Speed
300 Mbps
5 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
2x Fixed
Beamforming
True
FEM or PA/LNA
5 GHz: 2x Internal
2.4 GHz: 2x Internal
Range Performance
Max: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
One wooden walls with thickness < 10 cm (4")
One concrete wall with thickness < 10 cm (4")Interfaces
Physical Buttons
WPS Button
Reset Button
10/100 Mbps RJ45 Ports
4
Ethernet Notes
1x RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LED
System
Speed/Link/ACT of Ethernet Port
Power Input
DC JackPower
Power Methods
DC
DC Input
12V 1A
Power Adapter
Input: 100 to 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W)
5.27W
Idle Power Consumption (W)
2.33WReliability
EMC
ESD: Contact: 4kV, Air: 8kV
Environment
Operating Temperature: 0 ^oC to 40 ^oC (32 ^oF to 104 ^oF)
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensingCertifications
FCC, CEMechanical
Installation
Desktop
Wall-mountPackage Content
LT500
Power Adapter
Ethernet Cable
Installation GuideSoftware Specs
Wireless
Wi-Fi Standards
Wi-Fi 5
Max Wi-Fi Modulation
256-QAM
Wi-Fi Efficiency
MU-MIMO
Wi-Fi Efficiency Note
MU-MIMO available on 5 GHz
Max Capacity
128
Recommended Client Upper Limit
40
Max Wi-Fi Channel Width
80 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2.4 GHz, 5 GHz
WPS
TrueGeneral
Operation Modes
Cellular Router
Wi-Fi Router
WISP
Mesh
Cudy Mesh Main
Mesh Backhaul
Wireless Backhaul
Wired Backhaul
Cellular APN
Band Select (Band Lock)
Cellular Mode Select
Data Roaming
APN Profile
Manual APN Profile
MBN
MTU Value
Cellular Mode
4G Only
Auto
WAN Mode
DHCP
Static IP
PPPOE
Internet Failover Sequence
WAN
WISP
CellularNetwork
QoS
Per-User Rate Limiting
DHCP
Address Reservation
DHCP Client List
Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
IPTV/VLAN
Bridge
Tag VLAN
TTL Customization
Extend
Spoof
Custom
IGMP
IGMP Proxy
IGMP Snooping
Forwarding
Port Forwarding
Port Triggering
UPnP
DMZ
Firewall
SPI Firewall
DoS Protection
Block PING
Application Layer Gateway
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP PassthroughUtilities
VPN Server
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
VPN Client
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
DNS Options
DNS over TLS
Manual DNS
Rebind Protection
Override Clients DNS
DNS over TLS Providers
Cloudflare
Google
Quad9
Custom
Wake on LAN
True
Online Detection
TrueManagement
Parental Controls
Profiles Settings
Offline Time
Online Time
Pause the Internet
Web Filter
All Devices Management
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management
Internet On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management
Domain Filter
IP Filter
