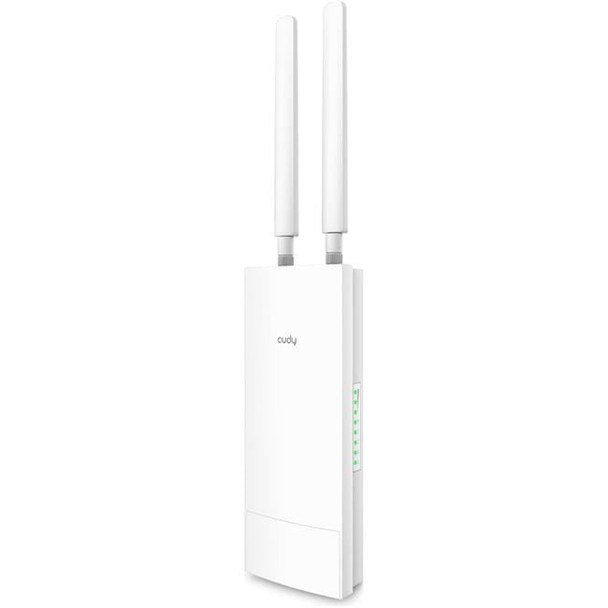

Cudy LT700 OUTDOOR Outdoor 4G LTE AC1200 Gigabit Router LT700 OUTDOOR

This item is brand-new, factory sealed.

Super-Fast 4G LTE-A and AC1200 Wi-Fi
With 2-Carrier Aggregation, LT700 Outdoor utilizes two carrier bands and provides 4G speed up to 300 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 50 devices.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Outdoor Full-Bar 4G Signal Brings High-Quality Wi-Fi
Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.
Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.
Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or office with a better Wi-Fi signal. AP needs to be purchased separately.
Install Extension Antennas
The default 4G antennas are as sensitive as a standard phones antennas. You can still replace them with customized ones via the SMA connectors.Model Version
LT700 Outdoor 1.0CPU
CPU Details
880 MHz Dual-Core, MIPS1004KcMemory/Storage
Flash/ROM
16 MB (128 Mbit) NOR
DDR/RAM
128 MB (1 Gbit) DDR3Cellular
Cellular Standards
4G LTE Cat. 6
Cellular Antennas
2x Detachable
Detachable Cellular Antennas Connector
SMA Female
SIM Options
1x Nano SIM Slot
Available Versions
EU, USEU Version Cellular
Suitable Region
Europe, Middle East, Africa, Australia, Brazil
Max DL Speed
300 Mbps (LTE-FDD), 220 Mbps (LTE-TDD)
Max UL Speed
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced
DL 2CA, DL 2x2 MIMO
Cellular Bands
LTE-FDD: B1/3/5/7/8/20/28/32
LTE-TDD: B38/40/41
WCDMA: B1/5/8US Version Cellular
Suitable Region
United States, Canada
Max DL Speed
300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
Max UL Speed
50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
Advanced
DL 2CA, DL 4x4 MIMO
Cellular Bands
LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71
LTE-TDD: B41/48Wireless
5 GHz Wi-Fi Speed
867 Mbps
2.4 GHz Wi-Fi Speed
300 Mbps
5 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
2x Internal
Beamforming
True
FEM or PA/LNA
5 GHz: 2x Internal
2.4 GHz: 2x Internal
Range Performance
Max: 170 m (558 ft)
Park: 150 m (492 ft)
Street: 50 m (164 ft)
Woods: 30 m (98 ft)
Wall Performance
NAInterfaces
Physical Buttons
Reset Button
Gigabit RJ45 Ports
1
Ethernet Notes
Accepts PoE powering
LED
System
Internet
LAN
Wi-Fi
Cellular Signal Strength
Power Input
PoE via Ethernet PortPower
Power Methods
802.3at/af PoE
Passive PoE
Passive PoE Input
48-57V
Power Adapter
Input: 100 - 240 V, 50/60 Hz AC
Output: 48V 0.32A DCReliability
EMC
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV RJ45: CM 4kV
Environment
Operating Temperature: -20 ^oC - 60 ^oC (-4 ^oF -140 ^oF)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ^oC - 70 ^oC (-40 ^oF - 158 ^oF)
Storage Temperature: -40 ^oC - 70 ^oC (-40 ^oF - 158 ^oF)
Operating Humidity: 0% - 100% non-condensing
Storage Humidity: 5% - 90% non-condensingCertifications
FCC, CEMechanical
Installation
Wall-mount
Pole-mountPackage Content
LT700 Outdoor
Detachable Antennas
PoE Adapter
Power Cord
Mounting Kit
Ethernet Cable
Installation GuideReliability
Ingress Protection Rating
IP65Item Dimension (L"xW"xH")
13 x 5 x 4

Weight
2.05 lbs

Warranty Information
2 years
