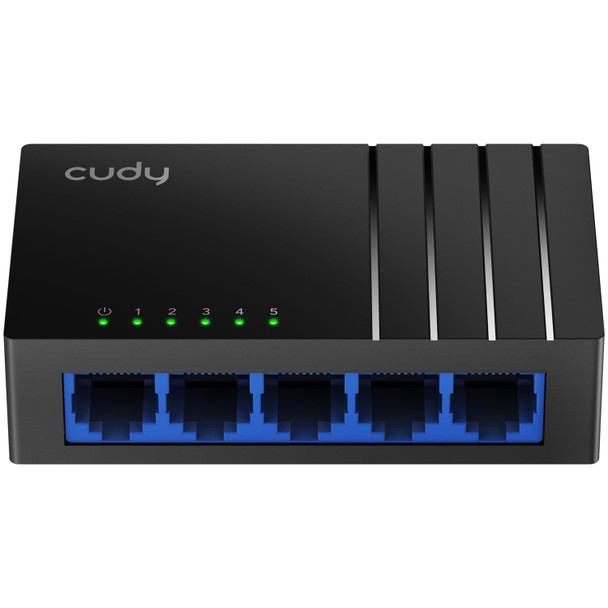

Cudy GS105D 5-Port Gigabit Unmanaged Switch

This item is brand-new, factory sealed.

Super-Fast Gigabit

Five 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.


Extra Transmission Distance

140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.


Saves Power

Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.


Wall Mounting

Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.


Compact Size. Modern Design.

Compact enough to fit in most home network distribution boxes. The wave line and blue ports cast a modern aesthetic. Model Version
GS105D 5.0 Interfaces
Gigabit RJ45 Ports
5

LED
Power
Speed/Link/Act of Each Ethernet Port

Power Interfaces
DC Jack Performance
Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 140 meters at Gigabit

MAC Address Table
2048

Max Switching Capacity
10 Gbps

Max Forwarding Rate
7.44 Mpps

Jumbo Frame
9 KB

Packet Buffer
1 Mbit Power
Basic Power Saving
True

Power Methods
DC

Power Input
5V Direct Current 0.55A

Power Adapter in the Box
Input: 100-240ACV, 50/60Hz
Output: 5V Direct Current 0.55A

Max Power Consumption
1.2W

Idle Power Consumption
0.2W Switching
802.3 Protocols
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T

L2 Features
IGMP Snooping Reliability
EMS
IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV, Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV

Environment
Operating Temperature: 0 ^oC to 40 ^oC (32 ^oF to104 ^oF)
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 sup>oF)
Operating Humidity: 10% to 90% non-condensing

Storage Humidity: 5% to 90% non-condensing Mechanical
Casing Material
Plastic

Installation
Desktop
Wall-mount Package Content
GS105D
Power Adapter
Installation GuideItem Dimension (L inchxW inchxH inch)
4 x 4 x 3

Weight
1.00 lb

Warranty Information
2 years
