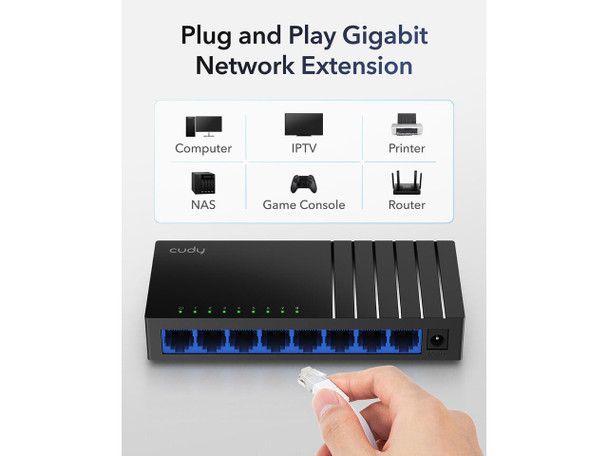

Cudy GS108D 8-Port Gigabit Unmanaged Switch Plastic Case

This item is brand-new, factory sealed.

8-Port Gigabit Unmanaged Switch
GS108D 4.0
A 8-GbE long-distance switch with modern design.
8x Gigabit Ethernet Ports
Max 170m Gigabit Transmission
4 Mbit Packet Buffer
Max 2.75W, Idle 2.2W

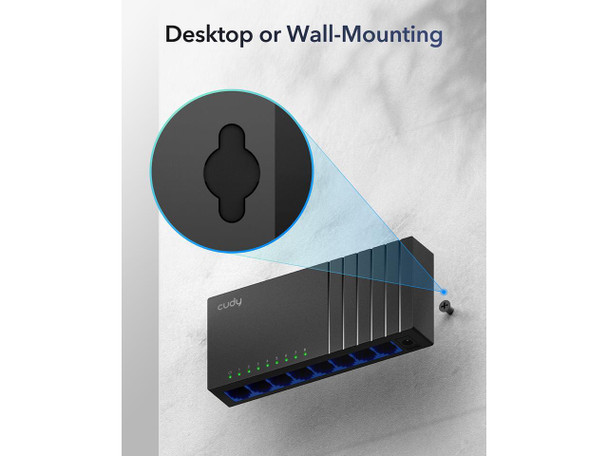

Desktop, Wall-Mount
88x52.5x24 mm (3.46x2.07x0.94)
87 g (3.07 oz.)Model Version
GS108D 4.0Interfaces
Gigabit RJ45 Ports
8
LED
Power
Speed/Link/ACT of Each Ethernet Port
Power Input
DC JackPerformance
Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 170 meters at Gigabit
MAC Address Table
8192
Max Switching Capacity
16 Gbps
Max Forwarding Rate
11.904 Mpps
Jumbo Frame
15 KB
Packet Buffer
4 MbitPower
Basic Power Saving
True
Power Methods
DC
DC
5V Direct Current 0.55A
Power Adapter
Input: 100-240V, 50/60Hz
Output: 5V Direct Current 0.55A
Max Power Consumption
2.75W
Idle Power Consumption
2.2WSwitching
802.3 Protocols
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
L2 Features
IGMP Snooping
Loop PreventionReliability
EMSIEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment
Operating Temperature: 0 ^oC - 40 ^oC (32 ^oF -104 ^oF)
Storage Temperature: -40 ^oC - 70 ^oC (-40 ^oF - 158 ^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensingMechanical
Casing Material
Plastic
Installation
Desktop
Wall-mountPackage Content
GS108D
Power Adapter
Installation GuideItem Dimension (L"xW"xH")
7 x 4 x 3

Weight
1 lb

Warranty Information
2 years
