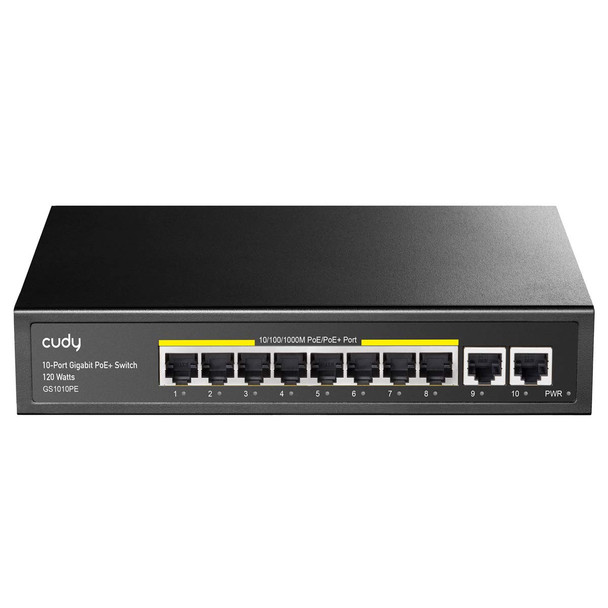

Cudy GS1010PE 10-Port Gigabit PoE+ Switch

This item is brand-new, factory sealed.

IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.


PoE Auto Recovery

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.


VLAN Isolates Downlink Ports for Improved Safety

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.


Extend for 250 m Transmission

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.


Build Robust Systems with Outstanding EMC

Improves service reliability and reduces downtime caused by power surges and ESD.

ESD: Contact 6kV; Air 8kV

Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV


Shielded Ports. Solid Metal Casing.

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing. Model Version
GS1010PE 2.0 Interfaces
Gigabit RJ45 Ports
10

Gigabit RJ45 PoE Ports
Number1 to Number8

Max Power on a Single PoE Port
30W

PoE Port Notes
The PoE ports comply with IEEE 802.3at/af standards.

PoE Priority
Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.

Shielded RJ45 Port
True

Extend Mode Ports
Number1 to Number8

VLAN Mode Ports
Number1 to Number8

LED
Power
PoE Status of Each PoE Port
Link/ACT of Each Ethernet Port
PoE Max Status

Power Interfaces
AC Inlet

Physical Buttons
Extend On/Off
VLAN On/Off
PoE Watchdog On/Off
PoE LED Toggle

Physical Buttons Note
The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. Performance
Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note
250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.

MAC Address Table
2048

Max Switching Capacity
20 Gbps

Max Forwarding Rate
14.88 Mpps

Jumbo Frame
9 KB

Packet Buffer
1 Mbit Power
Power Methods
AC

Power Input
100-240ACV 50/60Hz

Power Supply
120W

Max Power Excluding PoE
5W Switching
802.3 Protocols
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3x Flow Control
802.3af PoE
802.3at PoE

PoE Management
Intelligent Power Management Reliability
Grounding Methods
Three-Prong Plug

EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV, RJ45: CM 4kV

Environment
Operating Temperature: 0 to 40 ^oC (32 to 104 ^oF)
Storage Temperature: -40 to 70^oC (-40 to 158 ^oF)
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 10 to 95% non-condensing Mechanical
Casing Material
Metal

Installation
Desktop
Rackmount via Brackets (Brackets not included in the box) Package Content
GS1010PE
Power Cord
Installation GuideItem Dimension (L inchxW inchxH inch)
12 x 8 x 3

Weight
3.00 lb

Warranty Information
2 years
