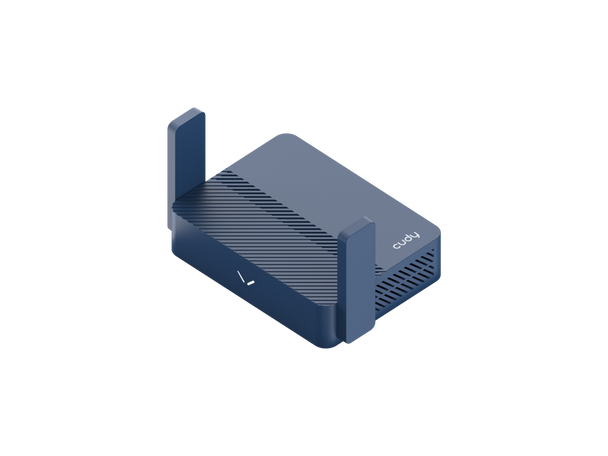

Cudy TR3000 AX3000 2.5G Wi-Fi 6 Router

This item is brand-new, factory sealed.

AX3000 2.5G Wi-Fi 6 Mini VPN Router
TR3000 1.0
A USB-C powered mini WiFi 6 router ideal for encrypt connections back to the office, sharing paid WiFi, and hosting a file server.
1.3 GHz Dual-Core CPU
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi
1x 2.5GbE and 1x GbE
1x USB 3.0 Port
Powering via USB-C
160 g (5.64 oz.)
Cudy Mesh, VPN Server and Client
Cudy App, Cloud ControlModel Version
TR3000 1.0CPU
CPU Details
1.3 GHz Dual-Core, ARM Cortex-A53Memory/Storage
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR3Wireless
5 GHz Wi-Fi Speed
2402 Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
2x Fixed, 1x Internal
FEM or PA/LNA
5 GHz: 3x Internal
2.4 GHz: 2x Internal
Beamforming
True
Range Performance
Max: 180 m (591 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)Interfaces
2.5G RJ45 Ports
1
Gigabit RJ45 Ports
1
Ethernet Notes
The 2.5G port is WAN port, the Gigabit port is LAN port
USB-A 3.0 Ports
1
LED
System
Physical Buttons
Reset Button
Configurable DIP Switch
Power Input
USB-C PortPower
Power Methods
DC / PD
DC Input
5V 3A, PD
Power Adapter
Input: 100 - 240 V, 50/60 Hz AC
Output: 5V 3A DC
Max Power Consumption (W)
11.5w
Idle Power Consumption (W)
4.2wReliability
Environment
Operating Temperature: 0 ^oC - 40 ^oC (32 ^oF -104 ^oF)
Storage Temperature: -40 ^oC - 70 ^oC (-40 ^oF - 158 ^oF)
Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 95% non-condensingCertifications
FCC, CEMechanical
Installation
DesktopPackage Content
TR3000
Power Adapter
Ethernet Cable
Installation GuideItem Dimension (L"xW"xH")
8 x 6 x 3

Weight
2 lbs

Warranty Information
2 years
