Cudy 302845 WiFi 7 Router

This item is brand-new, factory sealed.

Powerful CPU. Super-Responsive.

Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Enhanced OFDMA

-Fast Response for Multiple Devices

Featuring smarter Multi-RU and Puncturing spectrum reuse technology, WR6500 significantly boosts interference resistance, optimizes spectrum usage, and ensures lower latency for gaming, calls, and web browsing across multiple devices.

Optimal Wi-Fi Range for Extra Rooms

The high-gain antennas with Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices, delivering faster speeds and greater stability throughout your home or office.

Seamless Whole-Home Wi-Fi

One network, no switching needed. Easy setup with wireless pairing or auto wired connections. Seamless switching for smooth whole-home coverage.

Parental Controls

Set Wi-Fi schedules and block inappropriate content to keep your family safe online. Easily manage multiple devices with customization profiles.Hardware Specs
Model Version
WR6500H 1.0CPU
CPU Details
2.0 GHz Quad-core, ARM Cortex-A7Memory/Storage
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR4Wireless
5 GHz Wi-Fi Speed
5765 Mbps
2.4 GHz Wi-Fi Speed
688 Mbps
5 GHz Wi-Fi Streams
4T4R (4x4 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
6x Fixed
FEM or PA/LNA
5 GHz: 4x External
2.4 GHz: 2x Internal
Beamforming
True
Range Performance
Max: 240 m (787 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4")
One concrete wall with thickness < 20 cm (7") or two concrete walls with thickness < 10 cm (4")Interfaces
2.5G RJ45 Ports
1
Gigabit RJ45 Ports
4
Ethernet Notes
The 2.5G port is WAN port, the Gigabit ports are LAN ports
LED
System
Internet
Wi-Fi
WPS
Physical Buttons
Power On/Off Button
WPS Button
Reset Button
Power Input
DC JackPower
Power Methods
DC
DC Input
12V 1.5A
Power Adapter
Input: 100 to 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
Max Power Consumption (W)
17WReliability
Environment
Operating Temperature: 0 ^oC to 40 ^oC (32 ^oF to 104 ^oF)
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensingCertifications
FCC, CEMechanical
Installation
Desktop

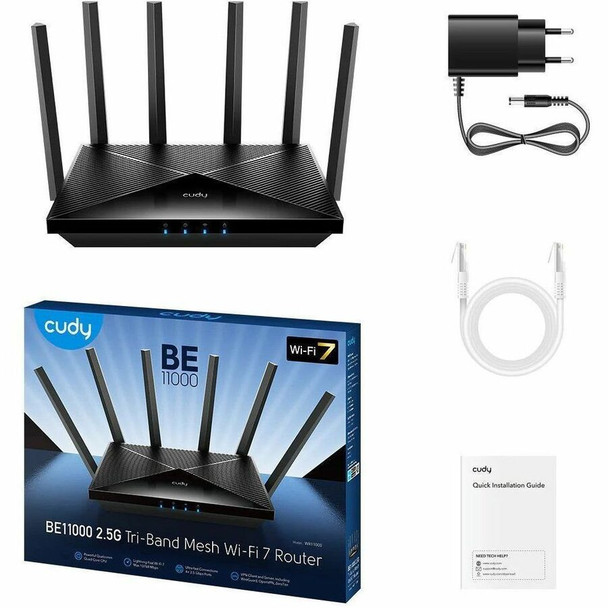

Wall-mountPackage Content
WR6500H
Power Adapter
Ethernet Cable
Installation GuideSoftware Specs
Wireless
Wi-Fi Standards
Wi-Fi 7
Max Wi-Fi Modulation
4K-QAM
Wi-Fi Efficiency
MLO
MRU
Puncturing
OFDMA
MU-MIMO
BSS Color
Max Capacity
512
Recommended Client Upper Limit
200
Max Wi-Fi Channel Width
160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2.4 GHz, 5 GHz
WPS
TrueGeneral
Operation Modes
Wi-Fi Router
Access Point
Range Extender
Mesh
Cudy Mesh
Mesh Backhaul
Wireless Backhaul
Wired Backhaul
Multi-Band Backhaul
True
WAN Mode
DHCP
Static IP
PPPOE
PPTP
L2TPNetwork
QoS
Per-User Rate Limiting
DHCP
Address Reservation
DHCP Client List
Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
IPTV/VLAN
Bridge
Tag VLAN
VoIP VLAN
IPTV VLAN
TTL Customization
Extend
Spoof
Custom
IGMP
IGMP Proxy
IGMP Snooping
Forwarding
Port Forwarding
Port Triggering
UPnP
DMZ
Firewall
SPI Firewall
DoS Protection
Block PING
Application Layer Gateway
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP PassthroughUtilities
VPN Server
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
VPN Client
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
VPN Performance
OpenVPN Client (UL/DL): 63 / 66 Mbps
OpenVPN Server (UL/DL): 62 / 62 Mbps
WireGuard Client (UL/DL): 173 / 221 Mbps
WireGuard Server (UL/DL): 217 / 168 Mbps
DNS Options
DNS over TLS
Manual DNS
Rebind Protection
Override Clients DNS
DNS over TLS Providers
Cloudflare
Google
Quad9
Custom
Wake on LAN
True
Online Detection
TrueManagement
Parental Controls
Profiles Settings
Offline Time
Online Time
Pause the Internet
Web Filter
All Devices Management
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management
Internet On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management
Domain Filter
IP FilterSystem
LED Control
True
Local Control Method
Config Web Page
App Control
Remote Control Method
Config Page via HTTPS
App Control
TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
Local Update
App (Over the Air)
Online Update
Reliability
Timed Reboot
Backup and Restore
Diagnostic Tools
Diagnosis
Ping
Traceroute
NSLookup
System Log
Languages
English
Bengali
Catalan
Czech
German
Greek
Spanish
French
Hebrew
Croatian
Hungarian
Italian
Japanese
Khmer
Korean
Dutch
Norwegian
Polish
Portuguese
Romanian
Russian
Slovak
Swedish
Thai
Turkish
Ukrainian
Vietnamese
Simplified Chinese
Traditional ChineseDashboard
Panel
Internet Status
Mesh Status
Devices Management
WAN Status
LAN Status
Wi-Fi Status
VPN Status
DHCP Server Status
System Version
Charts
Internet Speed
Wi-Fi Speed
Mesh TopologyItem Dimension (L inchxW inchxH inch)
17 x 13 x 3

Weight
5.00lb

Warranty Information
2 years
