cyberpower systems
CyberPower OL5KRTHD Online Double Conversion UPS 5000VA Rack Tower
(No reviews yet)
Write a Review
- SKU:
- 21369338
- MPN:
- ol5krthd
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/29/2026 11:47:41 PM PST
- Stock Update:
- 03/29/2026 11:47:41 PM PST
Description
This item is brand-new, factory sealed.
CyberPower OL5KRTHD Smart App Online Sinewave UPS System, Double conversion, 5000VA/5000W, 4 Outlets, 2U Rack/Tower , RMCARD205 Pre-Installed- 5000VA/5000W Smart App Online Sinewave Battery Backup Uninterruptible Power Supply (UPS) System - uses sine wave output to support Active PFC and conventional power supplies. SNMP/HTTP remote monitoring available with pre-installed RMCARD205
- 2 NEMA L6-20R and 2 NEMA L6-30R outlets provide critical load protection to safeguard mission-critical servers, applications, and network equipment. INPUT: Hardwire with a NEMA L6-30P power cord option with a 10-foot power cord
- HIGH DENSITY DESIGN: More power in less space. In fact, it can be configured into 2U of rack space or as a tower. BATTERY EQUALIZATION TECHNOLOGY: Maintains the voltages of the batteries at the same level to increase the battery life. FAST CHARGE TECHNOLOGY: Allows the UPS batteries to return to full capacity faster by using a built-in charger inside of the UPS.
- FULL MATRIX LCD CONTROL PANEL: Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.
- 3 YEAR INCLUDING THE BATTERY Connected Equipment and FREE PowerPanel Business Edition Management Software (Download)
- Product Dimensions: 28.3 x 17 x 3.4 inches
- Item Weight: 114.6 pounds
The CyberPower Smart App Online OL5KRTHD high-density design offers more power in less space In fact it can be configured into 2U of rack space or as a tower compared to 3U and 4U for similar competitive UPS models - giving you more room to grow The OL5KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205 For monitoring this UPS offers a new state-of-the-art multi-function color matrix LCD screen that is simple to set up and easy to use The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration The OL5KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1 The energy-saving GreenPower UPS ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation The variable 7-speed fan provides automatic thermal management based on power load to reduce noise The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power Plus it's all backed by a three-year (including batteries) and a $300 000 Connected Equipment
Package Contents:
- Smart App Online OL5KRTHD 5KVA Rack/Tower UPS
- Mounting Hardware

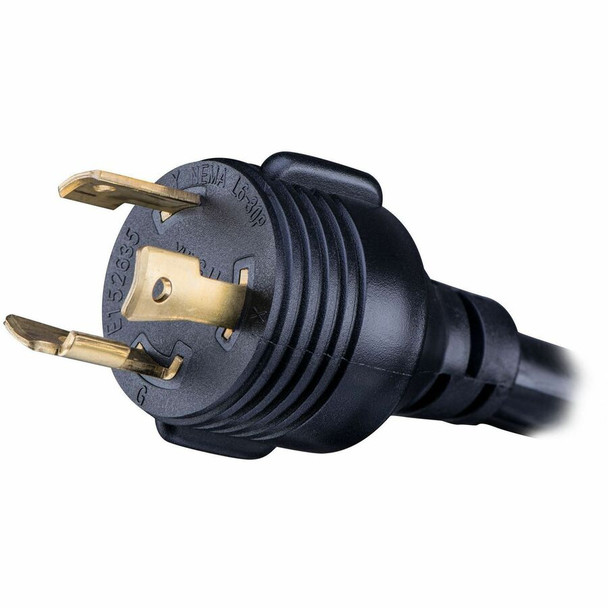

- NEMA L6-30P Power Cord
Features
Package Contents:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- Smart App Online OL5KRTHD 5KVA Rack/Tower UPS
- Mounting Hardware
- NEMA L6-30P Power Cord
Certifications & Standards:
- UL 1778 5th Ed
- CSA C22.2 NO.107.3-05
- FCC Part 15 Class A
Additional Information:
- Energy Saving: Yes - ECO Mode Efficiency >96%
- Management Software: PowerPanel® Business Edition
- Enclosure Construction: Steel
- Dry Contacts: No
- Removable LCD Control Panel Option: No
- Auto Rotatable LCD Control Panel Option: Yes
- Bypass: Internal Bypass (Automatic and Manual)
- ECO Mode Bypass Voltage Range: ±10%, ±15% (Configurable)
- Rated Power Factor: 1
- Input Power Factor: 0.99
- Cold Start: Yes
- Backfeed Protection: Yes
- Battery Equalization Technology: Yes
- Smart Battery Management (SBM) Mode: Yes
- Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load
- Short Circuit Protection: UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
- Input Voltage Range: 120-139VAC for 0-25% Load
- Plug Type: Hardwire with NEMA L6-30P Power Cord Option
- Crest Factor: 3:1
- Operating Relative Humidity: 0% - 90% non condensing
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Overload Protection:
Line Mode:
- 105~125% Load for 1 min
- 126~150% Load for 10 sec
Battery Mode:
- 105~130% Load for 10 sec
- 131~150% Load for 2 sec
Environmentally Friendly:
Yes
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Load Capacity (Watt) | 5000 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Power Factor | 0.99 |
| Input Voltage Range |
|
| Input Voltage |
|
| Output Voltage |
|
| Load Capacity (VA) | 5000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 92.40 lb |
| Product Color | Black |
| Height | 3.4" |
| Color Family | Black |
| Width | 17" |
| Rack Height | 2U |
| Depth | 28.3" |
| Warranty | |
| Directly Connected Equipment Guarantee | $300000 Lifetime |
| Additional Warranty Information | Backed by a three-year warranty (including batteries) |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <ul> <li>LED Indicators: Power On (White)</li> </ul> <p><b>Multi-Function Color TFT-LCD Readout that Supports:</b></p> <ul> <li>15 x Types of UPS status</li> <li>7 x Types of Controls</li> <li>20 x Types of Set Up</li> <li>12 x Event Logs</li> <li>11 x Types of About</li> <li>4 x Types of Diagnostics</li> </ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Number of Batteries | 12 |
| Battery Capacity | 5700 mAh |
| DC System Voltage | 12 V DC |
| Replaceable Battery | No |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 7.90 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower Smart App Online OL5KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL5KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205. For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration. The OL5KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise. The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee. More from the Manufacturer |
| Product Condition | New |
| Product Type | Double Conversion Online UPS |
| Product Name | OL5KRTHD Smart App Online UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL5KRTHD |
| Product Model | OL5KRTHD |
| Product Series | Smart App Online UPS |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Energy Saving | ECO Mode Efficiency >96% |
| Overload Protection | Yes |
| Plug/Connector Type | Hardwired |
| Cord Length | 10 ft |
| Circuit Breaker Current Rating | 50 A |
| Efficiency | 96% |
| EMI/RFI Noise Filter | Yes |
| Protection Type |
|
| Transfer Time | 0 ns |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm |
|
| Interfaces/Ports | |
| USB | No |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 308.02 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 50000 ft |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower OL5KRTHD Online Double Conversion UPS 5000VA Rack Tower
$5,291.95
