cyberpower systems
CyberPower PDU31116 Single Phase 100 - 120 VAC 15A Monitored PDU PDU31116
(No reviews yet)
Write a Review
- SKU:
- 20789928
- MPN:
- pdu31116
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/03/2026 04:47:54 PM PST
- Stock Update:
- 04/03/2026 04:47:54 PM PST
Description
This item is brand-new, factory sealed.
CyberPower PDU31116 Monitored PDU, 100-120V, 15A (Derated to 12A), 20 Outlets, 0U Rackmount- 100-120V/15A (derated to 12A) Switched Power Distributution Unit (PDU) delivers power to data centers, network closets, and corporate servers
- 20 NEMA 5-15R MONITORED OUTLETS: Deliver reliable AC power to connected devices; INPUT: NEMA 5-15P straight input plug with 10 foot power cord; FREQUENCY: 50Hz/60Hz
- DIGITAL DISPLAY: Displays immediate, detailed information on PDU conditions, including: amperage, voltage, KW, IP Address, etc.; SWITCH-FREE DESIGN: Safeguards against accidental power shutdown
- REMOTE AND LOCAL MONITORING: User can track PDU vitals both offsite and onsite; Provides control to turn on/off individual outlets or circuits; AUTOMATIC EVENT NOTIFICATIONS: Provides immediate updates about power events via email, SMS, or SNMP traps
- 0U RACKMOUNT: With durable metal housing; UPGRADEABLE FIRMWARE: allows users to download firmware updates to programs that run the PDU; 3-YEAR LIMITED WARRANTY
- Package Dimensions: 62 x 7.5 x 4.5 inches
- Item Weight: 13.67 pounds

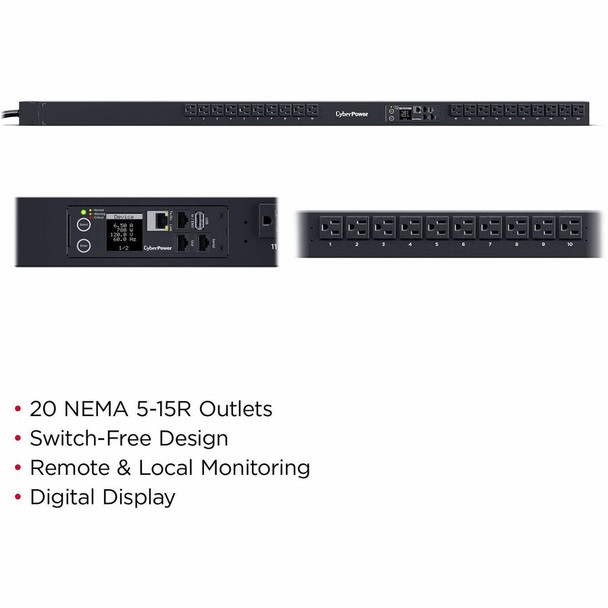

The CyberPower PDU31116, a 20-outlet, 0U rackmount monitored power distribution unit (PDU), provides 120V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. The PDU31116 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Features
UL Listed:
Yes
Physical Dimensions - (WxHxD) (cm) : 4.83 x 5.59 x 134.87 (cm) Physical Dimensions - (WxHxD) (in) : 1.9 x 2.2 x 53.1 (in) Physical Dimensions - (WxHxD) (mm) : 48 x 56 x 1349 (mm) Weight (kg) : 3.18 Weight (lb) : 7.0 Shipping Dimensions - (WxHxD) (cm) : 11.43 x 18.03 x 157.99 (cm) Shipping - Dimensions (WxHxD, in) : 4.5 x 7.1 x 62.2 (in) Shipping - Dimensions (WxHxD, mm) : 114.3 x 180.34 x 1579.88 (mm) Shipping - Weight (kg) : 3.58 Shipping - Weight (lb) : 7.9 Cord Length : 10 ft (3.0 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-15P Maximum Input Current : 15A (Derated to 12A) Phase : Single Phase Plug Style : Straight Meter Readout : Kilowatts Nominal Output Voltage : 100 - 120 VAC Outlet Banks : 1 Outlets - Front : 20 Outlets - Rear : 0 Outlets - Total : 20 Outlet Type COMPUTED : 20 - NEMA 5-15R Overload Protection : None USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Load SNMP / HTTP Remote Monitoring : TCP/IP, UDP, DHCP, SNMP, HTTP Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Vertical Rackmount Operating Elevation : 0 - 11482 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49212 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL 62368-1 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
Yes
Certifications & Standards:
UL 62368-1
Additional Information:
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 7.01 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type |
|
| Height | 2.2" |
| Color Family | Black |
| Mounting Orientation | Vertical |
| Width | 1.9" |
| Rack Height | 0U |
| Depth | 53.1" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU31116, a 20-outlet, 0U rackmount monitored power distribution unit (PDU), provides 120V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. The PDU31116 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. |
| Product Condition | New |
| Product Type | PDU |
| Product Name | PDU31116 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU31116 |
| Product Model | PDU31116 |
| Product Series | Monitored PDU |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 20 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Monitored |
| Locking Receptacles | Cord Retention Tray |
| Features | LED Status Indicator |
| Management | |
| Management | <ul><li> SNMP</li><li> TCP/IP</li><li> UDP </li><li> DHCP</li><li> HTTP</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 95% |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 0% |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower PDU31116 Single Phase 100 - 120 VAC 15A Monitored PDU PDU31116
$514.44
