CyberPower PDU41101 100 - 120 VAC 20A Switched PDU (PDU41101)
(No reviews yet)
Write a Review
- SKU:
- 18060355
- MPN:
- pdu41101
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/10/2026 03:44:14 AM PST
- Stock Update:
- 04/10/2026 03:44:14 AM PST
Description
This item is brand-new, factory sealed.

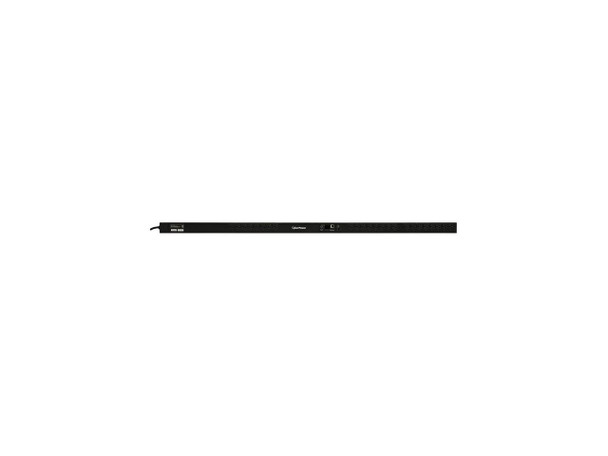

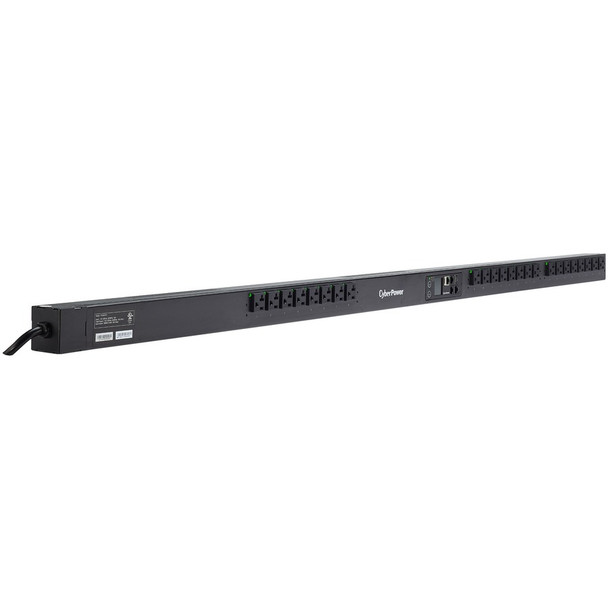

The CyberPower PDU41101 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 120V 20A output. This PDU distributes power to 24 NEMA 5-20R receptacles from a single NEMA (L)5-20P plug with unfiltered electrical pass-through.
- Delivers AC power to servers, equipment, and connected devices
- Switch-free design safeguards against accidental power shutdown
- Provides local and remote control for individual and multiple outlets
- Enables offsite and onsite tracking of PDU vitals
- Provides immediate updates about power events via email, SMS text, or SNMP traps
- Includes 3-year limited warranty
Package Contents:
- PDU41101 Switched PDU Series
- 2 x xMounting Brackets
- 6 x M4x5 Screws
- 6 x M5x12 screws/washers
- 6 x M3x6 Screws
- NEMA L5-20R to 5-20P Adapter
- Cord Retention Tray
- Cable Ties
- RJ45/DB9 Serial Cable
- User's Manual
- Registration and Download Cards
Features
UL Listed:
Yes
Physical Dimensions - (WxHxD) (cm) : 4.78 x 166.62 x 4.78 (cm) Physical Dimensions - (WxHxD) (in) : 1.88 x 65.6 x 1.88 (in) Physical Dimensions - (WxHxD) (mm) : 48 x 1666 x 48 (mm) Weight (kg) : 7.0 Weight (lb) : 15.43 Shipping Dimensions - (WxHxD) (cm) : 189.23 x 11.43 x 17.78 (cm) Shipping - Dimensions (WxHxD, in) : 74.5 x 4.5 x 7 (in) Shipping - Dimensions (WxHxD, mm) : 1892.3 x 114.3 x 177.8 (mm) Shipping - Weight (kg) : 8.89 Shipping - Weight (lb) : 19.6 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Maximum Input Current : 20A Nominal Input Voltage : 100 - 120 VAC Power Cord Length : 10 ft (3 m) Circuit Quantity : 1 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 24 Outlets - Total : 24 Outlet Type COMPUTED : 24 - NEMA 5-20R Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Yes
No
Restriction of Hazardous Substances (RoHS)
China
Yes
Certifications & Standards:
- UL62368
- FCC Class A
- ICES-003: Issue 7
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
No
Application/Usage:
Data Center
Network Device
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 15.43 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type |
|
| Height | 65.6" |
| Color Family | Black |
| Mounting Orientation | Horizontal/Vertical |
| Width | 1.9" |
| Rack Height | 0U |
| Depth | 1.9" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU41101 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 120V 20A output. This PDU distributes power to 24 NEMA 5-20R receptacles from a single NEMA (L)5-20P plug with unfiltered electrical pass-through. Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. |
| Product Type | PDU |
| Product Name | PDU41101 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU41101 |
| Product Model | PDU41101 |
| Product Series | Switched PDU |
| Technical Information | |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 24 x NEMA 5-20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P |
| PDU Type | Switched |
| Features | LCD Display |
| Management | |
| Remote Outlet Switching | Yes |
| Management | <b>Protocols:</b><br /> <ul> <li>IPv4</li> <li>TCP/IP</li> <li>UDP</li> <li>SNMPv1</li> <li>HTTP</li> <li>NTP</li> <li>DNS</li> <li>Telnet</li> <li>DHCP</li> <li>SMTP</li> <li>FTP</li> <li>IPv6</li> <li>SNMPv3</li> <li>HTTPs</li> <li>SSH</li> <li>SSL</li> <li>TLS</li> <li>LDAP(S)</li> <li>RADIUS</li> <li>Syslog</li> <li>Windows AD</li> </ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 149°F (65°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower PDU41101 100 - 120 VAC 20A Switched PDU (PDU41101)
$935.95
