cyberpower systems

CyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS 2200VA Rack Tower

(No reviews yet) Write a Review
SKU:
18190676
MPN:
pr2200rtxl2uhvan
Availability:
Usually ships the same or next business day. In stock at our IL, NJ warehouses.
Shipping:
Calculated at Checkout
Stock Update:
02/19/2026 04:45:19 PM PST
  • Main

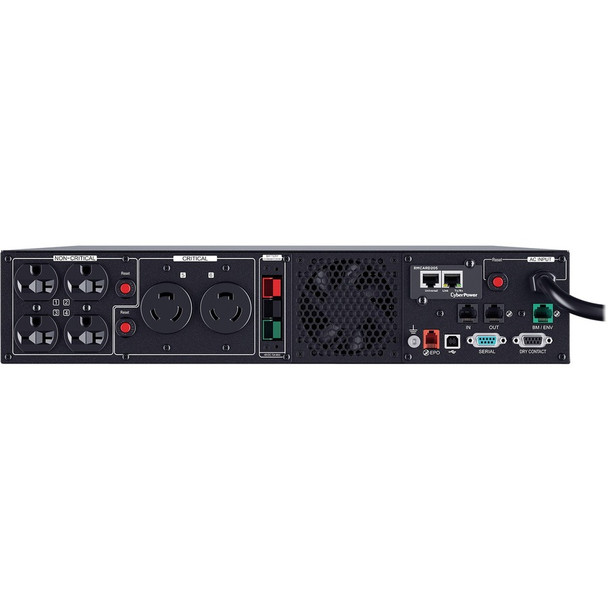

  • Rear
  • Left
  • Front
  • Alternate-Image2
  • Alternate-Image1
$1,705.95
Stock Update:
02/19/2026 04:45:19 PM PST

Description



This item is brand-new, factory sealed.

CyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS System, 2200VA/2200W, 6 Outlets, 2U Rack/Tower, RMCARD205 Pre-Installed; EBM Option
  • 2200VA/2200W Smart App Sinewave Battery Backup Uninterruptible Power Supply (UPS) System uses sine wave output to support Active PFC & conventional power supplies; SNMP/HTTP remote monitoring with pre-installed RMCARD205
  • 4 NEMA 6-20R & 2 NEMA L6-20R BATTERY BACKUP AND SURGE PROTECTED OUTLETS; INPUT: Plug Type NEMA L6-20P with 10 FT power cord
  • TILTABLE, ROTATABLE MULTIFUNCTION LCD PANEL: Provides immediate status and control; EBM OPTION: Extended Battery Module BP48VP2U03 can be added for expanded runtimes
  • AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
  • 3 YEAR WARRANTY INCLUDING THE BATTERIES; $400,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition Management Software (Download)
  • Product Dimensions: 24.8 x 17.1 x 3.4 inches
  • Item Weight: 112 pounds
Size:2200VA HV NET

The PR2200RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology surge protection and battery backup CyberPowers Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment The Smart App Sinewave PR2200RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR) which corrects minor power fluctuations without switching to battery power The enhanced chassis design with an easy-to-access toolless front panel captive screws for battery panel access and color-coded rear panel make battery changes and installations simple and fast The PR2200RTXL2UHVAN also has an innovative LCD panel that rotates 90 tilts for a better viewing angle and provides information on 47 different settings including UPS stats UPS setup and control management and testing options This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system With a 400 000 connected equipment and a three-year you can trust CyberPowers commitment to the quality of the PR2200RTXL2UHVAN

Features

Certifications & Standards:
  • CE
  • UL1778
  • FCC Class A
  • VCCI



Additional Information:
  • Active PFC Compatible : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Energy Star Certified : Yes
  • UPS Topology : Line Interactive
  • Battery Quantity : 8
  • Battery Size : 12 V / 6 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Extended Battery Module : BP48VP2U03
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB1260X8
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 5.3 min
  • Runtime at Half Load : 15.2 min
  • Typical Recharge Time : 3 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 62.99 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 24.8 (in)
  • Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 630 (mm)
  • Weight (kg) : 42.0
  • Weight (lb) : 92.6
  • Shipping Dimensions - (WxHxD) (cm) : 57.15 x 26.67 x 75.57 (cm)
  • Shipping - Dimensions (WxHxD, in) : 22.5 x 10.5 x 29.75 (in)
  • Shipping - Dimensions (WxHxD, mm) : 571.5 x 266.7 x 755.65 (mm)
  • Shipping - Weight (kg) : 13.49
  • Shipping - Weight (lb) : 29.75
  • Adjustable Voltage Range : 148 - 288 VAC
  • Circuit Breaker : 20 A
  • Cord Length : 10 ft (3.0 m)
  • Input Frequency Range : 47 Hz - 63 Hz
  • Input Plug Type : NEMA L6-20P
  • Input Voltage : 200 - 240 VAC
  • Input Voltage Range : 131 VAC - 302 VAC
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Straight (Twist Lock)
  • Automatic Voltage Regulation : Double Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 50/60 Hz ± 1%
  • On Battery Voltage : 200/208/220/230/240 VAC ± 5%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 6
  • Outlets - Critical Load : 2
  • Outlets - Total : 6
  • Outlet Type COMPUTED : 4 - NEMA 6-20R
  • Output Power Factor : 1
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 4 ms
  • USB Charge Port : No
  • VA : 2200 VA
  • Watts : 2200 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1 in / 1 out
  • Surge Suppression (Joules) : 2430 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1 in / 1 out
  • Surge Suppression (Joules) : 2430 J
  • Audible Alarms : Battery Mode
  • Emergency Power Off (EPO) Port : Yes
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable
  • Serial Port : 1 Serial
  • SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Rack / Tower
  • Material of Construction : Metal
  • Rack Height : 2U
  • Audible noise at 1m from surface of unit : 57.5 dBA
  • Online Thermal Dissipation : 83.1 BTU/hr
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  • Storage Relative Humidity : 0 - 95% (non-condensing)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL1778
  • CEG Amount : $400000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U4B
  • Product Warranty : 3 Year Limited Warranty

    •

    Environmentally Friendly:
    Yes



    Software Included:
    PowerPanel® Business Edition



    Energy Star:
    Yes



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    Philippines



    Specs

    Power Description
    Load Capacity (Watt)2200 W
    Input Frequency
    • 47 Hz
    • 63 Hz
    Output Power Factor1
    Surge Energy Rating2430 J
    Input Voltage Range
    • 200 V AC - 240 V AC
    • 131 V AC - 302 V AC
    Input Voltage
    • 120 V AC
    • 230 V AC
    Output Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    Load Capacity (VA)2200 VA
    Waveform TypeSine Wave
    Output Frequency
    • 50 Hz
    • 60 Hz
    Physical Characteristics
    Form FactorRack/Tower
    Weight (Approximate)92.59 lb
    Product ColorBlack
    Height3.4"
    Color FamilyBlack
    Width17.1"
    Rack Height2U
    Depth24.8"
    Warranty
    Directly Connected Equipment Guarantee$400000 Lifetime
    Limited Warranty3 Year
    Controls/Indicators
    Status Indicators<b>Multifunction LCD Panel:</b><br /> <ul> <li>47 Settings (27 setup and control items + 20 status updates and log menus)</li> </ul> <b>LED Indicators:</b><br /> <ul> <li>Power on</li> <li>Line mode</li> <li>Battery mode</li> <li>Fault</li> <li>Night mode</li> </ul>
    Battery Information
    Backup/Run Time (Full Load)5.30 Minute
    Number of Batteries8
    Battery Capacity6000 mAh
    Replaceable BatteryYes
    Battery ChemistryLead Acid
    Battery Size12V
    Backup/Run Time (Half Load)15.20 Minute
    Typical Battery Recharge Time3 Hour
    Battery CharacteristicsSealed
    Display & Graphics
    DisplayLCD
    General Information
    Brand NameCyberPower
    Manufacturer Website Addresshttps://www.cyberpowersystems.com/
    Marketing InformationThe PR2200RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
    The Smart App Sinewave PR2200RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
    This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
    With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UHVAN.
    More from the Manufacturer
    Product ConditionNew
    Product TypeLine-interactive UPS
    Product NamePR2200RTXL2UHVAN Smart App Sinewave UPS Systems
    ManufacturerCyberPower Systems, Inc
    Manufacturer Part NumberPR2200RTXL2UHVAN
    Product ModelPR2200RTXL2UHVAN
    Product SeriesNew Smart App Sinewave UPS
    Technical Information
    Receptacle Type
    • NEMA 6-20R
    • NEMA L6-20R
    Receptacle Detail
    • 4 x NEMA 6-20R
    • 2 x NEMA L6-20R
    Number of Critical Load Outlets2
    EMI/RFI Noise FilterYes
    Number of Battery & Surge Outlets6
    Transfer Time4 ms
    Energy SavingGreenPower UPS&trade; Bypass Technology
    Overload ProtectionYes
    Plug/Connector TypeNEMA L6-20P
    Cord Length10 ft
    Circuit Breaker Current Rating20 A
    Dataline ProtectionRJ-45
    AVRYes
    Management
    Network ManagementSNMP/HTTP Remote Monitoring
    Alarm
    • Over Charge
    • Overheat
    • Low Battery
    • Overload
    • Battery Mode
    Interfaces/Ports
    Network (RJ-45)Yes
    USBYes
    EPO PortYes
    Serial PortYes
    USB (HID Compliant) PortYes
    Environmental Conditions
    Thermal Dissipation24.35 W
    Storage Relative Humidity0% - 95%
    Maximum Storage Elevation50000 ft
    Sound Emission (A-Weighted)57.5 dB(A)
    Maximum Operating Temperature104&deg;F (40&deg;C)
    Storage Temperature5&deg;F (-15&deg;C) - 113&deg;F (45&deg;C)
    Maximum Operating Elevation10000 ft
