Description

This item is brand-new, factory sealed.

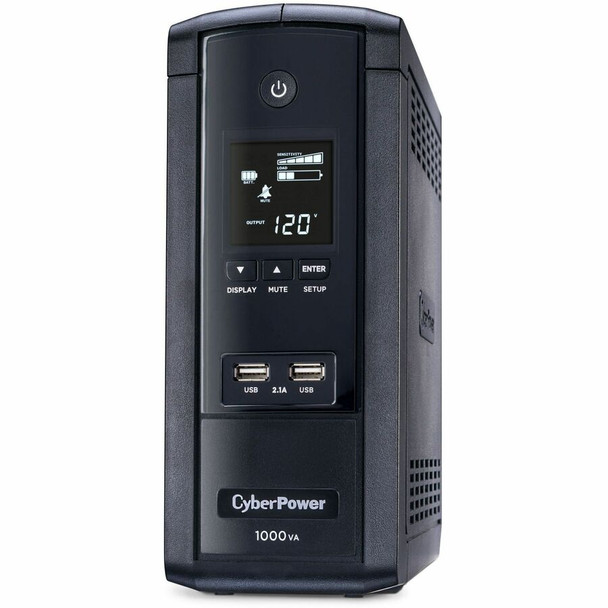

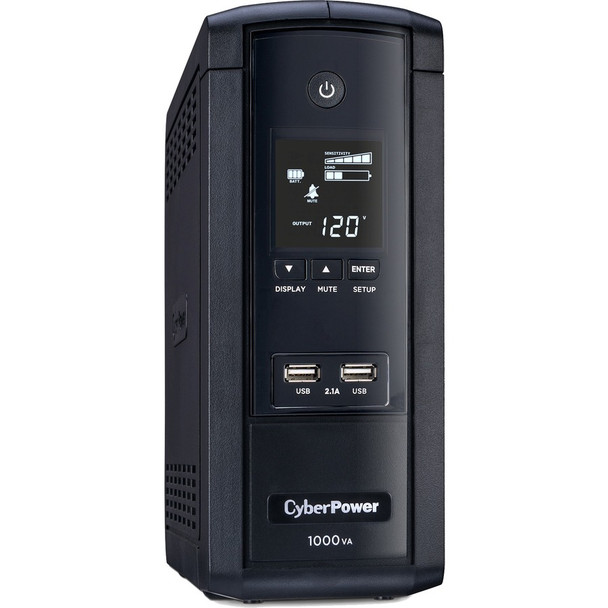

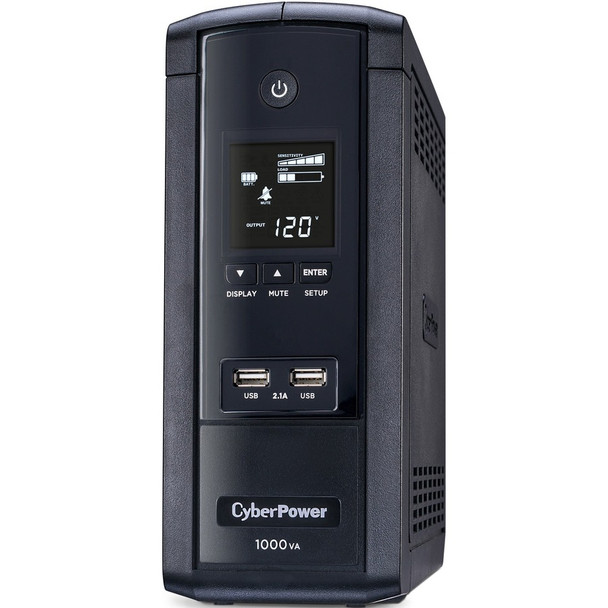

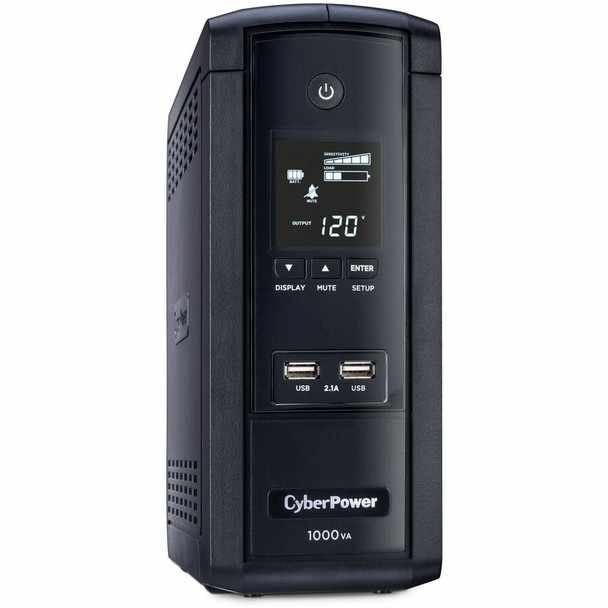

The CyberPower Intelligent LCD Series BRG1000AVRLCD UPS safeguards PCs and other electronics (monitors, cable DSL/ modems, VoIP routers, and home theater devices) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power. Its composite integrated circuitry offers advanced protection. This UPS is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

The BRG1000AVRLCD has a capacity of 1000VA/600Watts, 10 outlets (5 battery & surge protected) NEMA 5-15R receptacles, multifunction LCD, and 2-2.1A USB Charging Ports. Protection for network (RJ45) is also included. EMI/RFI filters increase the immunity of the load to disturbances and surges.

PowerPanel® Personal Edition UPS Management software, Three-Year Warranty, and $250,000 Connected Equipment Guarantee are included.

Package Contents:

1000VA BRG1000AVRLCD UPS with 600W, AVR, LCD, and 2.1 USB Charging
User Manual
USB Cable
PowerPanel Personal Edition Software Download Card

Features

Package Contents:

1000VA BRG1000AVRLCD UPS with 600W, AVR, LCD, and 2.1 USB Charging
User's Manual
USB A+B Cable
Software Download Card

Certifications & Standards:

UL1778
cUL No 107
FCC DOC Class B

Additional Information:

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 1

Battery Size : 12 V / 9 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : No

Replacement Battery Cartridge : RB1290

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 1 min

Runtime at Half Load : 9 min

Typical Recharge Time : 8 Hours

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 9.91 x 24.64 x 25.91 (cm)

Physical Dimensions - (WxHxD) (in) : 3.9 x 9.7 x 10.2 (in)

Physical Dimensions - (WxHxD) (mm) : 99 x 246 x 259 (mm)

Weight (kg) : 6.8

Weight (lb) : 15

Shipping Dimensions - (WxHxD) (cm) : 17.15 x 32.39 x 35.56 (cm)

Shipping - Dimensions (WxHxD, in) : 6.75 x 12.75 x 14.0 (in)

Shipping - Dimensions (WxHxD, mm) : 171.45 x 323.85 x 355.6 (mm)

Shipping - Weight (kg) : 6.35

Shipping - Weight (lb) : 14.0

Circuit Breaker : 15 A

Cord Length : 6 ft (1.8 m)

Input Frequency Range : 57 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Input Voltage Range : 90 VAC - 148 VAC

Nominal Input Voltage : 120 VAC

Plug Style : Right Angle - 45° Offset

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Simulated Sine Wave

Outlets - Battery & Surge Protected : 5

Outlets - Surge-Only Protected : 5

Outlets - Total : 10

Outlet Type COMPUTED : 10 - NEMA 5-15R

Output Power Factor : 0.6

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 4 ms

USB Charge Port : Yes

USB Charge Port Amperage : 2.1 Amps (Shared)

USB Charge Port Quantity : 2

USB Charge Port Standard : Type A

USB Charge Port Type COMPUTED : 2 Type A

USB Charge Port Voltage COMPUTED : 5 VDC

VA : 1000 VA

Watts : 600 W

Coax Protection RG6 COMPUTED : 1 in

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000)

Surge Suppression (Joules) : 1080 J

Coax Protection RG6 COMPUTED : 1 in

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000)

Surge Suppression (Joules) : 1080 J

Audible Alarms : Battery Mode

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Serial

Software (Free Download) : PowerPanel® Personal

Color : Black

Form Factor : Mini-Tower

Material of Construction : Plastic

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 90 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Elevation : 0 - 50000 ft (0 - 15239 m)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $350000

Connected Equipment Guarantee : Lifetime

Product Warranty : 5 Year Limited Warranty

Environmentally Friendly:
Yes

Software Included:
PowerPanel Personal Edition Software

Energy Star:
Yes

Environmental Compliance:
Restriction of Hazardous Substances (RoHS)

Country of Origin:
China

Specs

Power Description
Load Capacity (Watt)	600 W
Input Frequency	63 Hz
Surge Energy Rating	1080 J
Input Voltage Range	90 V AC - 148 V AC
Input Voltage	120 V AC
Circuit Breaker	Yes
Output Voltage	120 V AC
Load Capacity (VA)	1000 VA
Waveform Type	Simulated Sine Wave
Physical Characteristics
Form Factor	Mini-tower
Weight (Approximate)	15 lb
Product Color	Black
Height	9.7"
Color Family	Black
Width	3.9"
Depth	10.2"
Warranty
Directly Connected Equipment Guarantee	$350000 Lifetime
Limited Warranty	5 Year
Controls/Indicators
Status Indicators	<ul> <li>LCD : Multifunction LCD</li> <li>LED Indicators : Power On</li> </ul>
Interfaces/Ports
Serial Port	Yes
USB (HID Compliant) Port	Yes
Battery Information
Backup/Run Time (Full Load)	1 Minute
Number of Batteries	1
Battery Capacity	9000 mAh
Replaceable Battery	Yes
Battery Chemistry	Lead Acid
Hot Swappable	No
Battery Size	12V
Backup/Run Time (Half Load)	9 Minute
Typical Battery Recharge Time	8 Hour
Battery Characteristics	Maintenance-free
General Information
Brand Name	CyberPower
Manufacturer Website Address	https://www.cyberpowersystems.com/
Marketing Information	A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD Series BRG1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Two USB charge ports power portable devices such as mobile phones and tablets, even during a utility power failure. The BRG1000AVRLCD comes with a five-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee. More from the Manufacturer
Product Type	Line-interactive UPS
Product Name	BRG1000AVRLCD Intelligent LCD UPS Systems
Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BRG1000AVRLCD
Product Model	BRG1000AVRLCD
Product Series	Intelligent LCD UPS
Technical Information
Receptacle Type	NEMA 5-15R USB
Receptacle Detail	10 x NEMA 5-15R 2 x USB
Energy Saving	GreenPower UPS™ Bypass Technology
Overload Protection	Yes
Plug/Connector Type	NEMA 5-15P
Cord Length	6 ft
Dataline Protection	RJ-45 RG-6
EMI/RFI Noise Filter	Yes
Number of Surge-only Outlets	5
Number of Battery & Surge Outlets	5
Transfer Time	4 ms
Management
Alarm	Battery Mode
Environmental Conditions
Maximum Storage Elevation	50000 ft
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
