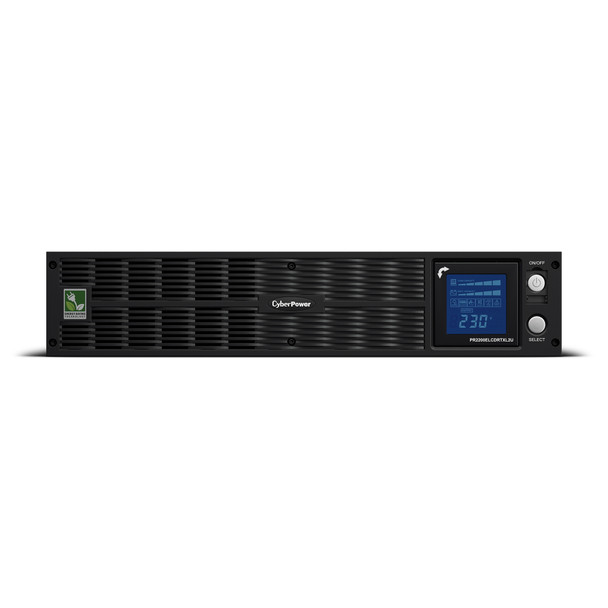

Cyberpower 2200 Va Line Interactive Ups - 2200 Va/1650 W - 220 V Ac, 230 V Ac, 240 V Ac - 5 Minute - 2u Tower/rack Mountable - 5 Minute - 1 X Iec 60320 C19, 9 X Iec 60320 C13 (pr2200elcdrtxl2u)

(No reviews yet) Write a Review
SKU:
18160885
MPN:
pr2200elcdrtxl2u
Availability:
Usually ships the same or next business day. In stock at our GA warehouse.
Shipping:
Calculated at Checkout
Stock Update:
12/26/2025 07:09:00 PM PST
  • Main
  • Rear
  • Left
  • Front
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$1,307.32
Buy more, get it as low as $
Stock Update:
12/26/2025 07:09:00 PM PST

Description



This item is brand-new, factory sealed.

  • 2200VA/1650W Smart App Sinewave Battery Backup Uninterruptible Power Supply (UPS) System - designed to support Active PFC and conventional power supplies
  • IEC320 C20 INPUT PLUG & 10 BATTERY BACKUP AND SURGE PROTECTED OUTLETS: (1) IEC320 C19 and (9) IEC320 C13 outlets safeguard corporate servers, department servers, storage appliances, network devices and telecom installations
  • ROTATABLE MULTIFUNCTION LCD PANEL: Displays immediate, detailed information on battery and power conditions, including: estimated runtime, battery capacity, load capacity, etc. whether rack mounted or standing as a tower
  • AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
  • 3-YEAR WARRANTY INCLUDING THE BATTERY, $400,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition Management Software (Download)

    Features

    Package Contents:
    • 2200 VA Line Interactive UPS
    • 4x IEC C13-C14 Power Cords
    • 1x C19-Schuko Power Cord
    • 1x C16-UK Power Cord
    • Manual
    • USB Cable



    Certifications & Standards:
    CE



    Additional Information:
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • UPS Topology : Line Interactive
  • Battery Size : 12 V / 9 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Extended Battery Module : BP48VP2U02
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB1290X4D
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 5 min
  • Runtime at Half Load : 14 min
  • Typical Recharge Time : 6 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.79 x 48.01 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17.05 x 3.46 x 18.9 (in)
  • Physical Dimensions - (WxHxD) (mm) : 433 x 88 x 480 (mm)
  • Weight (kg) : 34.93
  • Weight (lb) : 77
  • Shipping Dimensions - (WxHxD) (cm) : 56.52 x 27.31 x 60.96 (cm)
  • Shipping - Dimensions (WxHxD, in) : 22.25 x 10.75 x 24.0 (in)
  • Shipping - Dimensions (WxHxD, mm) : 565.15 x 273.05 x 609.6 (mm)
  • Shipping - Weight (kg) : 44.0
  • Shipping - Weight (lb) : 97
  • Adjustable Voltage Range : 150 - 300 VAC
  • Circuit Breaker : 20 A
  • Cord Length : 10 ft (3.0 m)
  • Input Frequency Range : 47 Hz - 63 Hz
  • Input Plug Type : IEC-320 C20
  • Input Voltage Range : 160 VAC - 288 VAC
  • Nominal Input Voltage : 230 VAC
  • Automatic Voltage Regulation : Double Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 50/60 Hz ± 0.1Hz
  • On Battery Voltage : 220/230/240 VAC ± 5%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 10
  • Outlets - Critical Load : 4
  • Outlets - Total : 10
  • Outlet Type COMPUTED : 1 - IEC-320 C19
  • Output Power Factor : 0.8
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 4 ms
  • USB Charge Port : No
  • VA : 2200 VA
  • Watts : 1650 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)
  • Surge Suppression (Joules) : 810 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)
  • Surge Suppression (Joules) : 810 J
  • Audible Alarms : Battery Mode
  • Emergency Power Off (EPO) Port : Yes
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable
  • Serial Port : 1 Serial
  • SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD202, RMCARD203, or RMCARD205
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Rack / Tower
  • Material of Construction : Metal
  • Rack Height : 2U
  • Audible noise at 1.5M from surface of unit : 34.5 dBA
  • Online Thermal Dissipation : 228 BTU/hr
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : CE
  • CEG Amount : $400000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U4B
  • Product Warranty : 3 Year Limited Warranty

    •

    Environmentally Friendly:
    Yes



    Energy Star:
    No



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    China



    Specs

    Power Description
    Load Capacity (Watt)1650 W
    Input Frequency
    • 50 Hz
    • 60 Hz
    Output Power Factor0.8
    Surge Energy Rating810 J
    Input Voltage230 V AC
    Output Voltage
    • 220 V AC
    • 230 V AC
    • 240 V AC
    Load Capacity (VA)2200 VA
    Waveform TypeSine Wave
    Output Frequency
    • 50 Hz
    • 60 Hz
    Physical Characteristics
    Form FactorRack/Tower
    Weight (Approximate)77 lb
    Product ColorBlack
    Height3.5"
    Color FamilyBlack
    Width17.1"
    Rack Height2U
    Depth18.9"
    Warranty
    Directly Connected Equipment Guarantee$400000 Lifetime
    Limited Warranty3 Year
    Controls/Indicators
    Status IndicatorsLED Indicators: Power On
    Battery Information
    Backup/Run Time (Full Load)5 Minute
    Battery Capacity9000 mAh
    Replaceable BatteryYes
    Battery ChemistryLead Acid
    Battery Size12V
    Backup/Run Time (Half Load)14 Minute
    Typical Battery Recharge Time6 Hour
    Battery CharacteristicsSealed
    Display & Graphics
    DisplayLCD
    General Information
    Brand NameCyberPower
    Manufacturer Website Addresshttps://www.cyberpowersystems.com/
    Product TypeLine-interactive UPS
    Product NamePR2200ELCDRTXL2U Smart App Sinewave UPS Systems
    ManufacturerCyberPower Systems, Inc
    Manufacturer Part NumberPR2200ELCDRTXL2U
    Product ModelPR2200ELCDRTXL2U
    Product SeriesSmart App Sinewave UPS
    Technical Information
    Receptacle Type
    • IEC 60320 C19
    • IEC 60320 C13
    Receptacle Detail1 x IEC 60320 C19
    Number of Critical Load Outlets4
    EMI/RFI Noise FilterYes
    Number of Battery & Surge Outlets10
    Transfer Time4 ms
    Energy SavingGreenPower UPS™ Bypass Technology
    Overload ProtectionYes
    Plug/Connector TypeIEC 60320 C20
    Cord Length10 ft
    Circuit Breaker Current Rating20 A
    Dataline Protection
    • RJ-11
    • RJ-45
    AVRYes
    Management
    Network ManagementSNMP/HTTP Remote Monitoring
    AlarmBattery Mode
    Interfaces/Ports
    EPO PortYes
    Serial PortYes
    USB (HID Compliant) PortYes
    Environmental Conditions
    Thermal Dissipation84.40 W
    Maximum Storage Elevation50000 ft
    Sound Emission (A-Weighted)34.5 dB(A)
    Maximum Operating Temperature104°F (40°C)
    Storage Temperature5°F (-15°C) - 113°F (45°C)
    Maximum Operating Elevation10000 ft
