CyberPower OR2200PFCRT2U PFC Sinewave UPS Systems
(No reviews yet)
Write a Review
- SKU:
- 18055512
- MPN:
- or2200pfcrt2u
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/31/2026 03:10:52 PM PST
- Stock Update:
- 03/31/2026 03:10:52 PM PST
Description
This item is brand-new, factory sealed.
The CyberPower OR2200PFCRT2U PFC Sinewave UPS System with pure sine wave output and multifunction LCD safeguards networking hardware, networked-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) topology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. CyberPower's OR2200PFCRT2U, with pure sine wave, solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies - your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power. The OR2200PFCRT2U unit has a capacity of 2000VA/1320 Watts, eight (8) NEMA 5-20R receptacles and four (4) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and one (1) DB9 serial port. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. This UPS incorporates microprocessor-based digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients.Features
Package Contents:

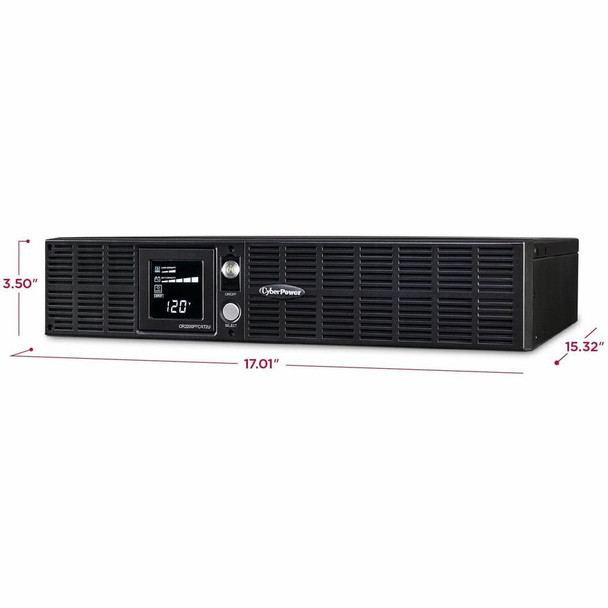

Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Battery Voltage : 24 VDC Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4H (With serial numbers beginning with 'GX9') Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 4.5 min Runtime at Half Load : 15.5 min Typical Recharge Time : 10 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.21 x 8.89 x 38.91 (cm) Physical Dimensions - (WxHxD) (in) : 17.01 x 3.5 x 15.32 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 389 (mm) Weight (kg) : 25.95 Weight (lb) : 57.2 Shipping Dimensions - (WxHxD) (cm) : 52.07 x 30.48 x 53.98 (cm) Shipping - Dimensions (WxHxD, in) : 20.5 x 12.0 x 21.25 (in) Shipping - Dimensions (WxHxD, mm) : 520.7 x 304.8 x 539.75 (mm) Shipping - Weight (kg) : 9.64 Shipping - Weight (lb) : 21.25 Adjustable Voltage Range : 86 - 142 VAC Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-20P Input Voltage Range : 88 VAC - 139 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 2 - NEMA 5-20R Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +14% USB Charge Port : No VA : 2000 VA Watts : 1540 W EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1470 J EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1470 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Remote Management Card : None Serial Port : 1 Serial Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1.5M from surface of unit : 48.5 dBA On Battery Thermal Dissipation : 1278 BTU/hr Online Thermal Dissipation : 177.5 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 5th Ed. CEG Amount : $300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Yes
PowerPanel Business Edition Software
No
Restriction of Hazardous Substances (RoHS)
China
- Intelligent LCD PFC Sinewave OR2200PFCRT2U Line-interactive UPS
- USB A-B Cable
- User's Manual
- Software Download Card
- Registration Info Card
Certifications & Standards:
- UL 1778 5th Ed
- cUL
- FCC Class A
Additional Information:
Environmentally Friendly:
Yes
Software Included:
PowerPanel Business Edition Software
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Load Capacity (Watt) | 1540 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 2000 VA |
| Waveform Type | Sine Wave |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 57.20 lb |
| Height | 3.5" |
| Width | 17" |
| Depth | 15.3" |
| Rack Height | 2U |
| Warranty | |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <ul> <li>Power On</li> <li>Wiring Fault</li> </ul> |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Number of Batteries | 4 |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 19.80 Minute |
| Typical Battery Recharge Time | 10 Hour |
| Battery Characteristics | Maintenance-free |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | OR2200PFCRT2U PFC Sinewave UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR2200PFCRT2U |
| Product Model | OR2200PFCRT2U |
| Product Series | PFC Sinewave UPS |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Plug/Connector Type | NEMA 5-20P |
| Dataline Protection |
|
| EMI/RFI Noise Filter | Yes |
| Protection Type | Over Loading |
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
Warranty Information
