CyberPower CPS1220RM 120 - 120 VAC 20A Basic PDU (CPS1220RM)
(No reviews yet)
Write a Review
- SKU:
- 18143798
- MPN:
- cps-1220rm
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/11/2025 05:09:00 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 4 | and pay only $125.64 each 125.64 |
| Buy 5 or above | and pay only $123.59 each 123.59 |
- Stock Update:
- 12/11/2025 05:09:00 AM PST
Description
This item is brand-new, factory sealed.

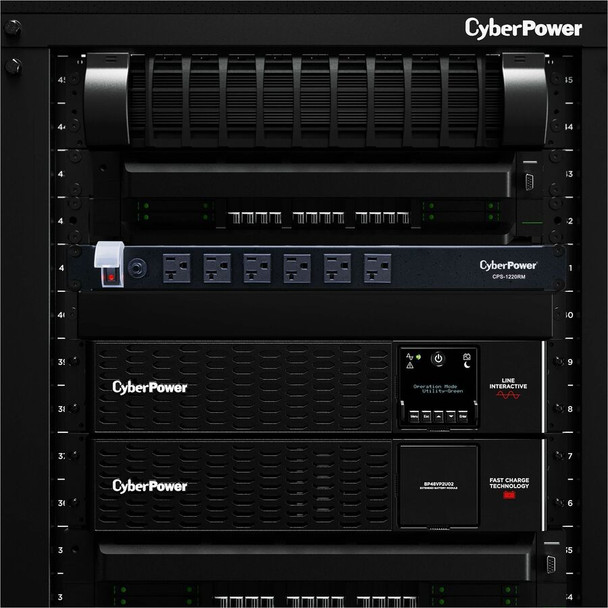

The CyberPower Power Distribution Unit (PDU) provides additional outlets for your rackmount power needs. The 1220RM offers 12 (twelve) 20A outlets (6 front, 6 rear-mount) the 19 inch 1U case. The rugged metal housing can withstand the most demanding environments, and a 15 ft cord ensures compatibility for most rackmount applications. Also note that CyberPower PDUs can be wall mounted, desktop, or under-cabinet mounted for use in retail, security, POS, telecommunications, networking, audio/video displays, or anywhere else dedicated power distribution is needed.Package Contents:
- CPS-1220RM Unit
- Warranty Card/Manual
Features
UL Listed:
Yes
Physical Dimensions - (WxHxD) (cm) : 43.82 x 4.45 x 12.07 (cm) Physical Dimensions - (WxHxD) (in) : 17.25 x 1.75 x 4.75 (in) Physical Dimensions - (WxHxD) (mm) : 438 x 44 x 121 (mm) Weight (kg) : 2.72 Weight (lb) : 6 Shipping Dimensions - (WxHxD) (cm) : 20.32 x 5.72 x 55.25 (cm) Shipping - Dimensions (WxHxD, in) : 8.0 x 2.25 x 21.75 (in) Shipping - Dimensions (WxHxD, mm) : 203.2 x 57.15 x 552.45 (mm) Shipping - Weight (kg) : 10.09 Shipping - Weight (lb) : 22.25 Circuit Breaker : 20 A Cord Length : 15 ft (4.6 m) Input Plug Type : NEMA 5-20P Maximum Input Current : 20A Nominal Input Voltage : 120 VAC Plug Style : Straight Switch : Lighted On/Off Nominal Output Voltage : 120 - 120 VAC Outlets - Front : 6 Outlets - Rear : 6 Outlets - Total : 12 Outlet Type COMPUTED : 12 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Clamping Voltage : 800V (H-N) Clamping Voltage : 800V (H-N) Color : Black Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL Recognized|UL 498A|UL1449 4th Edition|cUL Product Warranty : 3 Year Limited Warranty
Yes
Data Center
Restriction of Hazardous Substances (RoHS)
China
Yes
Package Contents:
- CPS1220RM
- Warranty Card/Manual
Certifications & Standards:
- UL Recognized
- UL 498A
- UL1449 4th Edition
- cUL
Additional Information:
Environmentally Friendly:
Yes
Application/Usage:
Data Center
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Rating (VA) | 1800 VA |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Form Factor | Rack |
| Weight (Approximate) | 6 lb |
| Cord Length | 15 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Number of Cord/Cable | 1 |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.3" |
| Rack Height | 1U |
| Depth | 4.8" |
| Warranty | |
| Additional Warranty Information | CyberPower stands behind its products with an industry-leading 3 year warranty. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge. |
| Limited Warranty | 3 Year |
| Parts Warranty/Labor | 3 Year Parts & Labor |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower CPS1220RM, a 12-outlet (6 front, 6 rear) rackmount power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1220RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is ETL/RoHS certified. A three-year warranty covers the CPS1220RM for three years for as long as you own the product. More from the Manufacturer |
| Product Type | PDU |
| Product Name | CPS1220RM 120 - 120 VAC 20A Basic |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CPS-1220RM |
| Product Model | CPS-1220RM |
| Technical Information | |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 12 x NEMA 5-20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-20P |
| PDU Type | Basic |
| Locking Receptacles | Cord Retention Tray |
| Protection Type |
|
| Environmental Conditions | |
| Maximum Storage Temperature | 113°F (45°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
