cyberpower systems
CyberPower Rackmount CPS-1220RMS 20A Surge Protector (CPS1220RMS)
(No reviews yet)
Write a Review
- SKU:
- 18143803
- MPN:
- cps-1220rms
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL, MS, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/09/2025 03:25:32 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 9 | and pay only $113.08 each 113.08 |
| Buy 10 or above | and pay only $107.79 each 107.79 |
- Stock Update:
- 12/09/2025 03:25:32 AM PST
Description
This item is brand-new, factory sealed.

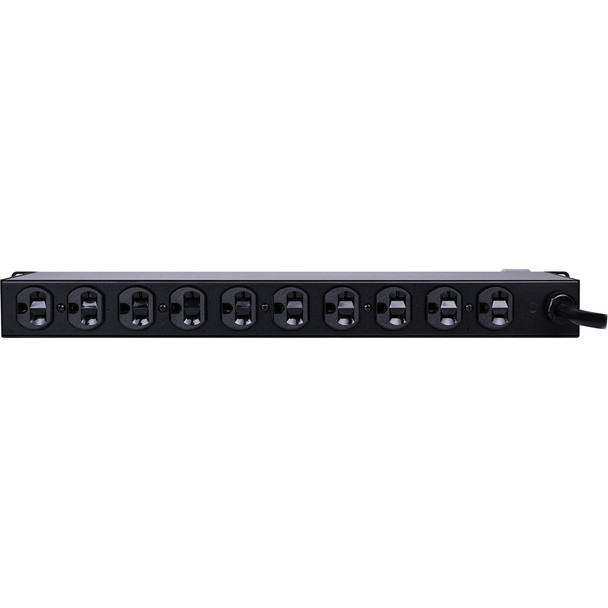

The CyberPower 1220RMS offers the combined functionality of both a Power Distribution Unit (PDU) and Surge Suppressor. Providing additional outlets for your rackmount power needs, this model also offers 1800 Joules of surge/ protection. The 1220RMS offers 12 (twelve) 20A outlets (2 front, 10 rear-mount) in the 19 inch 1U case. The rugged metal housing can withstand the most demanding environments, and a 15 ft cord ensures compatibility for most rackmount applications. Also note that CyberPower PDUs can be wall mounted, desktop, or under-cabinet mounted for use in retail, security, POS, telecommunications, networking, audio/video displays, or anywhere else dedicated power distribution is needed.
Features
Certifications & Standards:
Physical Dimensions - (WxHxD) (cm) : 43.82 x 4.45 x 12.07 (cm) Physical Dimensions - (WxHxD) (in) : 17.25 x 1.75 x 4.75 (in) Physical Dimensions - (WxHxD) (mm) : 438 x 44 x 121 (mm) Weight (kg) : 2.72 Weight (lb) : 6 Shipping Dimensions - (WxHxD) (cm) : 25.4 x 5.72 x 51.13 (cm) Shipping - Dimensions (WxHxD, in) : 10.0 x 2.25 x 20.13 (in) Shipping - Dimensions (WxHxD, mm) : 254.0 x 57.15 x 511.3 (mm) Shipping - Weight (kg) : 9.47 Shipping - Weight (lb) : 20.88 Circuit Breaker : 20 A Cord Length : 15 ft (4.6 m) Input Plug Type : NEMA 5-20P Maximum Input Current : 20A Nominal Input Voltage : 120 VAC Plug Style : Straight Switch : Lighted On/Off Nominal Output Voltage : 120 VAC Outlets - Front : 2 Outlets - Rear : 10 Outlets - Total : 12 Outlet Type COMPUTED : 12 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Clamping Voltage : 800V (H-N) EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Surge Suppression (Joules) : 1800 J Clamping Voltage : 800V (H-N) EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Surge Suppression (Joules) : 1800 J Color : Black Cord Retention Tray/Cord Organizers : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL Recognized CEG Amount : $0 Connected Equipment Guarantee : No Product Warranty : 3 Year Limited Warranty
Network Device
Restriction of Hazardous Substances (RoHS)
UL Recognized
Additional Information:
Application/Usage:
Network Device
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Clamp Voltage | 800 V |
| Surge Energy Rating | 1800 J |
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 6 lb |
| Product Color | Black |
| Power Cord/Cable Length | 15 ft |
| Height | 1.8" |
| Color Family | Black |
| Width | 17.3" |
| Rack Height | 1U |
| Depth | 4.8" |
| Warranty | |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <ul><li>Power On (Yellow)</li><li>Ground (Green)</li><li>Surge (Red)</li></ul> |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Engineered for the most demanding applications, the professional-grade Rackbar™ Surge Protector CPS1220RMS from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS1220RMS also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (2 front, 10 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS1220RMS has a 1U racksize and can be mounted horizontally. Features of the CPS1220RMS include an EMI/RFI noise filter, industrial-grade metal housing, a 15 ft. power cord. The CPS1220RMS also comes with a three-year limited warranty. More from the Manufacturer |
| Product Type | Surge Suppressor/Protector |
| Product Name | CPS1220RMS Rackbar 12 - Outlet Surge Protector with 1800 J Surge Suppression |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CPS-1220RMS |
| Product Model | CPS1220RMS |
| Product Series | Rackbar Surge |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacles | 12 x NEMA 5-20R |
| Protection Type |
|
| Features | Overload Protection |
| Environmental Conditions | |
| Maximum Operating Temperature | 95°F (35°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
