cyberpower systems
Cyberpower Maintenance Bypass Mbp15a6 - Nema 5-15p - 6 X Nema 5-15r - 120 V Ac - 1urack-mountable (mbp15a6)
(No reviews yet)
Write a Review
- SKU:
- 18322951
- MPN:
- mbp15a6
- Availability:
- Usually ships the same or next business day. In stock at our IL, MS warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/10/2025 04:42:25 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 4 | and pay only $226.61 each 226.61 |
| Buy 5 or above | and pay only $221.54 each 221.54 |
- Stock Update:
- 12/10/2025 04:42:25 PM PST
Description
This item is brand-new, factory sealed.

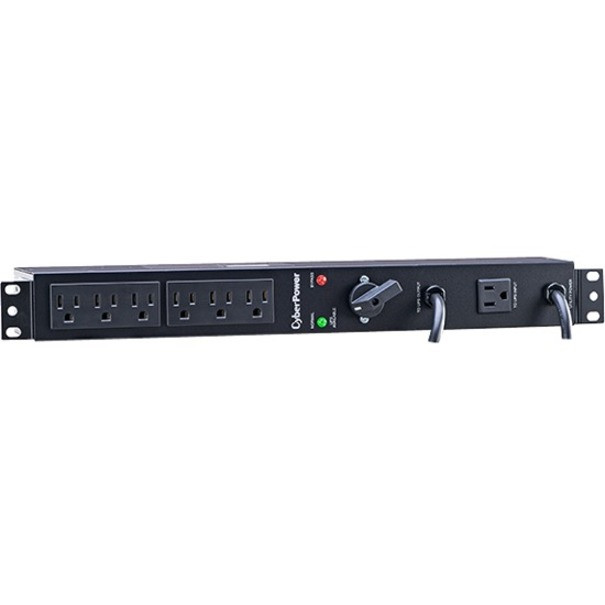

The CyberPower Maintenance Bypass PDU model MBP15A6 is designed to allow seamless transfer of an electrical load from UPS power to utility power for connected equipment. This allows connected equipment to operate seamlessly when performing maintenance, replacing batteries, or installing a new UPS. Set the unit to bypass, perform the updates and return it to normal when done.A 6ft AC cord is connected to utility power; a 3ft AC cord is connected to the output power of the UPS; the UPS draws input power from the MBP via a NEMA 5-15R. When the switch on the front of the MBP15A6 is turned, the power the MBP supplies to connected devices moves from one power source to another with the LED indicating which source is currently active. With a 1U form factor and included mounting hardware, it can fit in a server rack or be mounted to a UPS for a tower configuration.
A 3-year warranty ensures that this manual bypass switch is free of defects in design, assembly, material or workmanship.
Package Contents:
- Maintenance Bypass MBP15A6
- User's Manual
- Registration Card
- 2 x Rackmount Brackets
- 4 x M4X8L Screws
- 4 x M5X12L Screws
Features
Package Contents:
Physical Dimensions - (WxHxD) (cm) : 43.18 x 5.08 x 7.62 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 2 x 3 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 51 x 76 (mm) Weight (kg) : 1.59 Weight (lb) : 3.5 Shipping Dimensions - (WxHxD) (cm) : 24.77 x 6.99 x 50.17 (cm) Shipping - Dimensions (WxHxD, in) : 9.75 x 2.75 x 19.75 (in) Shipping - Dimensions (WxHxD, mm) : 247.65 x 69.85 x 501.65 (mm) Shipping - Weight (kg) : 9.3 Shipping - Weight (lb) : 20.5 Cord Length : 6 ft (1.8 m) Derated Input Current : 12 A Input Plug Type : 2 x NEMA 5-15P Input Voltage Range : 100 VAC - 125 VAC Maximum Input Current : 15A Outlet for UPS Input Power : NEMA 5-15R Plug to UPS Output : NEMA 5-15P Nominal Output Voltage : 120 VAC Outlets - Front : 0 Outlets - Rear : 6 Outlets - Total : 6 Outlet Type COMPUTED : 6 - NEMA 5-15R Overload Protection : None USB Charge Port : No Color : Black Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 1U UPS Cord Length : 3.3 ft Utility Cord Length : 6 ft Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : -4 - 113 °F (-20 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1|cUL Extended Warranty Option : WEXT5YR-ACC1A Product Warranty : 3 Year Limited Warranty
Yes
No
Restriction of Hazardous Substances (RoHS)
China
- Maintenance Bypass MBP15A6
- 6-ft. utility cord
- 3.3-ft. UPS cord
- 2 x Rackmount Brackets
- 4 x Flat Head Screws M4X8L
- 4 x Pan Head Screws M5X12L
- User Manual
- Registration Card
Certifications & Standards:
- cUL
- UL1778
- UL60950_1
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 20 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Weight (Approximate) | 3.50 lb |
| Cord Length | 6 ft |
| Mount Type | Rack-mountable |
| Height | 2" |
| Width | 17" |
| Rack Height | 1U |
| Depth | 3" |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower MBP15A6, a 6-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 15A output (derated to 12A) to 6 NEMA 5-15R receptacles. Designed for datacenters and other electrically demanding applications, the MBP15A6 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of the connected equipment when performing maintenance, replacing batteries, or installing a new UPS. A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP15A6 through a dedicated NEMA 5-15R separate from the outlets for connected devices. When the switch on the front of the MBP15A6 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active. Rugged, industrial-grade metal housing protects the MBP15A6. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP15A6 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product. |
| Product Type | PDU |
| Product Name | MBP15A6 120 VAC 15A Maintenance Bypass |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | MBP15A6 |
| Product Model | MBP15A6 |
| Product Series | Maintenance Bypass |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Hot-swappable |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Cyberpower Maintenance Bypass Mbp15a6 - Nema 5-15p - 6 X Nema 5-15r - 120 V Ac - 1urack-mountable (mbp15a6)
$230.08
