Description
This item is brand-new, factory sealed.
Ensure continued operation of critical devices with the CyberPower PDU24007 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

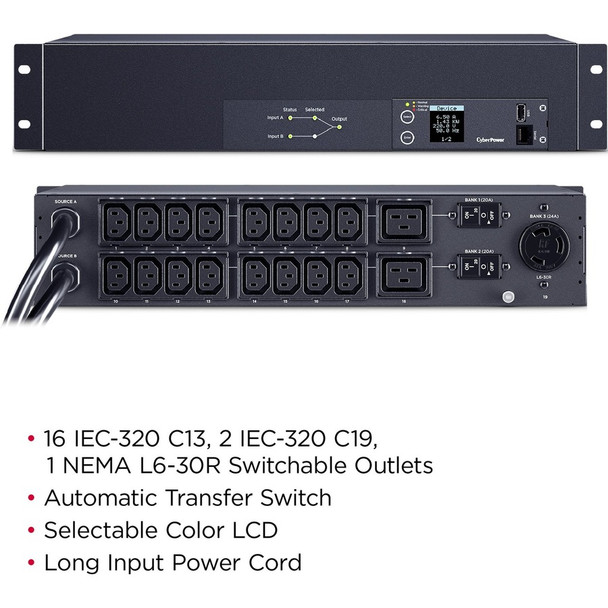

The PDU24007 supports inputs between 200-240V and includes (16) IEC C13, (2) IEC C19, and (1) NEMA L6-30R outlets. Dual NEMA L6-30P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24007 is protected by a three-year limited warranty.
Features
UL Listed:
Yes

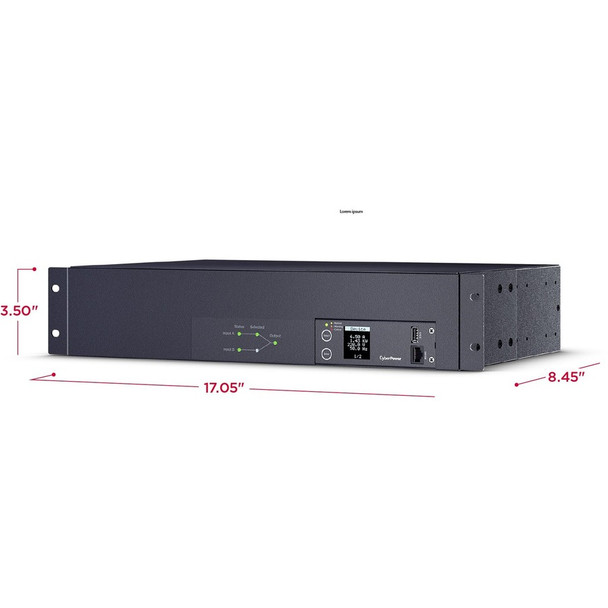

Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 215 (mm) Weight (kg) : 6.99 Weight (lb) : 15.4 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 18.49 x 39.8 (cm) Shipping - Dimensions (WxHxD, in) : 21.65 x 7.28 x 15.67 (in) Shipping - Dimensions (WxHxD, mm) : 549.91 x 184.91 x 398.02 (mm) Shipping - Weight (kg) : 8.8 Shipping - Weight (lb) : 19.4 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : 2 x NEMA L6-30P Maximum Input Current : 30A Nominal Input Voltage : 240 - 200 VAC Phase : Single Phase Plug Style : Straight Nominal Output Voltage : 240 - 200 VAC Outlet Banks : 2 Outlets - Total : 19 Outlet Type COMPUTED : 16 - IEC-320 C13 Overload Protection : 20A x 2 Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Hardware Connection Port : Serial (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 2U Rackmount Material of Construction : Metal Rack Height : 2U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 : FCC Class A : cTUVus Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
China
Yes
Certifications & Standards:
- UL62368
- FCC Class A
- cTUVus
Additional Information:
Environmentally Friendly:
Yes
Application/Usage:
Data Center
Network Closet
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Circuit Breaker | Yes |
| Output Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 15.41 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 3.5" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 2U |
| Depth | 8.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU24007 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24007 supports inputs between 200-240V and includes (16) IEC C13, (2) IEC C19, and (1) NEMA L6-30R outlets. Dual NEMA L6-30P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24007 is protected by a three-year limited warranty. |
| Product Type | PDU |
| Product Name | PDU24007 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU24007 |
| Product Model | PDU24007 |
| Product Series | Metered ATS PDU |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Metered |
| Locking Receptacles | Cord Retention Tray |
| Protection Type | Overload Protection |
| Features |
|
| Environmental Conditions | |
| Maximum Storage Temperature | 131°F (55°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
