Cyber Power Systems
CyberPower Metered ATS PDU PDU44003 17-Outlets PDU
- SKU:
- 19274972
- MPN:
- pdu44003
- Availability:
- Usually ships the same or next business day. In stock at our IL, NJ, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/30/2026 05:35:26 PM PST
- Stock Update:
- 01/30/2026 05:35:26 PM PST
Description
This item is brand-new, factory sealed.

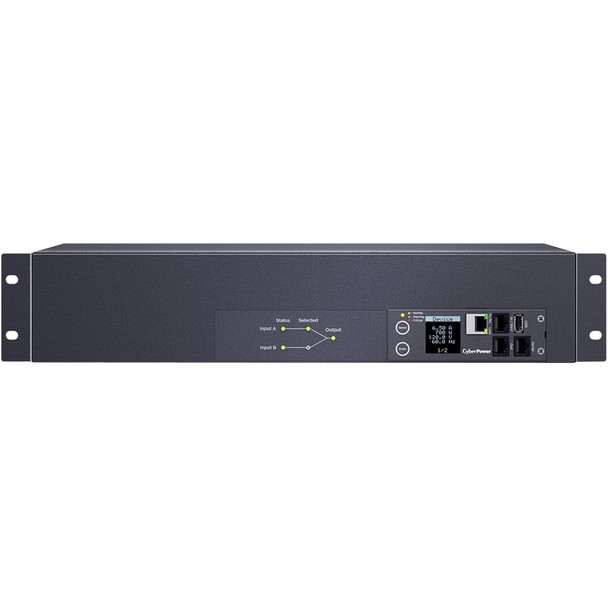

Ensure continued operation of critical devices with the CyberPower PDU44003 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.
The PDU44003 supports inputs between 100-120V and includes (16) NEMA 5-20R and (1) L5-30R outlets. Dual NEMA L5-30P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44003 is protected by a three-year limited warranty
Features
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 17.59 lb |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 3.5" |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 2U |
| Depth | 8.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU44003 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44003 supports inputs between 100-120V and includes (16) NEMA 5-20R and (1) L5-30R outlets. Dual NEMA L5-30P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44003 is protected by a three-year limited warranty |
| Product Type | PDU |
| Product Name | Metered ATS PDU PDU44003 17-Outlets PDU |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU44003 |
| Product Model | PDU44003 |
| Product Series | Metered ATS PDU |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA L5-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| PDU Type | Metered |
| Protection Type | Overload Protection |
| Management | |
| Management | <ul> <li>IPv4</li> <li>TCP/IP</li> <li>UDP</li> <li>SNMPv1</li> <li>HTTP</li> <li>NTP</li> <li>DNS</li> <li>Telnet</li> <li>DHCP</li> <li>SMTP</li> <li>FTP</li> <li>IPv6</li> <li>SNMPv3</li> <li>HTTPs</li> <li>SSH</li> <li>SSL</li> <li>TLS</li> <li>LDAP(S)</li> <li>RADIUS</li> <li>Syslog</li> <li>CLI</li> <li>Windows AD</li> </ul> |
