cyberpower systems
Cyberpower Metered Pdu15m2f10r 12-outlets Pdu - 12 X Nema 5-15r - 1u Rack-mountable, Zero U Vertical Rackmount
(No reviews yet)
Write a Review
- SKU:
- 18330770
- MPN:
- pdu15m2f10r
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/11/2025 09:09:09 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $141.95 each 141.95 |
- Stock Update:
- 12/11/2025 09:09:09 AM PST
Description
This item is brand-new, factory sealed.

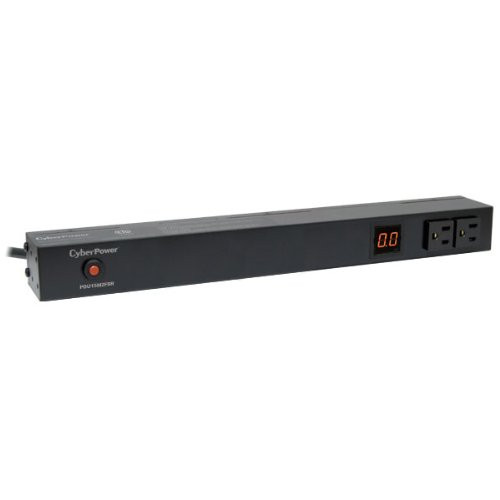

The CyberPower Metered PDU15M2F10R 12-Outlets PDU provides 120V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Package Contents:
- Metered PDU15M2F10R 12-Outlets PDU
- Cord Retention Tray
Features
Package Contents:
Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm) Weight (kg) : 1.81 Weight (lb) : 4 Shipping Dimensions - (WxHxD) (cm) : 15.39 x 6.99 x 51.44 (cm) Shipping - Dimensions (WxHxD, in) : 6.06 x 2.75 x 20.25 (in) Shipping - Dimensions (WxHxD, mm) : 153.92 x 69.85 x 514.35 (mm) Shipping - Weight (kg) : 9.53 Shipping - Weight (lb) : 21.0 Cord Length : 15 ft (4.6 m) Derated Input Current : 12 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Plug Style : Straight Meter Readout : Amperage Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 2 Outlets - Rear : 10 Outlets - Total : 12 Outlet Type COMPUTED : 12 - NEMA 5-15R Overload Protection : 15A USB Charge Port : No Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 certified by ETL Product Warranty : Limited Lifetime Warranty
Yes
No
Restriction of Hazardous Substances (RoHS)
- PDU15M2F10R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Weight (Approximate) | 4 lb |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Mounting Orientation | Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 2.3" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower PDU15M2F10R, a 12-outlet (2 front, 10 rear), rackmount metered power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, the PDU15M2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU15M2F10R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. |
| Product Type | PDU |
| Product Name | PDU15M2F10R 100 - 125 VAC 15A Metered |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU15M2F10R |
| Product Model | PDU15M2F10R |
| Product Series | Metered PDU |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Metered |
| Protection Type | Overload Protection |
