CyberPower New Smart App Sinewave UPS PR3000RTXL2UHVACN 3000VA Tower/rack convertible UPS
(No reviews yet)
Write a Review
- SKU:
- 20899461
- MPN:
- pr3000rtxl2uhvacn
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, NJ warehouses.
- Shipping:
- $315.79 (Fixed Shipping Cost)
- Stock Update:
- 02/09/2026 08:49:37 AM PST
- Stock Update:
- 02/09/2026 08:49:37 AM PST
Description
This item is brand-new, factory sealed.
The PR3000RTXL2UHVACN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

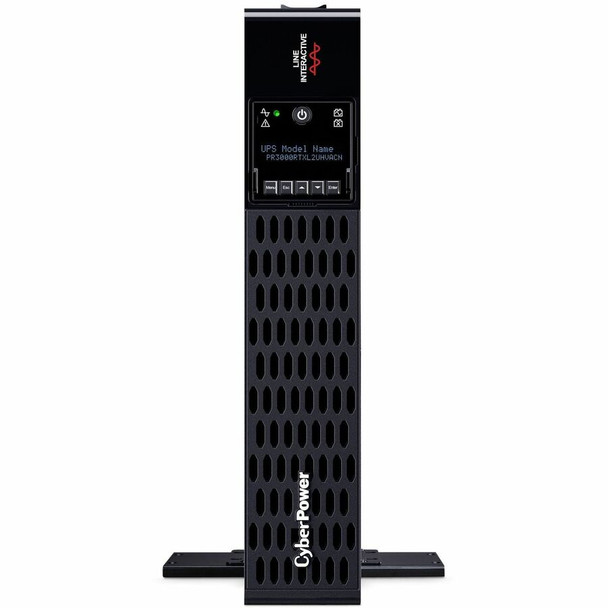

The Smart App Sinewave PR3000RTXL2UHVACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UHVACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UHVACN.
Features
Certifications & Standards:
Active PFC Compatible : Yes Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 8 Battery Size : 12 V / 5.7 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U03 Hot Swappable : Yes Replacement Battery Cartridge : RB1260X8 Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3.6 min Runtime at Half Load : 10.7 min Typical Recharge Time : 3 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 62.99 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 24.8 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 630 (mm) Weight (kg) : 39.69 Weight (lb) : 87.5 Shipping Dimensions - (WxHxD) (cm) : 57.4 x 27.43 x 76.45 (cm) Shipping - Dimensions (WxHxD, in) : 22.6 x 10.8 x 30.1 (in) Shipping - Dimensions (WxHxD, mm) : 574.04 x 274.32 x 764.54 (mm) Shipping - Weight (kg) : 48.53 Shipping - Weight (lb) : 107 Adjustable Voltage Range : 151 - 302 VAC Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA L6-20P Input Voltage : 200 - 240 VAC Input Voltage Range : 131 VAC - 302 VAC Nominal Input Voltage : 200 - 240 VAC Plug Style : Straight (Twist Lock) Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 200/208/220/230/240 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 6 Outlets - Critical Load : 2 Outlets - Total : 6 Outlet Type COMPUTED : 4 - NEMA 6-20R Output Power Factor : 1 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 6ms; Max 13ms at normal sensitivity USB Charge Port : No VA : 3000 VA Watts : 3000 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1m from surface of unit : 57.5 dBA Online Thermal Dissipation : 192.5 BTU/hr Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL 1778 CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Yes
Restriction of Hazardous Substances (RoHS)
- UL 1778
- FCC Class A
- CSA C22.2 No 107.3
- CE
- VCCI
Additional Information:
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Load Capacity (Watt) | 3000 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Voltage Range |
|
| Input Voltage | 230 V |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 3000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 87.50 lb |
| Product Color | Black |

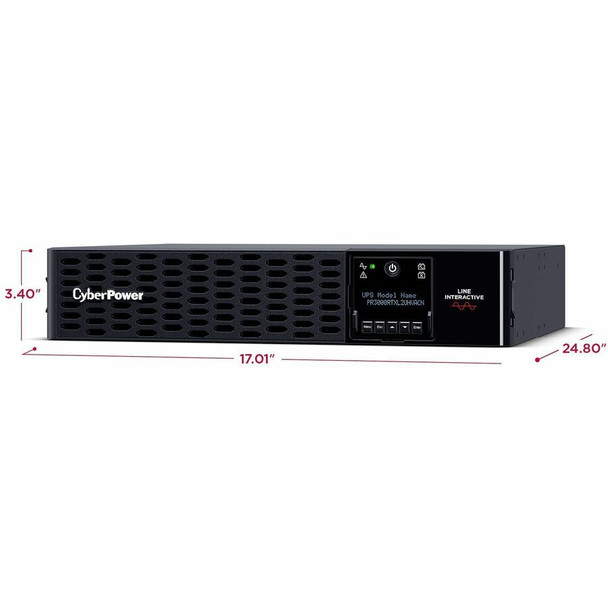

| Height | 3.4" |
| Color Family | Black |
| Width | 17.1" |
| Depth | 24.8" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <p><b>LCD Indicators:</b></p><ul><li> UPS Stats</li><li> UPS Setup</li><li> Control Management</li><li> Testing Options</li></ul><p><b>LED Indicators:</b></p><ul><li> Power On</li><li> Line Mode</li><li> Battery Mode</li><li> Fault</li><li> UPS Fault</li></ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Number of Batteries | 8 |
| Battery Capacity | 5700 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 10.70 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The PR3000RTXL2UHVACN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR3000RTXL2UHVACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UHVACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UHVACN. |
| Product Type | Line-interactive UPS |
| Product Name | PR3000RTXL2UHVACN Smart App Sinewave UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR3000RTXL2UHVACN |
| Product Model | PR3000RTXL2UHVACN |
| Product Series | New Smart App Sinewave UPS |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|

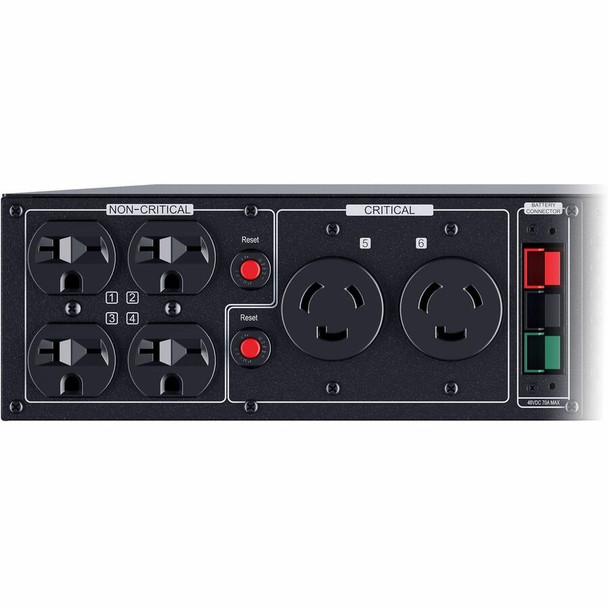

| Number of Critical Load Outlets | 2 |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 6 |
| Surge Suppression | Yes |
| Transfer Time | 13 ms |
| Energy Saving | GreenPower UPS Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L6-20P |
| Cord Length | 10 ft |
| Application/Usage |
|
| Features | Audible Alarm |
| AVR | Yes |
| Management | |
| Network Management |
|
| Alarm |
|
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Operating Humidity | 0% - 95% |
| Thermal Dissipation | 56.42 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 49213 ft |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower New Smart App Sinewave UPS PR3000RTXL2UHVACN 3000VA Tower/rack convertible UPS
$2,806.22
