cyberpower systems

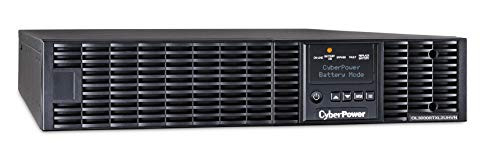

CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems

(No reviews yet) Write a Review
SKU:
18255454
MPN:
ol3000rtxl2uhvn
Availability:
Usually ships in 1-2 business days. In stock at our IL warehouse.
Shipping:
Calculated at Checkout
Stock Update:
12/24/2025 07:08:59 PM PST
$2,827.95
Stock Update:
12/24/2025 07:08:59 PM PST

Description



This item is brand-new, factory sealed.

CyberPower OL3000RTXL2UHVN Smart App Online Double-Conversion UPS, 3000VA/2700W, 208/240V, 2U Rack/Tower Plus Pre-Installed RM Card
  • 3000VA/2700W, Double Conversion Online Battery Backup Uninterruptible Power Supply (UPS) System - designed to safeguard mission-critical servers, applications, and network equipment. A factory installed RM205CARD allows remote management and configuration
  • 3 outlets: (2) NEMA L6-20R, (1) NEMA L6-30R - input: NEMA L6-20P plug with 10 foot cord
  • OPTIONAL EXTENDED BATTERY MODULES (BP72V60ART2U) can increase run times - EXTENDABLE LCD CONTROL PANEL displays UPS status and supports multi-language interface, 25 Types of Function Setting, 24 Types of read out and 5 event logs
  • Fast charge technology: allows ups batteries to return to 100% capacity more rapidly by utilizing a built-in charger module Inside each extended battery Module. Restores to 100% within 5 hours.
  • 3-Year - including the batteries, $400, 000 connected equipment and free powerpanel business edition management software (download)

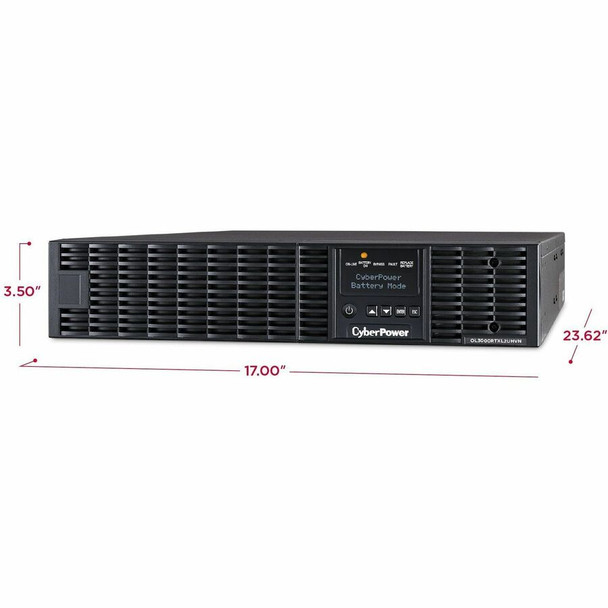

  • Product Dimensions: 23.6 x 17 x 3.5 inches
  • Item Weight: 81 pounds

The CyberPower OL3000RTXL2UHVN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode. The OL3000RTXL2UHVN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output. With a $400, 000 lifetime connected equipment and a three-year , you can trust CyberPowers commitment to high quality.



Package Contents:
  • Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
  • User Manual
  • Registration Card
  • 2 x Rackmount Rails
  • 2 x Rackmount Ears
  • 2 x Hanging Brackets
  • Phone Line
  • USB Communication Cable
  • Serial Interface Cable (RS-232)
  • 8 x M5X7L Black Flat Head Screws
  • 12 x M5X12L Black Pan Head Screws
  • 6 x M5X6L Silver Pan Head Screws
  • 8 x Plastic Washers
  • 12 x Screw Hole Dust Covers
  • 12 x Rubber Pads
  • Software Download Card

Features

Package Contents:
  • Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
  • User Manual
  • Registration Card
  • 2 x Rackmount Rails
  • 2 x Rackmount Ears
  • 2 x Hanging Brackets
  • Phone Line
  • USB Communication Cable
  • Serial Interface Cable (RS-232)
  • 8 x M5X7L Black Flat Head Screws
  • 12 x M5X12L Black Pan Head Screws
  • 6 x M5X6L Silver Pan Head Screws
  • 8 x Plastic Washers
  • 12 x Screw Hole Dust Covers
  • 12 x Rubber Pads
  • Software Download Card



Certifications & Standards:
UL 1778



Additional Information:
  • Replacement Battery Cartridge Quantity: 1
  • Smart Battery Management (SBM) Mode: Yes
  • Circuit Breaker: 20A
  • Cold Start: Yes
  • Input Power Factor: 0.99
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • Nominal Output Voltage: 200 - 240 VAC
  • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
  • Output Power Factor: 0.9
  • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
  • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Dry Contacts: Yes
  • Expansion Slot: Yes - RMCARD205 pre-installed
  • LCD: Multifunction LCD
  • Management Cable: USB Cable
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Upgradeable firmware: Yes
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • ECO Mode Thermal Dissipation: 207 BTU/hr



Environmentally Friendly:
Yes



Software Included:
PowerPanel® Business



Energy Star:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
Philippines



Specs

Power Description
Load Capacity (Watt)2700 W
Input Frequency
  • 40 Hz
  • 70 Hz
Output Power Factor0.9
Surge Energy Rating445 J
Input Power Factor0.99
Input Voltage Range
  • 120 V AC - 139 V AC
  • 200 V AC - 240 V AC
Input Voltage
  • 120 V AC
  • 230 V AC
Output Voltage
  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC
Load Capacity (VA)3000 VA
Waveform TypeSine Wave
Output Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form FactorRack/Tower
Weight (Approximate)68.20 lb
Product ColorBlack
Height3.5"
Color FamilyBlack
Width17"
Rack Height2U
Depth23.6"
Warranty
Directly Connected Equipment Guarantee$400000 Lifetime
Limited Warranty3 Year
Controls/Indicators
Status Indicators<ul> <li>Power On (white)</li> <li>Line Mode (green)</li> <li>Battery Mode (yellow)</li> <li>Bypass Mode (yellow)</li> <li>Fault (red)</li> <li>Replace Battery (red)</li> </ul>
Battery Information
Backup/Run Time (Full Load)4 Minute
Number of Batteries6
Battery Capacity9000 mAh
DC System Voltage12 V DC
Replaceable BatteryYes
Battery ChemistryLead Acid
Battery Size12V
Backup/Run Time (Half Load)12.50 Minute
Typical Battery Recharge Time4 Hour
Battery CharacteristicsSealed
Display & Graphics
DisplayLCD
General Information
Brand NameCyberPower
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Marketing InformationPrevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL3000RTXL2UHVN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL3000RTXL2UHVN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
Product TypeDouble Conversion Online UPS
Product NameOL3000RTXL2UHVN Smart App Online UPS Systems
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberOL3000RTXL2UHVN
Product ModelOL3000RTXL2UHVN
Product SeriesSmart App Online UPS
Technical Information
Receptacle Type
  • NEMA L6-20R
  • NEMA L6-30R
Receptacle Detail
  • 2 x NEMA L6-20R
  • 1 x NEMA L6-30R
EMI/RFI Noise FilterYes
Transfer Time0 ns
Crest Factor3:1
Energy SavingECO Mode Efficiency >97%
Overload ProtectionYes
Plug/Connector TypeNEMA L6-20P
Cord Length10 ft
Circuit Breaker Current Rating16 A
Dataline Protection
  • RJ-11
  • RJ-45
Protection TypeShort Circuit
Application/Usage
  • Server
  • Network Device
  • Lab Equipment
  • Electronic Device
  • High-end System Component
  • Edge Computing
  • PBX System
  • VoIP
  • Mission Critical Equipment
  • Generator
Management
Network Management
  • Dry Contact
  • Relay Card
  • SNMP/HTTP/CLI Remote Monitoring
Alarm
  • Battery Mode
  • Low Battery
  • Overload
  • UPS Fault
Interfaces/Ports
USBYes
EPO PortYes
Serial PortYes
USB (HID Compliant) PortYes
Environmental Conditions
Operating Humidity0% - 90%
Thermal Dissipation231.53 W
Storage Relative Humidity0% - 95%
Maximum Storage Elevation50000 ft
Sound Emission (A-Weighted)55 dB(A)
Maximum Operating Temperature104&deg;F (40&deg;C)
Storage Temperature-4&deg;F (-20&deg;C) - 113&deg;F (45&deg;C)
Maximum Operating Elevation10000 ft
