cyberpower systems
CyberPower OL6KRTHD Smart App Online UPS Systems (OL6KRTHD)
(No reviews yet)
Write a Review
- SKU:
- 21363753
- MPN:
- ol6krthd
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/08/2026 12:50:08 AM PST
- Stock Update:
- 02/08/2026 12:50:08 AM PST
Description
This item is brand-new, factory sealed.
CyberPower OL6KRTHD Smart App Online UPS System, 6000VA/6000W, Double Conversion, 2U Rack/Tower, RMCARD205 Pre-Installed- 6000VA/6000W smart app online sinewave battery backup Uninterruptible power supply (ups) system - uses sine wave output to support active PFC and conventional power supplies. Snap/HTTP remote monitoring available with preinstalled Rmcard205.
- 2 NEMA L6-20R and 2 NEMA L6-30R outlets provide critical load protection to safeguard mission-critical servers, applications, and network equipment. Input: hardwire with a NEMA l6-30p power cord option with a 10-foot power cord.
- Space saving design allows the OL6KRTHD to be configured into 2U of rack space or as a tower. While its advanced BATTERY EQUALIZATION TECHNOLOGY maintains the voltages of the batteries at the same level to increase the battery life. The FAST CHARGE TECHNOLOGY allows the UPS batteries to return to full capacity faster by using a built-in charger inside of the UPS.
- Full matrix LCD control panel - auto-rotating, multi-function Color LCD screen clearly shows status of UPS and power (Green for normal, Yellow for warning, and red for power FAILURE and fault notices). LCD provides ups status, controls, most recent event logs, and diagnostics.
- 3-Year including the battery, connected equipment

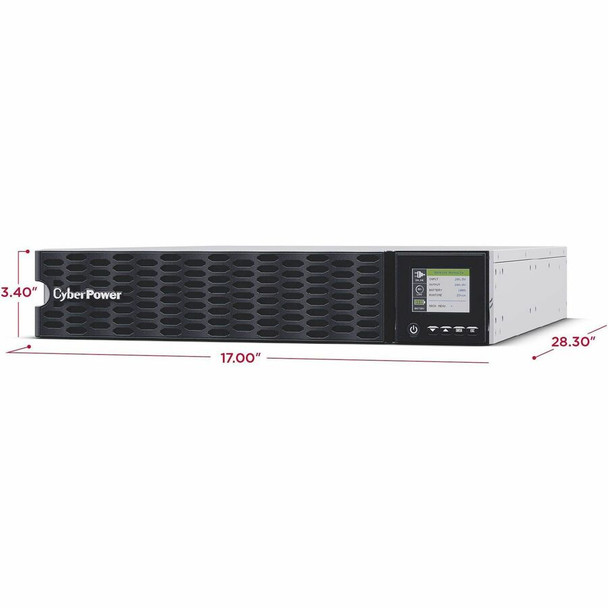

- Product Dimensions: 28.3 x 17 x 3.4 inches
- Item Weight: 92.4 pounds
The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205. For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration. The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise. The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, its all backed by a three-year (including batteries) and a $300, 000 Connected Equipment .
Package Contents:
- Smart App Online OL6KRTHD 6KVA Tower/Rack Convertible UPS
- Mounting Hardware
Features
Package Contents:
UL1778 5th Ed
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- Smart App Online OL6KRTHD 6000VA Rack/Tower UPS
- Mounting Hardware
- NEMA L6-30P Power Cord
Certifications & Standards:
UL1778 5th Ed
Additional Information:
- Energy Saving: Yes - ECO Mode Efficiency >96%
- Battery Equalization Technology: Yes
- Smart Battery Management (SBM) Mode: Yes
- Cold Start: Yes
- Backfeed Protection: Yes
- Input Power Factor: 0.99
- Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load
- Short Circuit Protection: UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
- Rated Power Factor: 1
- Crest Factor: 3:1
- Bypass: Internal Bypass (Automatic and Manual)
- ECO Mode Bypass Voltage Range: ±10%, ±15% (Configurable)
- Auto Rotatable LCD Control Panel Option: Yes
- Removable LCD Control Panel Option: No
- Dry Contacts: No
- Management Software: PowerPanel @ Business Edition
- Enclosure Construction: Steel
- Input Voltage Range: 120-139VAC for 0-25% Load
- Plug Type: Hardwire with NEMA L6-30P Power Cord Option
- Crest Factor: 3:1
- Operating Relative Humidity: 0% - 90% non condensing
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Overload Protection:
Line Mode:
- 105~125% Load for 1 min
- 126~150% Load for 10 sec
Battery Mode:
- 105~130% Load for 10 sec
- 131~150% Load for 2 sec
Environmentally Friendly:
Yes
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Load Capacity (Watt) | 6000 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Power Factor | 0.99 |
| Input Voltage Range |
|
| Input Voltage |
|
| Output Voltage |
|
| Load Capacity (VA) | 6000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 92.40 lb |
| Product Color | Black |
| Height | 3.4" |
| Color Family | Black |
| Width | 17" |
| Rack Height | 2U |
| Depth | 28.3" |
| Warranty | |
| Directly Connected Equipment Guarantee | $300000 Lifetime |
| Additional Warranty Information | Backed by a three-year warranty (including batteries) |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <ul> <li>LED Indicators: Power On (White)</li> </ul> <p><b>Multi-Function Color TFT-LCD Readout that Supports:</b></p> <ul> <li>15 x Types of UPS status</li> <li>7 x Types of Controls</li> <li>20 x Types of Set Up</li> <li>12 x Event Logs</li> <li>11 x Types of About</li> <li>4 x Types of Diagnostics</li> </ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 2.40 Minute |
| Number of Batteries | 12 |
| Battery Capacity | 5700 mAh |
| DC System Voltage | 12 V DC |
| Replaceable Battery | No |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 6.20 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205. For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration. The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise. The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee. More from the Manufacturer |
| Product Condition | New |
| Product Type | Double Conversion Online UPS |
| Product Name | OL6KRTHD Smart App Online UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL6KRTHD |
| Product Model | OL6KRTHD |
| Product Series | Smart App Online UPS |
| Product Line | Smart App Online |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Energy Saving | ECO Mode Efficiency >96% |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 10 ft |
| Circuit Breaker Current Rating | 50 A |
| Efficiency | 96% |
| EMI/RFI Noise Filter | Yes |
| Protection Type |
|
| Transfer Time | 0 ns |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Operating Humidity | 0% - 90% |
| Thermal Dissipation | 383.04 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 50000 ft |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
CyberPower OL6KRTHD Smart App Online UPS Systems (OL6KRTHD)
$5,759.95
